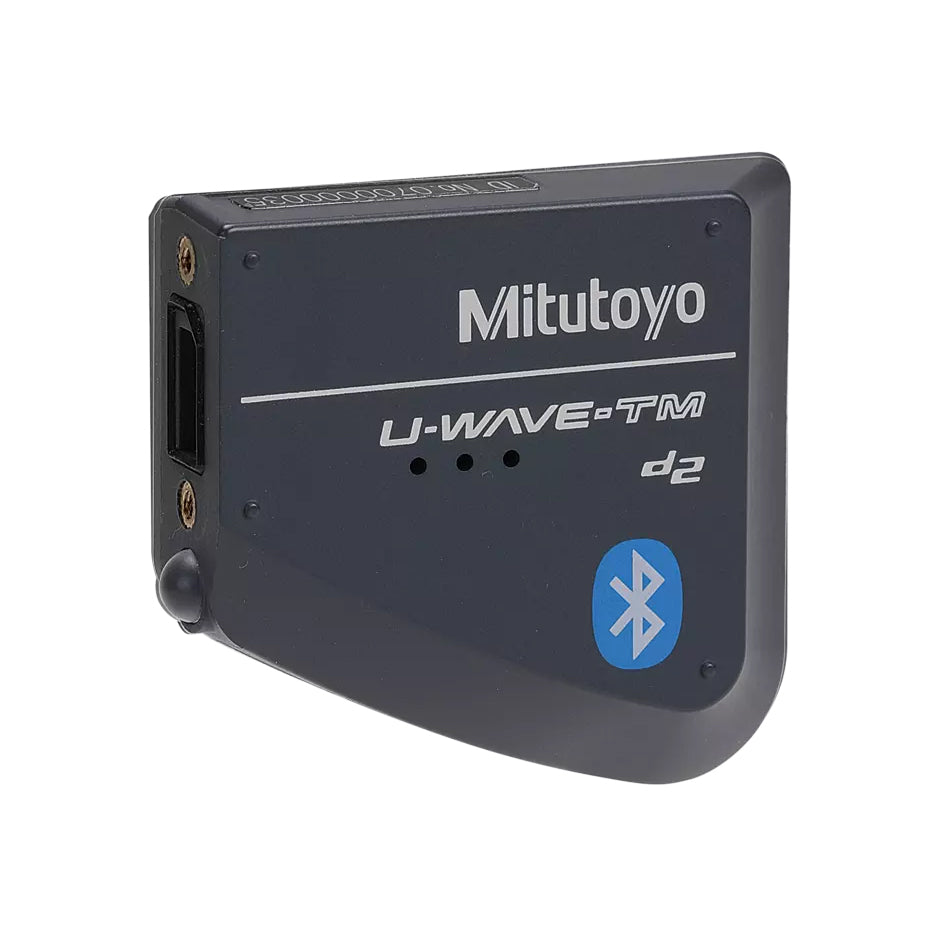

Mitutoyo 264-627 U-WAVE-TMB Transmitter for Micrometer & ID-C NX indicators up to 12.7mm
SKU:Code: 264-627
Sale
Sold out
Regular price
£200.00
Save: 17%
Sold out
Sale price
£200.00
Regular price
£242.00
Excl. VAT
Bluetooth U-WAVE fit Wireless Communication System
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- type U-WAVE-T Transmitters
description
description
| Model: |
U-WAVE-TMB: Buzzer type
|
| Power supply: |
Battery CR2032 x 1 pcs.
|
| Wireless communication protocol: |
Bluetooh 4.2 Low Energy
|
| Modulation method: |
FH-SS (Frequency Hopping Spread Spectrum Method))
|
| Type: |
U-WAVE-TMB
(U-WAVE fit Bluetooth) |
| Data reception indication: |
Buzzer and LED
(green, red, orange) |
| Communication distance: |
Approx.16 m (within visible range), 10 m (factory environment)
|
| Communication with measuring tool: |
Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
|
| Communication frequency: |
2,4 GHz band
|
| Transmission output: |
3,2 mW (5 dBm) or below (class 2)
|
| OS compatibility: |
Windows 10, Android, iOS
|
| Battery life: |
WIN 10: approx. 3 month
|
| Dimensions (WxDxH): |
41.9 x 38.8 x 12.9 mm
|
| Remarks: |
Standard
|
| Delivered: |
Including screwdriver, CR 2032 battery, key for battery case
|
| Mass: |
20 g
|
