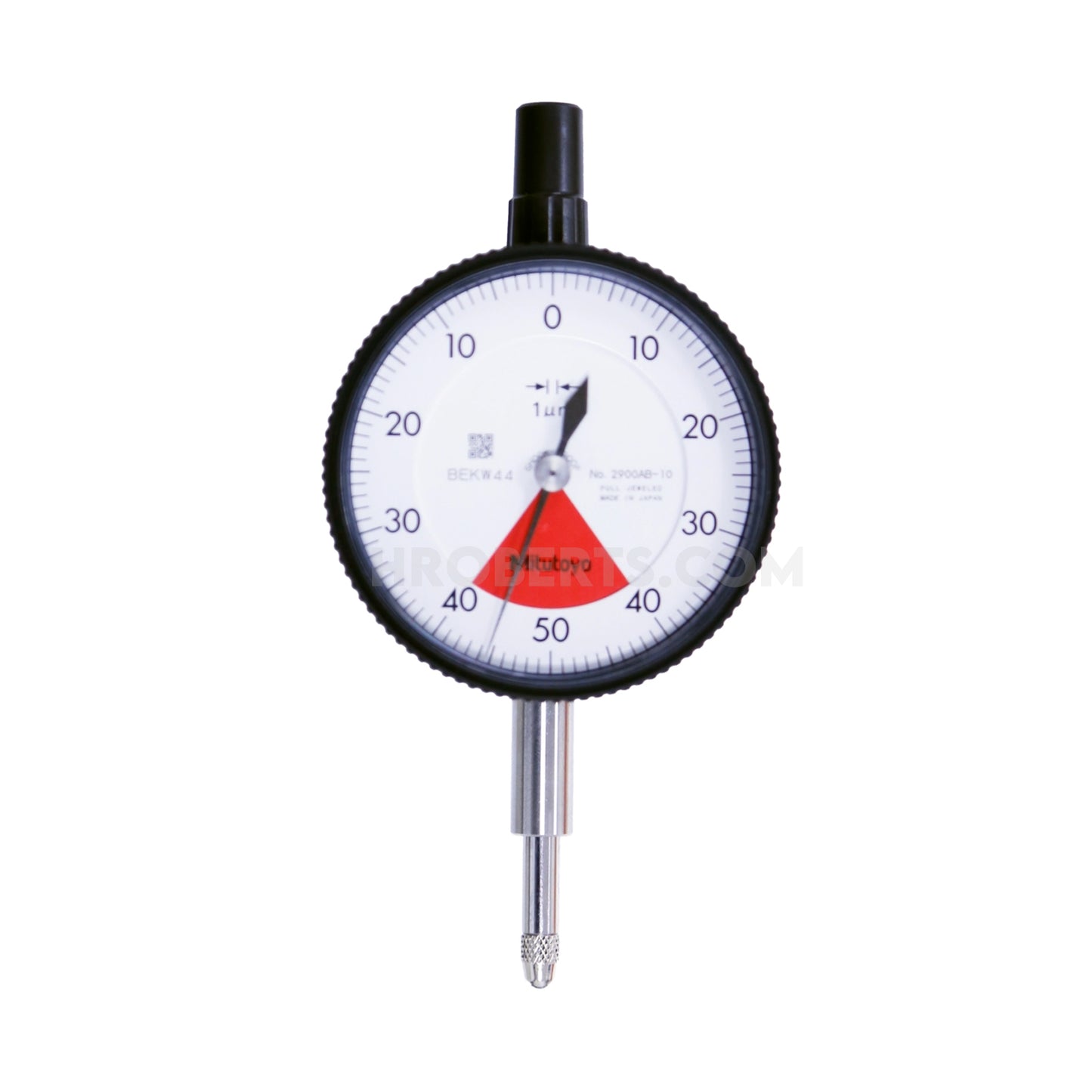

Mitutoyo 2900A-10 Dial Indicator, One Revolution, Graduation 0.001mm, Range 0.08mm, Scale 40-0-40, Bezel Diameter 57mm
SKU:Code: 2900A-10
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Dial Indicator
- range 0.08mm
- range rev 0.1mm
- display type Non-Digital
- graduations 0.001mm
- bezel dia 57mm
- measuring force 1.4 N or Less
- measuring units Metric
- stem dia 8mm
- remarks Dial Gauge Series 2
- scale 40-0-40
- contact point thread M2.5 x 0.45
- back Centre Lug
- brand Mitutoyo
Dial indicators ideal for restricted-space applications in gauging jigs. Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed” The bezel clamp 21AZB148, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools.
