Mitutoyo

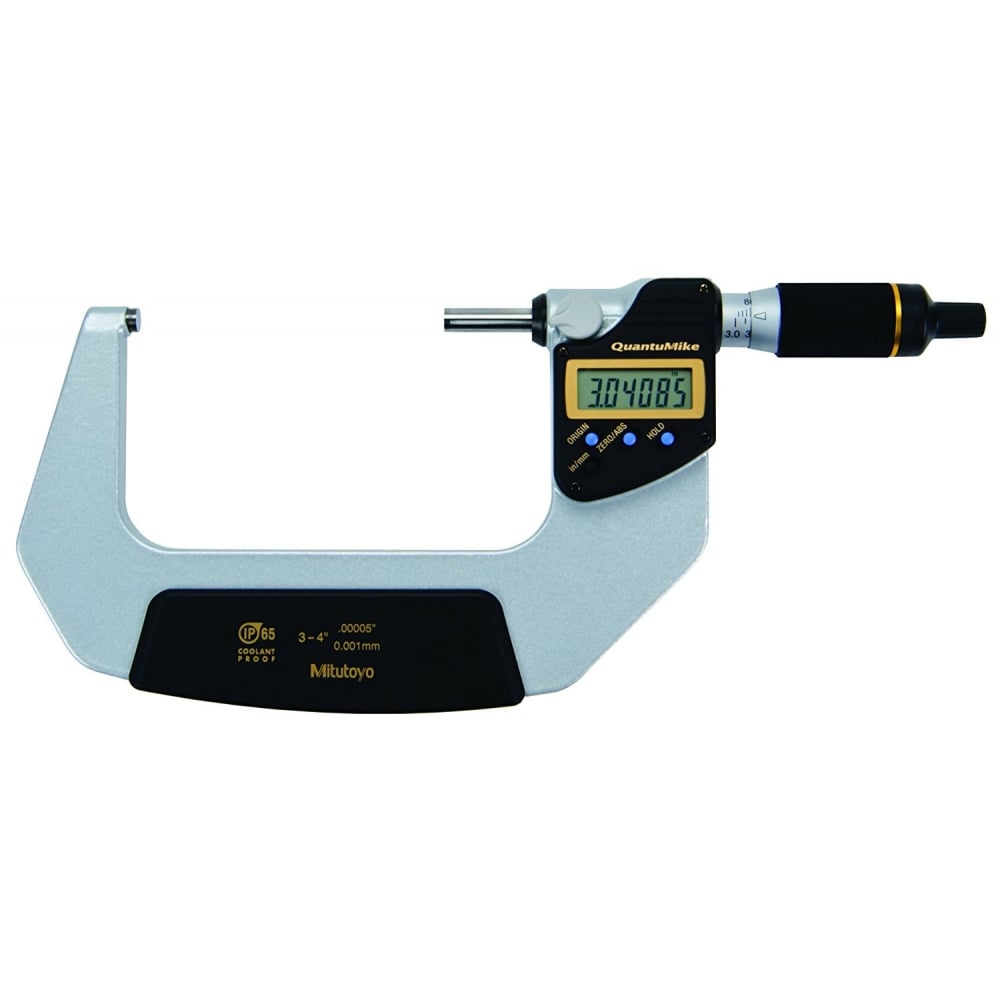

293-188-30 Digimatic Digital Quantumike Fast Action Micrometer, Range 3-4" / 76.2-101.6mm, Resolution 0.00005" / 0.001mm

SKU:Code: 293-188-30

Sale Sold out Regular price £282.00
Save: 25% Sold out Sale price £282.00 Regular price £376.00
Excl. VAT
A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Standard
  • range 3-4" / 76.2-101.6mm
  • display type Digital
  • resolution 0.00005" / 0.001mm
  • data output No
  • ip rating IP65
  • measuring force 7 to 12 N
  • measuring units Imperial / Metric
  • constant-force device Ratchet Thimble
  • battery SR44
  • hold button Yes
  • zero setting Yes
  • abs measure system Yes
description

A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.
