Specification
Specification
- type Standard
- range 0-1" / 0-25.4mm
- display type Digital
- resolution 0.00005" / 0.001mm
- data output No
- ip rating IP65
- measuring units Imperial / Metric
- constant-force device Friction Thimble
- hold button Yes
- zero setting Yes
- abs measure system Yes
description
description

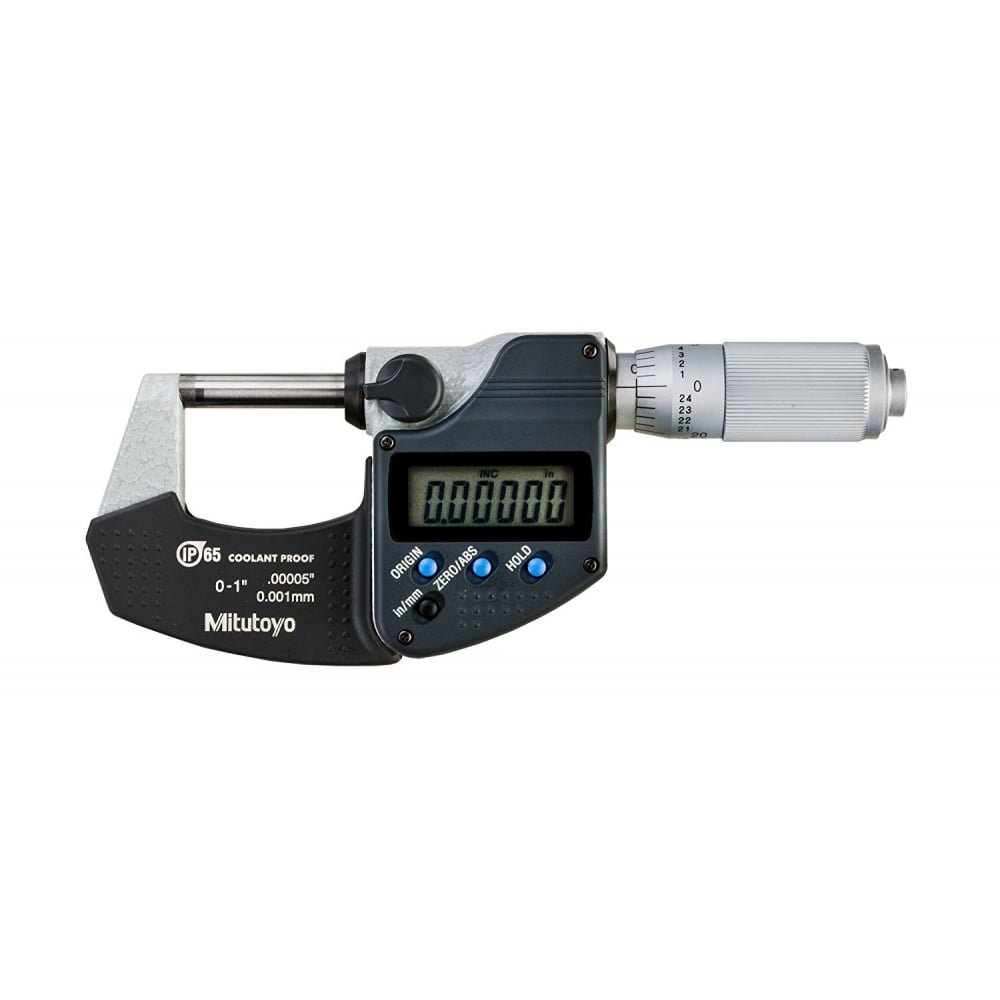

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A friction thimble guarantees repeatable measurement. Digimatic data output.
