Mitutoyo

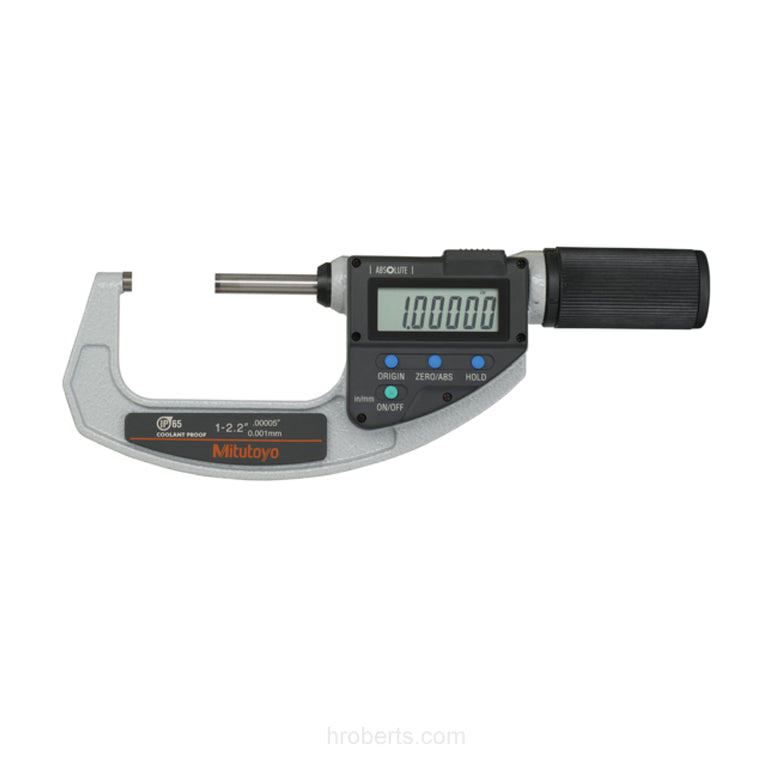

293-677-20 Digimatic Absolute Digital Micrometer, Range 1-2.2" / 25.4-55.8mm, Resolution 0.00005" / 0.001mm, IP65, with SPC Data Output

SKU:Code: 293-677-20

This item is no longer available or has been discontinued.

This Quickmike, with a non-rotating spindle, delivers much faster movement than standard models
View full details
Specification
  • type Standard
  • range 1-2.2" / 25.4-55.8mm
  • display type Digital
  • resolution 0.00005" / 0.001mm
  • data output Yes
  • ip rating IP65
  • measuring units Imperial / Metric
  • constant-force device Ratchet Thimble
  • hold button Yes
  • zero setting Yes
  • abs measure system Yes
description

The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits: With 10 mm feed per revolution, it delivers twenty times as fast as standard devices. Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid. ABSOLUTE linear scale means no restriction on adjustment speed. Larger measuring range - 30 mm compared with 25 mm - than standard micrometer
