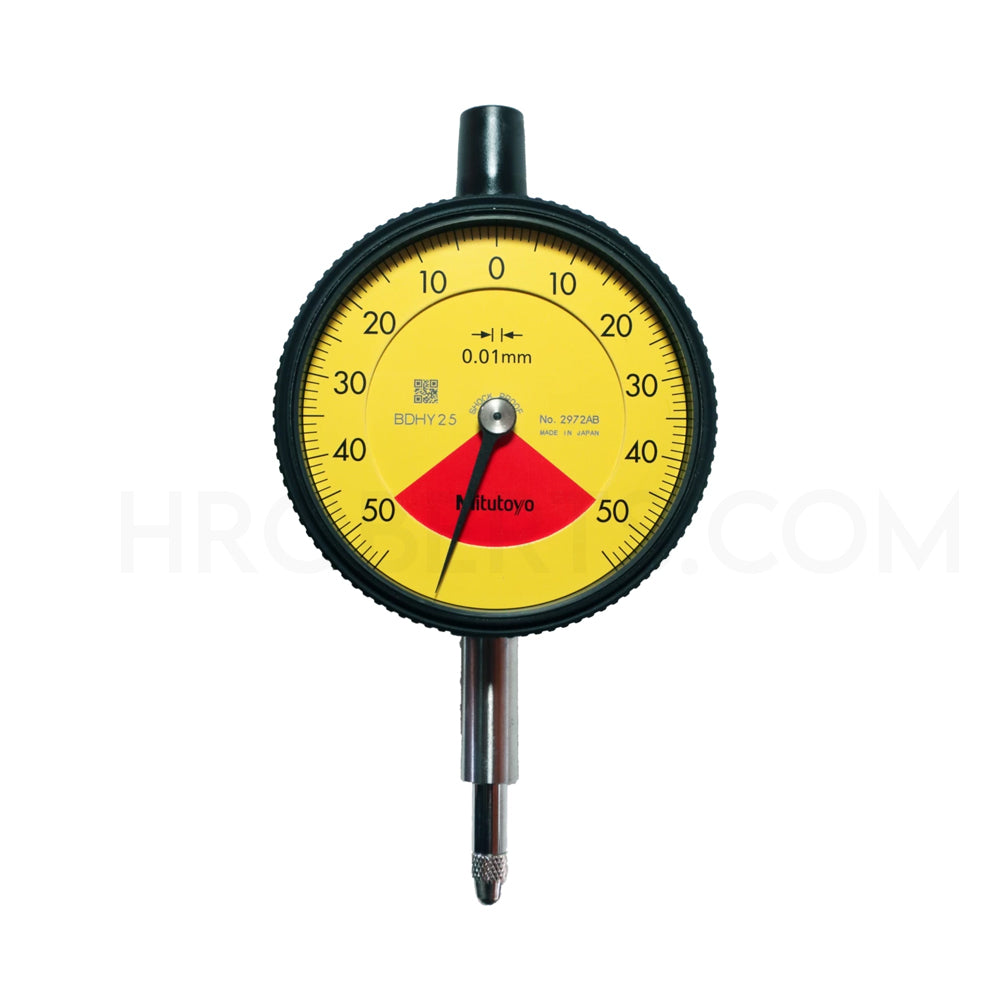

2972AB Dial Indicator, One Revolution, Graduation 0.01mm, Range 1mm, Scale 50-0-50, Bezel Diameter 57mm

SKU:Code: 2972AB

Sale Sold out Regular price £46.65
Save: 25% Sold out Sale price £46.65 Regular price £62.20
Excl. VAT
One revolution dial indicator ideal for restricted-space applications in gauging jigs.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Dial Indicator
  • range 1mm
  • range rev 1.4mm
  • display type Non-Digital
  • graduations 0.01mm
  • bezel dia 57mm
  • measuring force 1.4 N or Less
  • measuring units Metric
  • stem dia 8mm
  • remarks Dial Gauge Series 2
  • scale 50-0-50
  • contact point thread M2.5 x 0.45
  • back Centre Lug

Dial indicators ideal for restricted-space applications in gauging jigs. Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed” The bezel clamp 21AZB148, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools.
