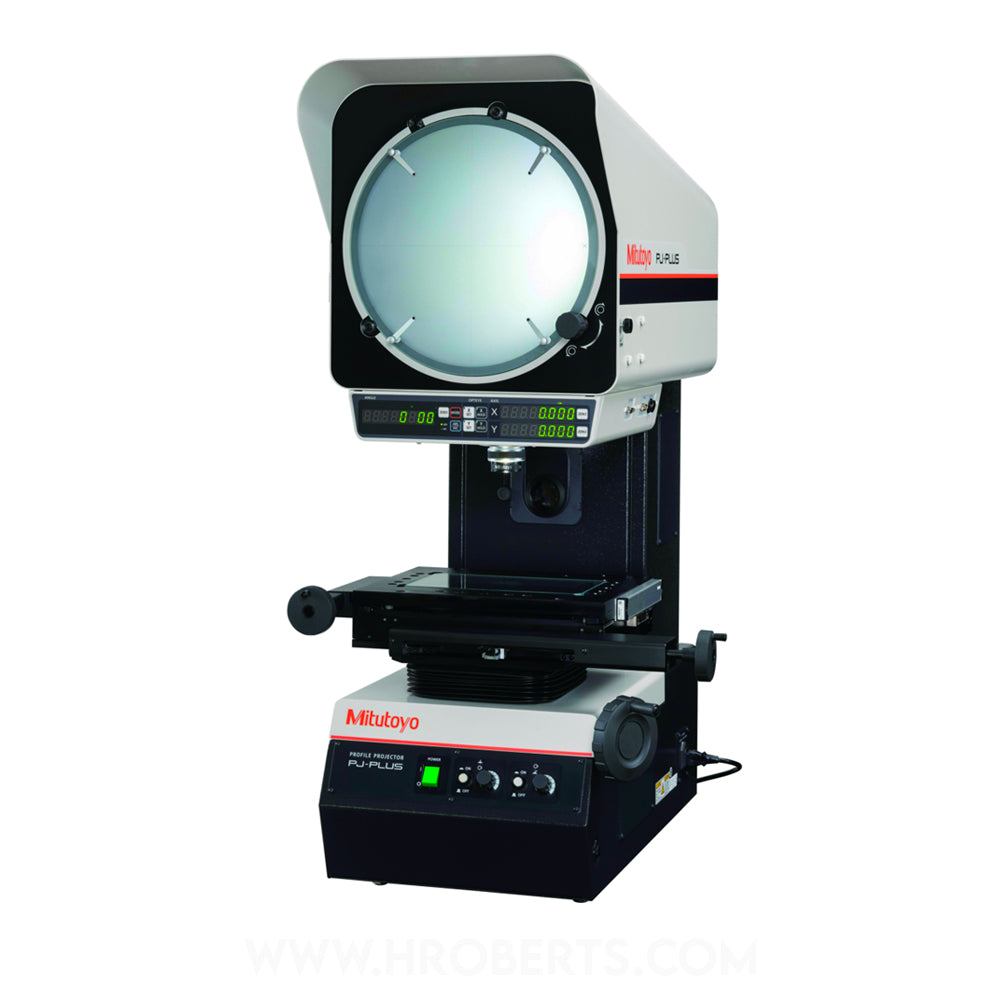

Mitutoyo 302-802-10 PJ-P2010A Profile Projector XY Stage Travel Range 200 x 100mm, Resolution 0.001mm or 0.0001" / 0.001mm
SKU:Code: 302-802-10
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- resolution 0.001mm
- mass 118 kg
- xy stage size 350x280mm
- xy stage travel range 200x100mm
- projection lens 10X (172-296)
- maximum workpeice height 90.5mm
- maximum stage loading 8kg
The Mitutoyo PJ-Plus profile projector series provides highly accurate, stable dimension and angle measurements in harsh processing lines and other manufacturing environments. The PJ-Plus implements LED illumination, a brand-new feature and design on profile projectors, replacing traditional halogen lighting. The new LED illumination source offers better durability and longer service life, prevents rate of decline in illumination by about 50%, and eliminates the need for a cooling fan in the main unit, drastically decreasing the entry of oil, mist, dust, etc. into the measuring instrument.
- Effective stepless illumination control for lighting levels to be precisely set to suit surface texture and color of the workpiece

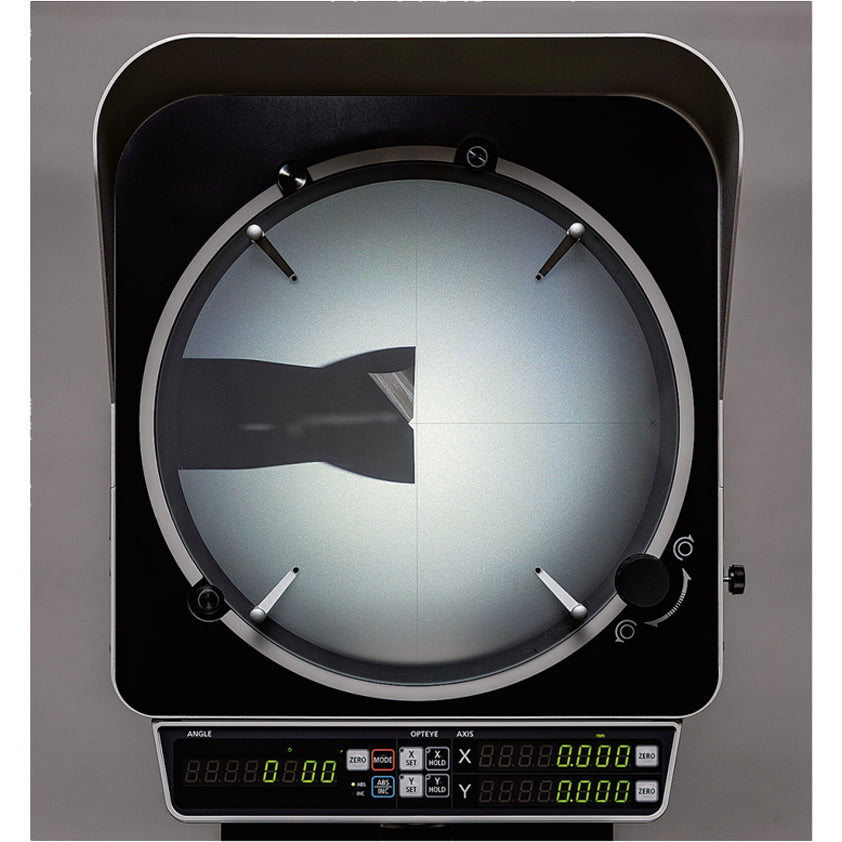

- Built-in digital XY counter on the front of the machine and displays XY axes and angle readings
- PJ-Plus is available in packages with the Metlogix M2 software, touch screen tablet with or without edge detection
