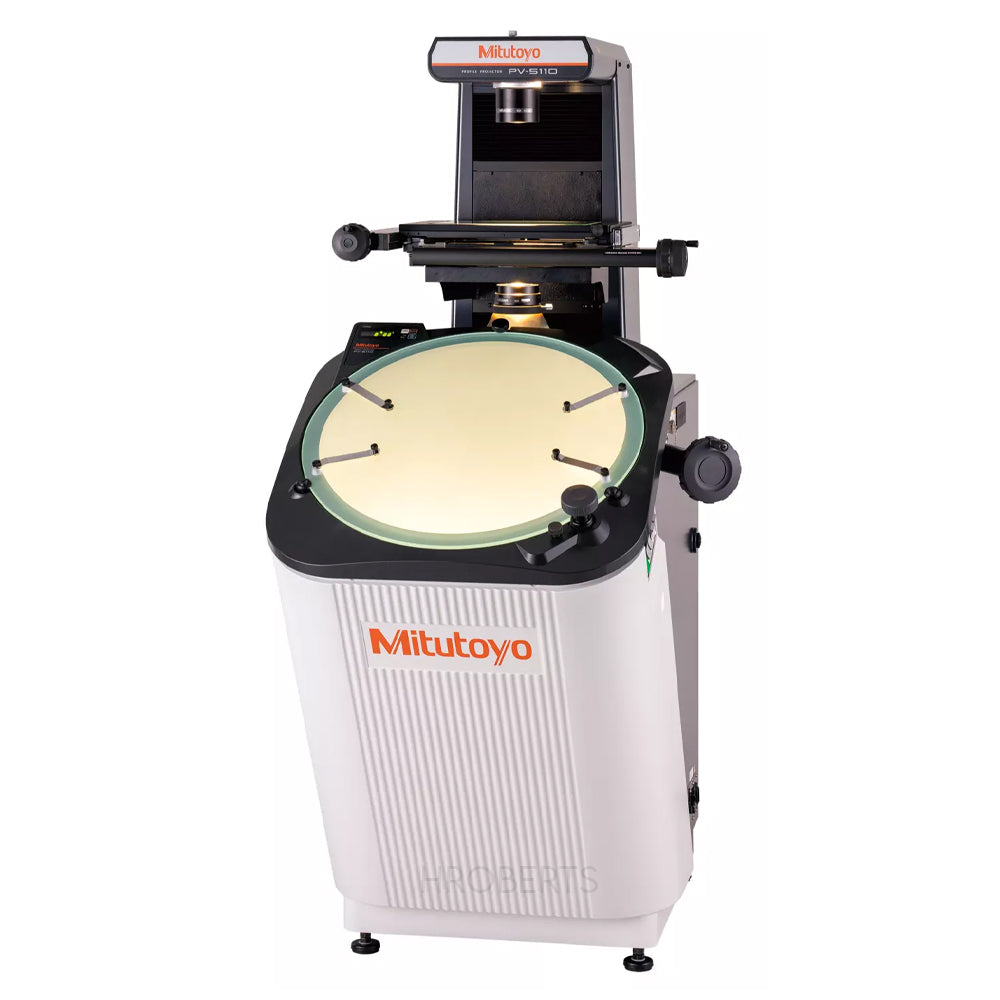

Mitutoyo 304-919-12 PV-5110 Measuring Projector XY Stage Travel Range 200 x 100mm
SKU:Code: 304-919-12
Sale
Sold out
Regular price
£15,372.00
Save: 10%
Sold out
Sale price
£15,372.00
Regular price
£17,080.00
Excl. VAT
This measuring projector is a robust stand-alone device.
The large rotatable screen guarantees you good observation and easy measuring.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- brand Mitutoyo
- resolution 0.001mm
- mass 210 kg
- xy stage size 380x250mm
- xy stage travel range 200x100mm
- projection lens 10X (172-402)
- maximum stage loading 5kg
description
description
- Effective diameter: 508 mm
-
Screen material: Fine-ground glass
-
Screen rotation: ±360°, fine adjustment and clamp
-
Angle reading: Digital counter (LED)
-
Resolution: 1' or 0.01° (switchable)
-
Range: ±370°ABS/INC mode switching, Zero Set
- Reference lines : Cross-hairs
10X (172-402)
Optional: 5X, 20X, 50X, 100X

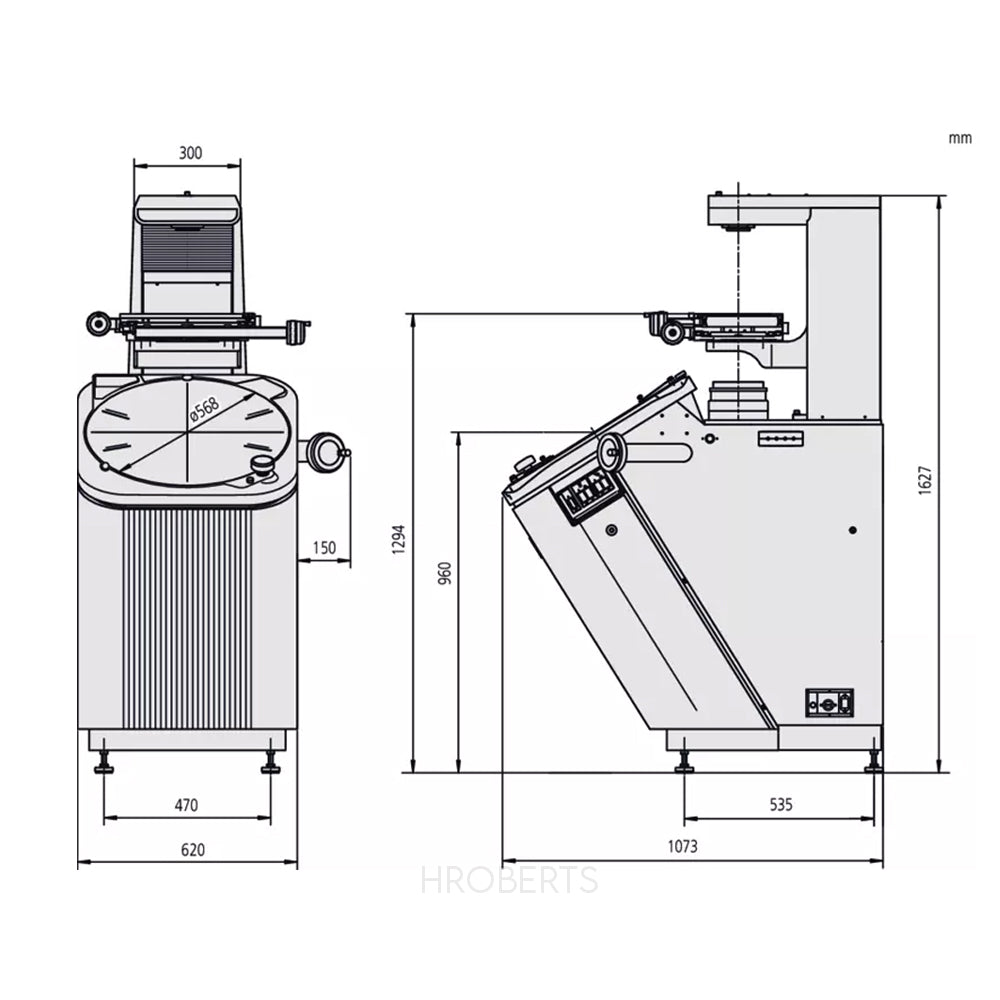

technical drawings
PDF downloads
