Mitutoyo

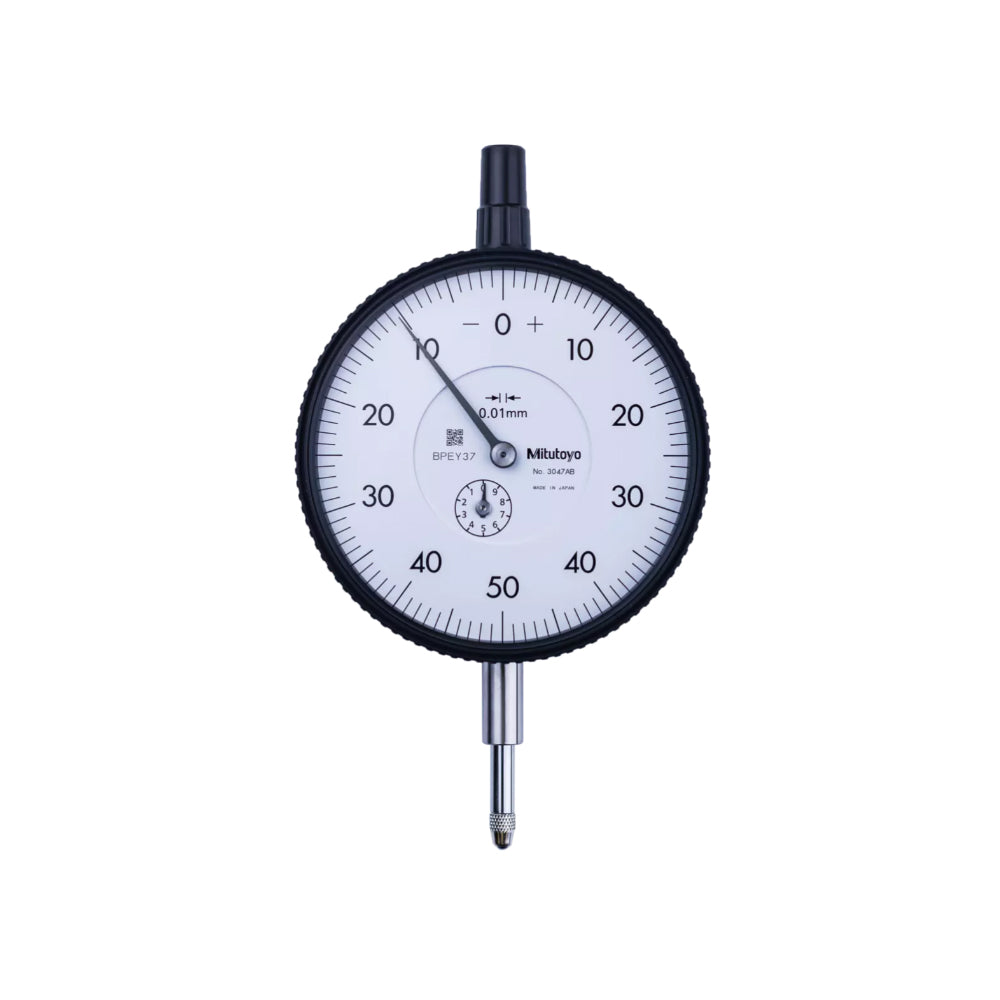

3047A Dial Indicator, Graduation 0.01mm, Range 10mm, Scale 0-50-0, Bezel Diameter 78mm
SKU:Code: 3047A
Sale
Sold out
Regular price
£100.50
Save: 25%
Sold out
Sale price
£100.50
Regular price
£134.00
Excl. VAT
Dial indicator with a large-diameter dial face for easy reading.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator
- range 10mm
- range rev 1mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 78mm
- measuring force 1.4 N or Less
- measuring units Metric
- stem dia 8mm
- remarks Dial Gauge Series 3
- scale 0-50-0
- contact point thread M2.5 x 0.45
- back Centre Lug
description
description
The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The bezel clamp 21RZB148, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools.
