Specification
Specification

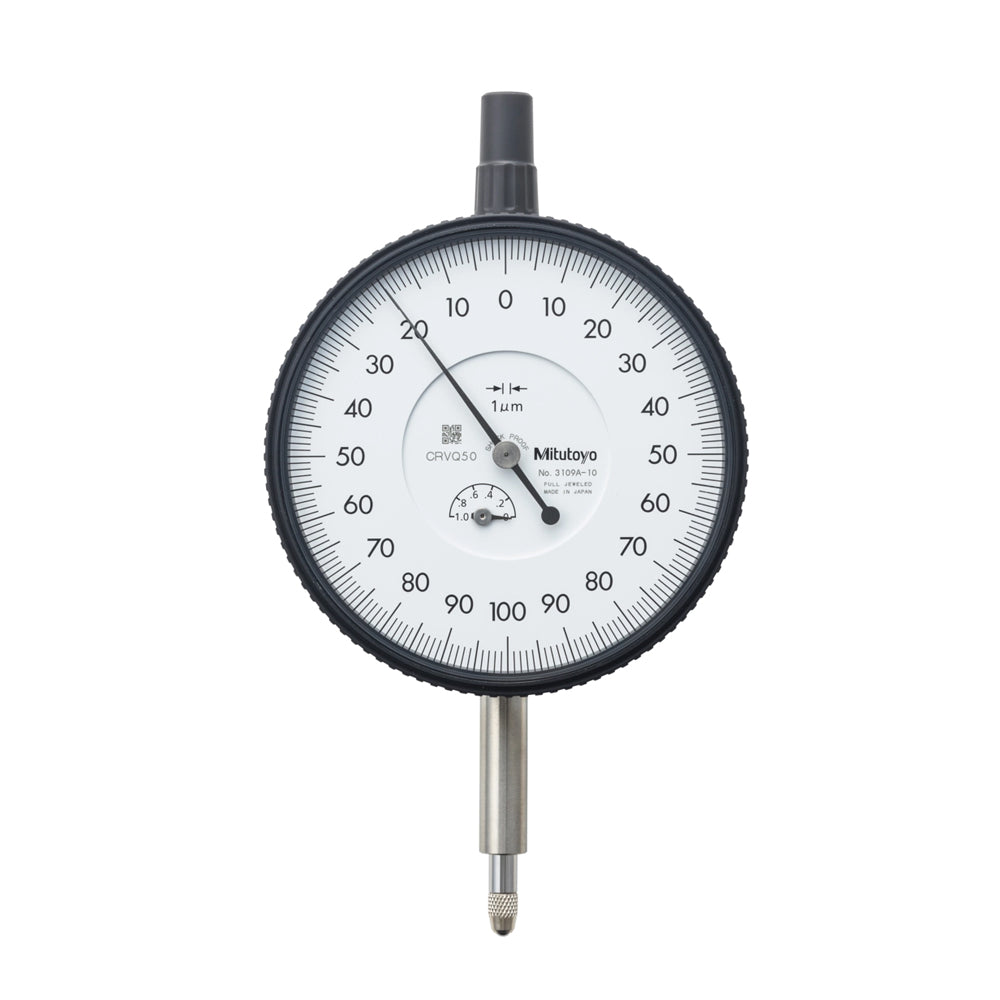

- type Dial Indicator
- range 1.0mm
- range rev 0.2mm
- display type Non-Digital
- graduations 0.001mm
- bezel dia 78mm
- measuring force 1.5 N or Less
- measuring units Metric
- stem dia 8mm
- remarks Dial Gauge Series 3
- scale 0-100-0
- contact point thread M2.5 x 0.45
- back Centre Lug
description
description
The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The bezel clamp 21RZB148, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools.
