Mitutoyo

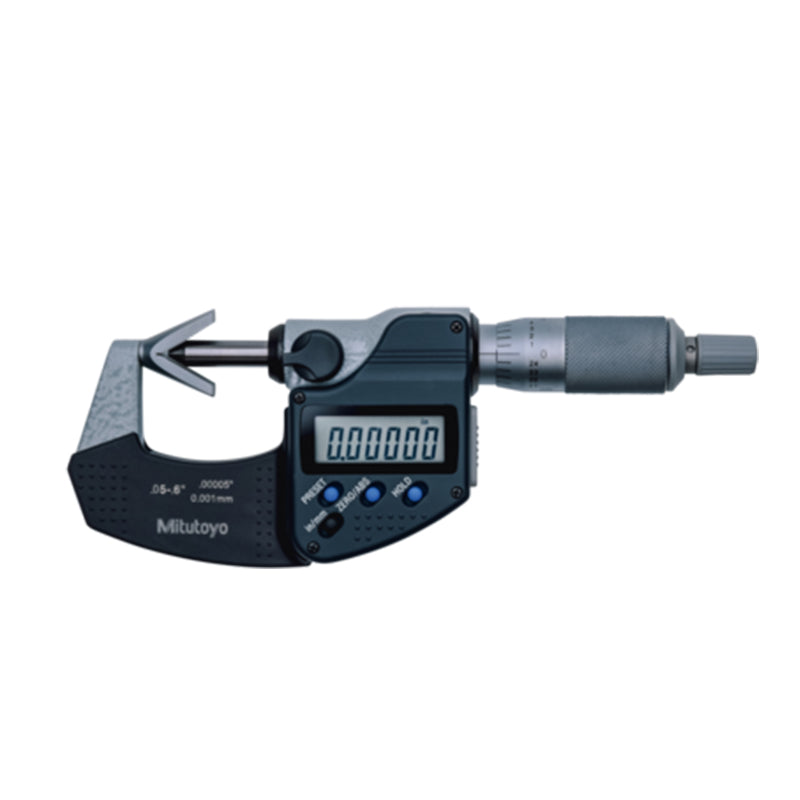

314-361-30 Digimatic Digital V-Anvil Micrometer, Range 0.05-0.6" / 1.27-15.24mm with SPC Data Output

SKU:Code: 314-361-30

Sale Sold out Regular price £567.75
Save: 25% Sold out Sale price £567.75 Regular price £757.00
Excl. VAT
Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type V-Anvil
  • range 0.05-0.6" / 1.27-15.24mm
  • display type Digital
  • resolution 0.00005" / 0.001mm
  • accuracy ±0.0002" (±4 μm)
  • data output Yes
  • measuring units Imperial / Metric
  • anvil 60 Degree
description

Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes. Can measure pitch diameter of screw threads. Measuring faces: carbide. Equipped with Ratchet Stop for constant measuring force.
