Mitutoyo

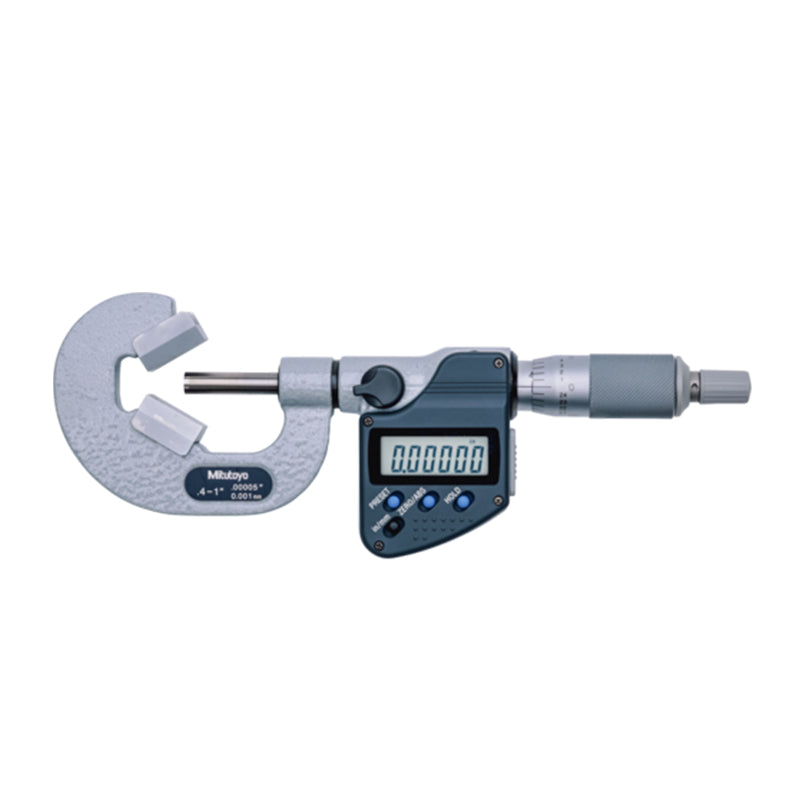

314-362-30 Digimatic Digital V-Anvil Micrometer, Range 0.4-1" / 10.16-25.4mm with SPC Data Output
SKU:Code: 314-362-30
Sale
Sold out
Regular price
£631.50
Save: 25%
Sold out
Sale price
£631.50
Regular price
£842.00
Excl. VAT
Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type V-Anvil
- range 0.05-0.6" / 1.27-15.24mm
- display type Digital
- resolution 0.00005" / 0.001mm
- accuracy ±0.0002" (±4 μm)
- data output Yes
- measuring units Imperial / Metric
- anvil 60 Degree
description
description
Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes. Can measure pitch diameter of screw threads. Measuring faces: carbide. Equipped with Ratchet Stop for constant measuring force.
