Images are for illustration purposes only - Products may differ.

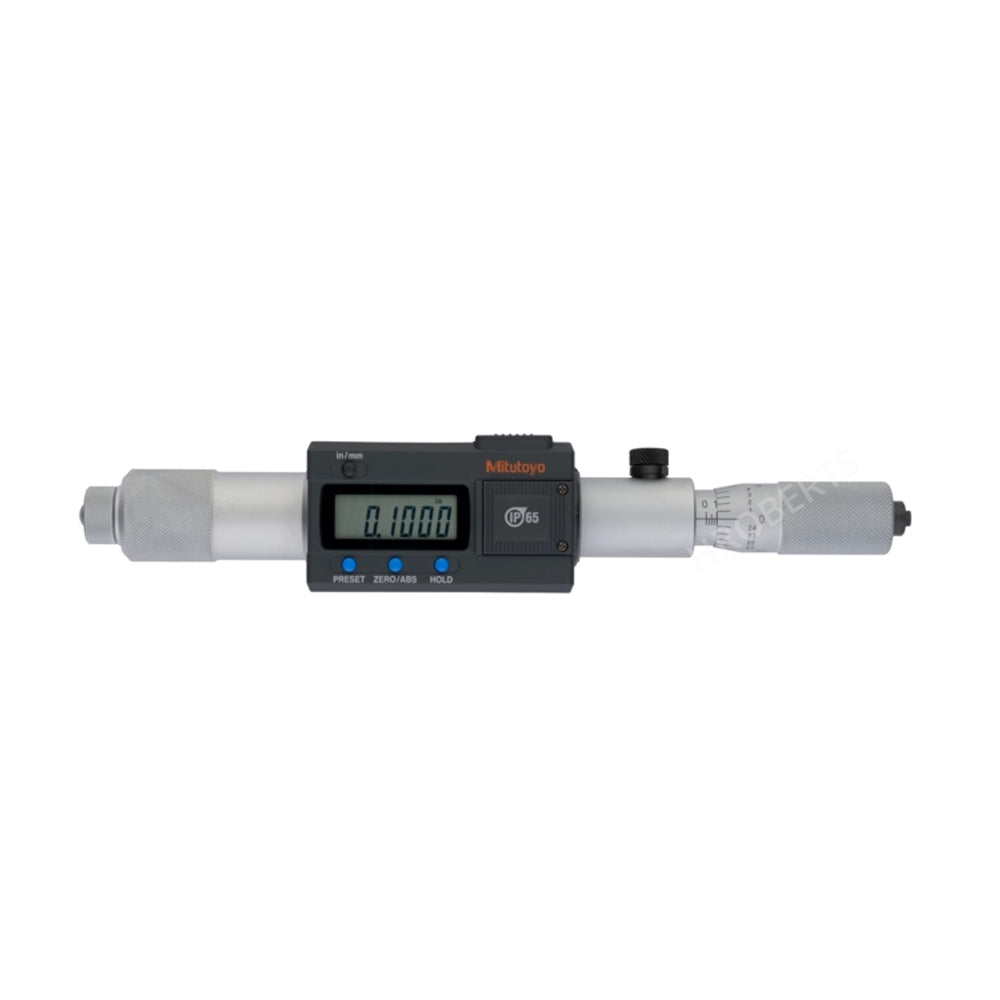

Mitutoyo 337-102 Digimatic Digital Extension Tube Inside Micrometer, Range 8-9" / 203.2-228.6mm, Resolution 0.001mm / 0.0001"
SKU:Code: 337-102
Sale
Sold out
Regular price
£765.00
Save: 25%
Sold out
Sale price
£765.00
Regular price
£1,020.00
Excl. VAT
Wide range of inside measurements possible by combining extension tubes with the micrometer head. The sleeve is rotated to adjust the index line position when setting to a length standard.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Extension Tube Type
- range 8-9" / 203.2-228.6mm
- display type Digital
- graduations 0.001mm / 0.0001"
- data output No
- measuring units Metric / Imperial
- measuring face Carbide Tipped
- main unit 8-9" / 200-225mm
- brand Mitutoyo
description
description
This is an extension rod type inside micrometer that offers you the following benefits:
Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces.
Digimatic type, with data output.
It has excellent resistance against water and dust (IP65 protection level) enabling you to use it in machining situations that include splashing coolant fluid.
technical drawings
PDF downloads
accessories
