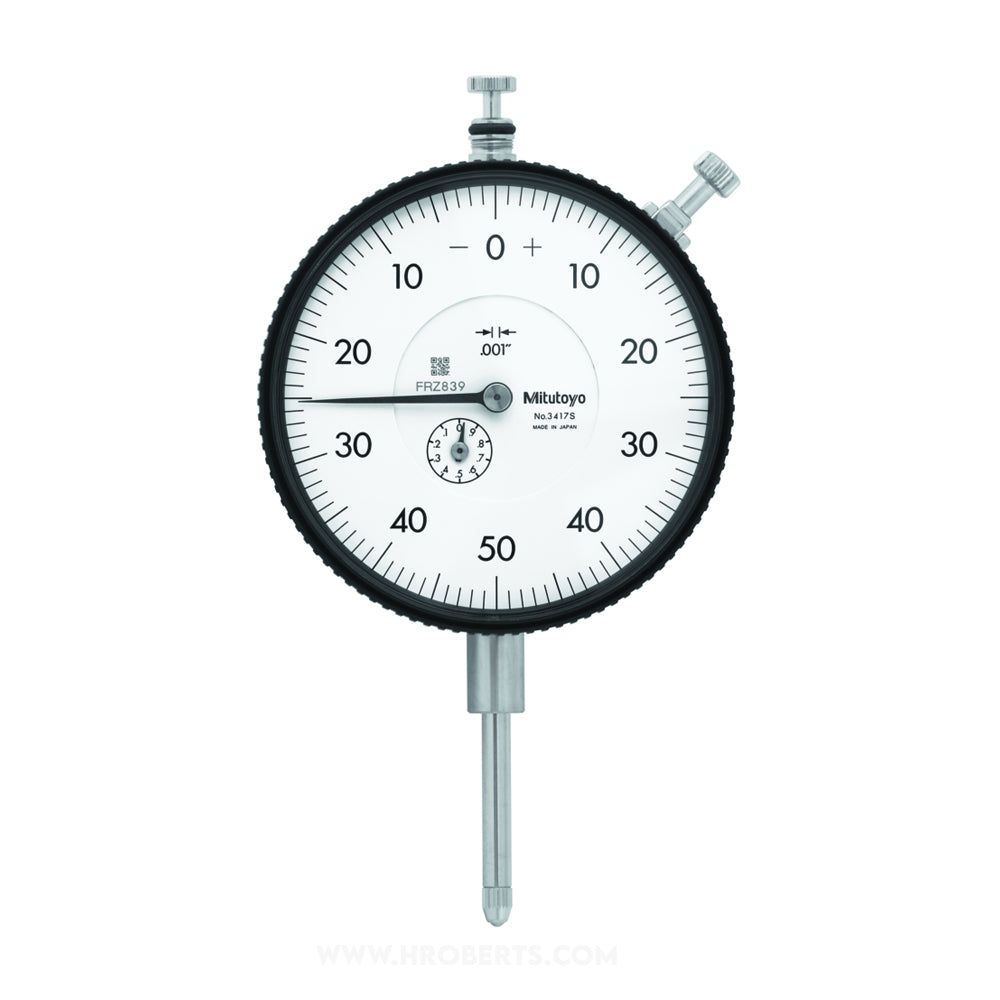

Mitutoyo 3417A Dial Indicator, Graduation 0.001", Range 1.0", Scale 0-50-0, Bezel Diameter 3.07"
SKU:Code: 3417A
Sale
Sold out
Regular price
£114.75
Save: 25%
Sold out
Sale price
£114.75
Regular price
£153.00
Excl. VAT
Dial indicator with a large-diameter dial face for easy reading.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Dial Indicator
- range 1.0"
- range rev 0.1"
- display type Non-Digital
- graduations 0.001"
- bezel dia 3.07"
- measuring force 1.8 N or Less
- measuring units Imperial
- stem dia 0.375"
- remarks Dial Gauge Series 3
- scale 0-50-0
- contact point thread 4-48UNF
- back Centre Lug
- brand Mitutoyo
description
description
The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The bezel clamp 21RZA065, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools.
