Specification
Specification

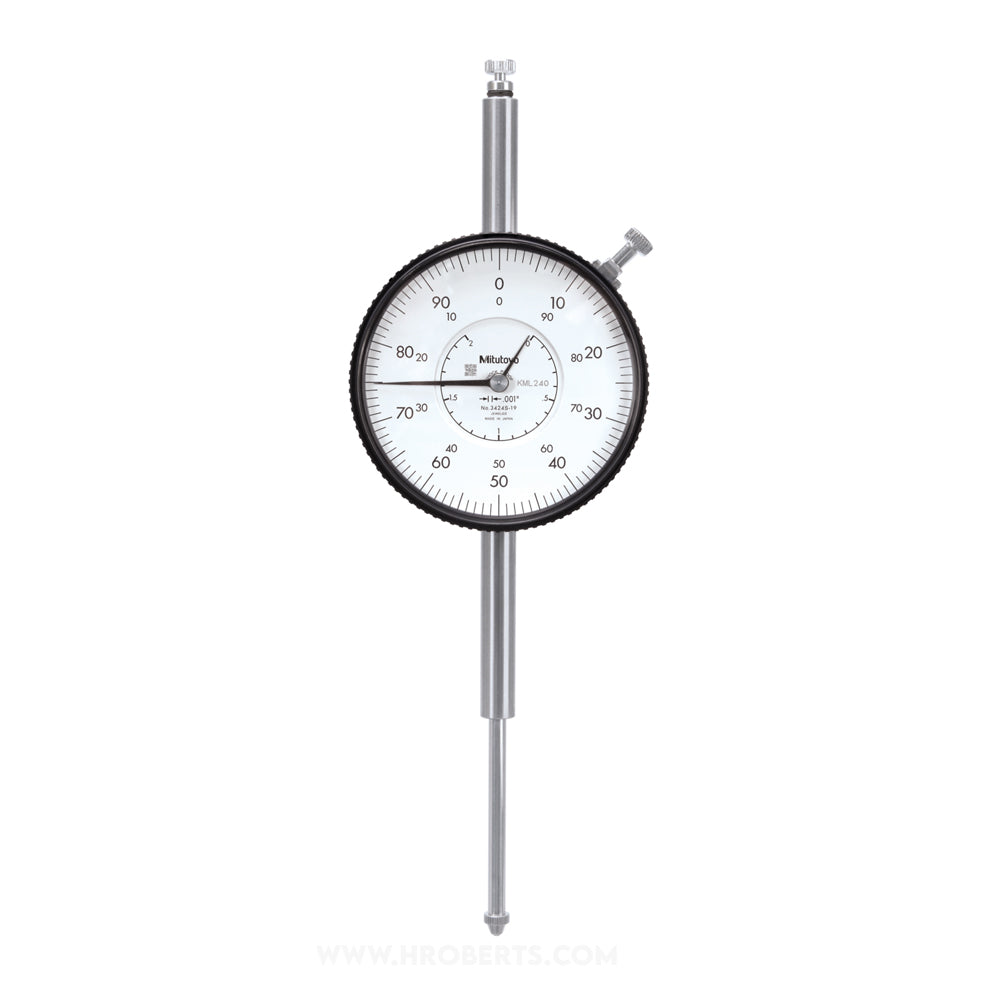

- type Dial Indicator
- range 2.0"
- range rev 0.1"
- display type Non-Digital
- graduations 0.001"
- bezel dia 3.07"
- measuring force 3.0 N or Less
- measuring units Imperial
- stem dia 0.375"
- remarks Dial Gauge Series 3
- scale 0-100
- contact point thread 4-48UNF
- back Centre Lug
description
description
The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The bezel clamp 21RZA065, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools.
