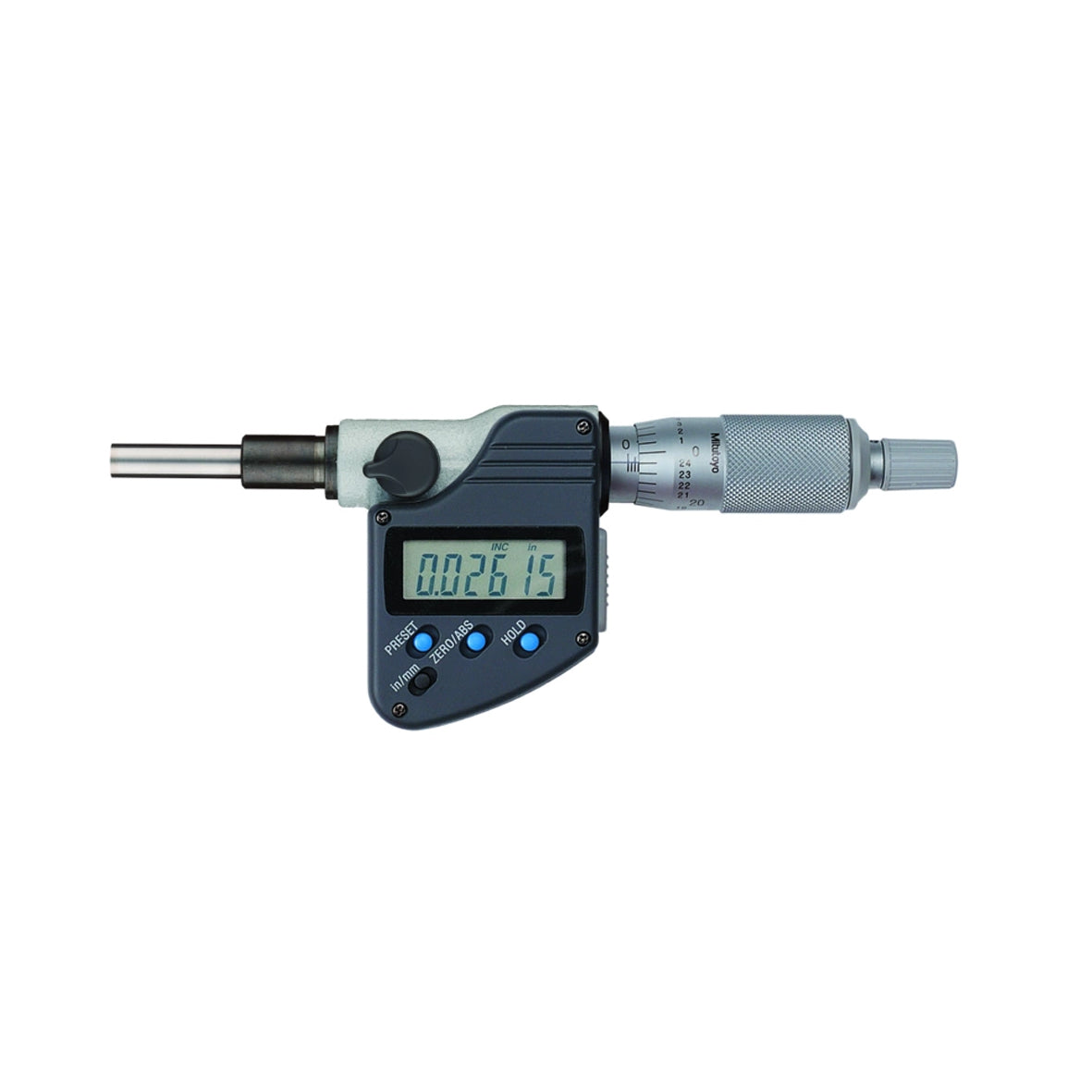

Mitutoyo 350-351-30 Digimatic Digital Rotatable Micrometer Head, Range 0-25mm / 0-1", Resolution 0.001mm / 0.00005"
SKU:Code: 350-351-30
Sale
Sold out
Regular price
£254.25
Save: 25%
Sold out
Sale price
£254.25
Regular price
£339.00
Excl. VAT
The Digimatic output port enables inclusion in a statistical process control or networked measurement system.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm / 0-1"
- display type Digital
- resolution 0.001mm / 0.00005"
- data output Yes
- measuring units Metric / Imperial
- spindle end Flat
- stem dia 0.375"
- stem type Plain
- max permissible errors ±2 μm (±0.0001")
- auto power Yes - On/Off
- measuring face Carbide Tipped
- origin point setting Yes
- error alarm Yes
- brand mitutoyo
description
description
A Mitutoyo digital micrometer head with plain Ì÷10mm stem and flat spindle tip. Ratchet stop. Digimatic data output.

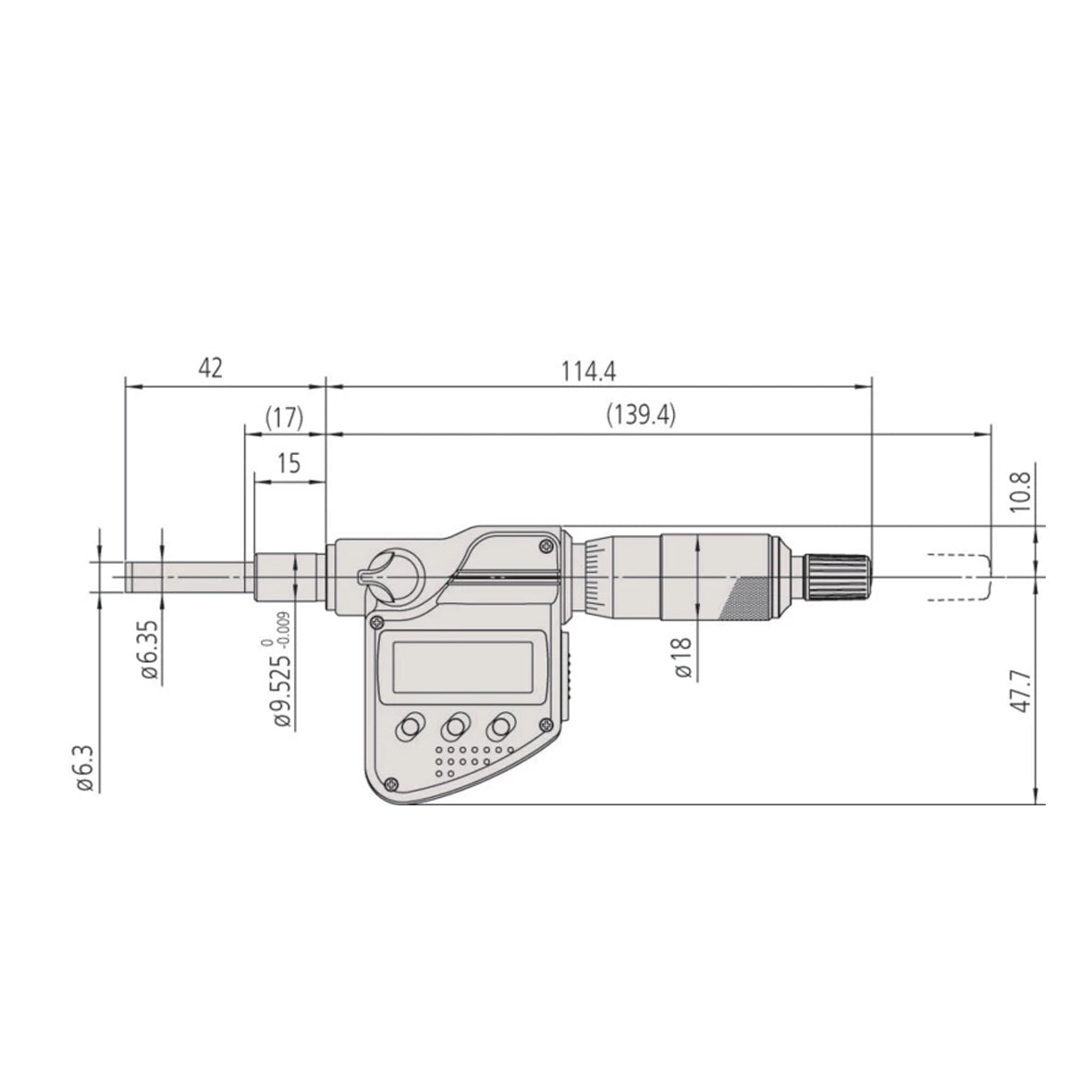

technical drawings
