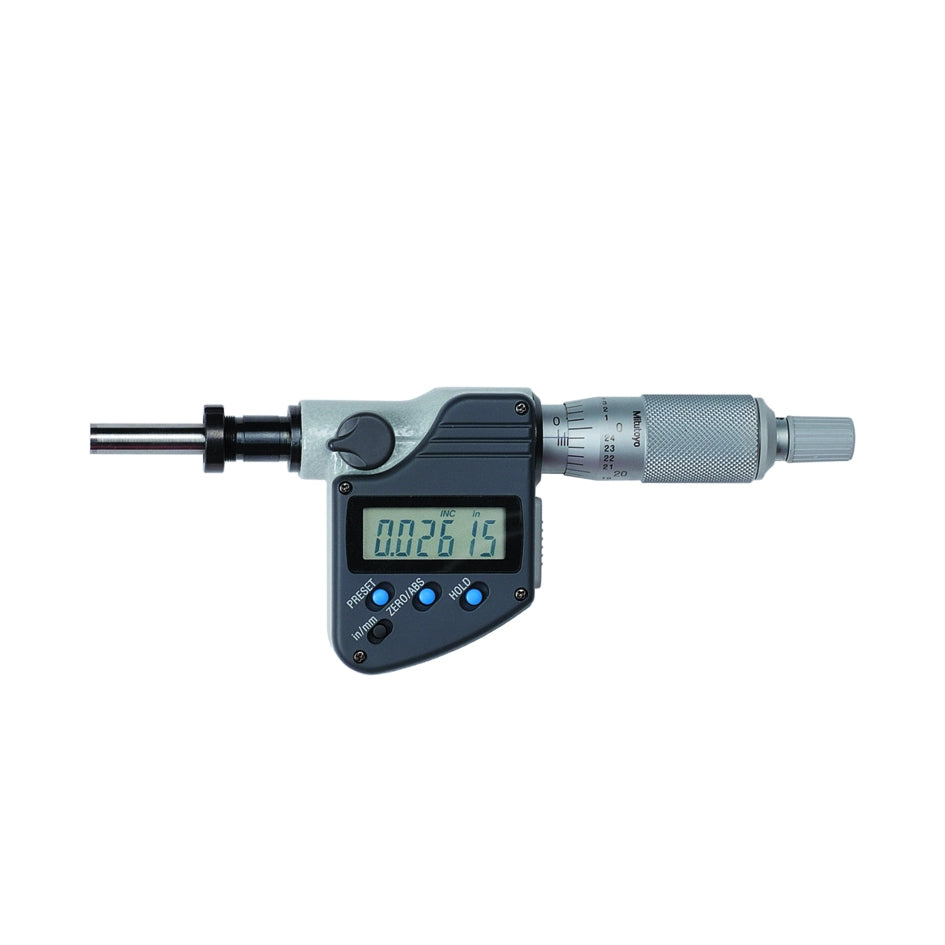

Mitutoyo 350-352-30 Digimatic Digital Rotatable Micrometer Head, Range 0-25mm / 0-1", Resolution 0.001mm / 0.00005"
SKU:Code: 350-352-30
Sale
Sold out
Regular price
£275.25
Save: 25%
Sold out
Sale price
£275.25
Regular price
£367.00
Excl. VAT
The Digimatic output port enables inclusion in a statistical process control or networked measurement system.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm / 0-1"
- display type Digital
- resolution 0.001mm / 0.00005"
- data output Yes
- measuring units Metric / Imperial
- spindle end Flat
- stem dia 0.375"
- stem type Locknut
- max permissible errors ±2 μm (±0.0001")
- auto power Yes - On/Off
- measuring face Carbide Tipped
- origin point setting Yes
- error alarm Yes
- brand mitutoyo
description
description
This Micrometer Head has a 25 mm range and a 10 mm stem, and offers the following benefits:
- You can integrate it into machinery and measuring instruments.
- Measurement values are clearly displayed in 0.001mm increments.
- Stem diameter: 10 mm.

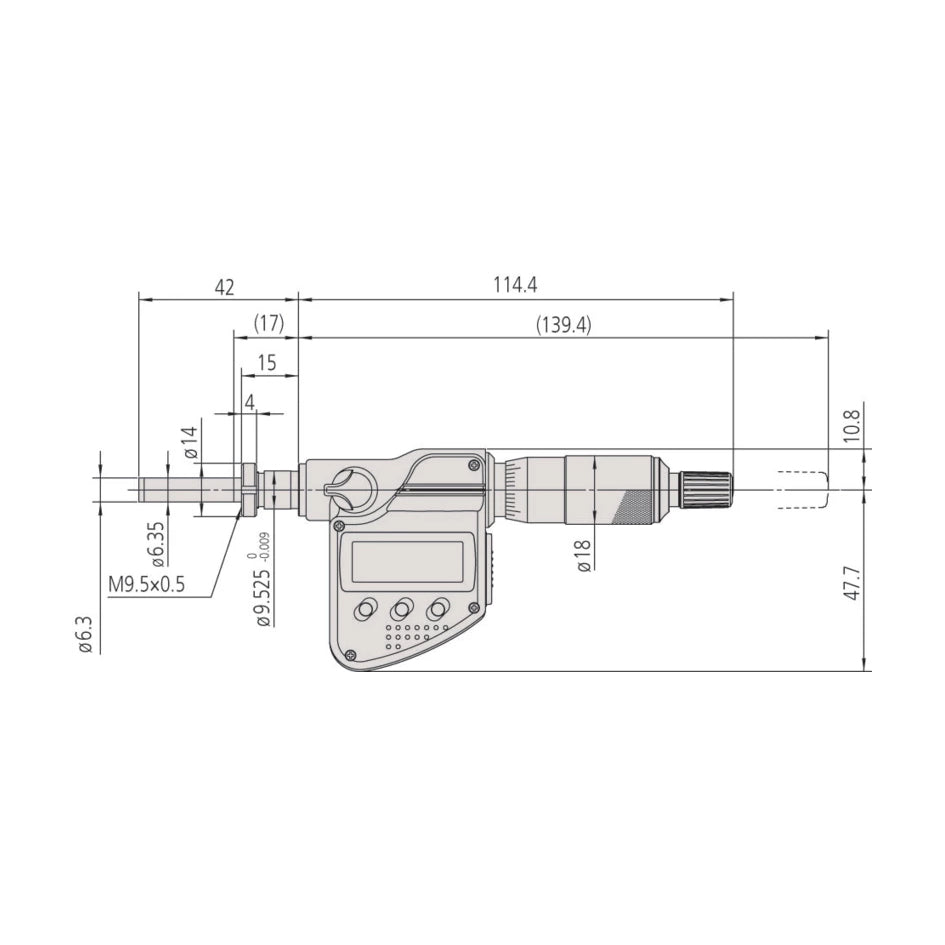

technical drawings
