Mitutoyo 350-361-30 Digimatic Digital Rotatable Micrometer Head, Range 0-25mm / 0-1", Resolution 0.001mm / 0.00005"
SKU:Code: 350-361-30
Sale
Sold out
Regular price
£351.75
Save: 25%
Sold out
Sale price
£351.75
Regular price
£469.00
Excl. VAT
The Digimatic output port enables inclusion in a statistical process control or networked measurement system.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0-25mm / 0-1"
- display type Digital
- resolution 0.001mm / 0.00005"
- data output Yes
- measuring units Metric / Imperial
- spindle end Flat
- stem dia 0.5"
- stem type Plain
- max permissible errors ±2 μm (±0.0001")
- auto power Yes - On/Off
- measuring face Carbide Tipped
- origin point setting Yes
- error alarm Yes
- brand mitutoyo
description
description
This Micrometer Head has a 25 mm range and a 12 mm stem, and
offers the following benefits:
- You can integrate it into machinery and measuring instruments.
- Its excellent water and dust resistance (IP65 protection level) lets you use it in machining situations that include splashing coolant fluid (except types with threaded stem).

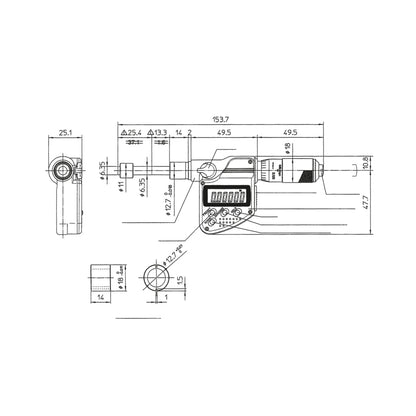

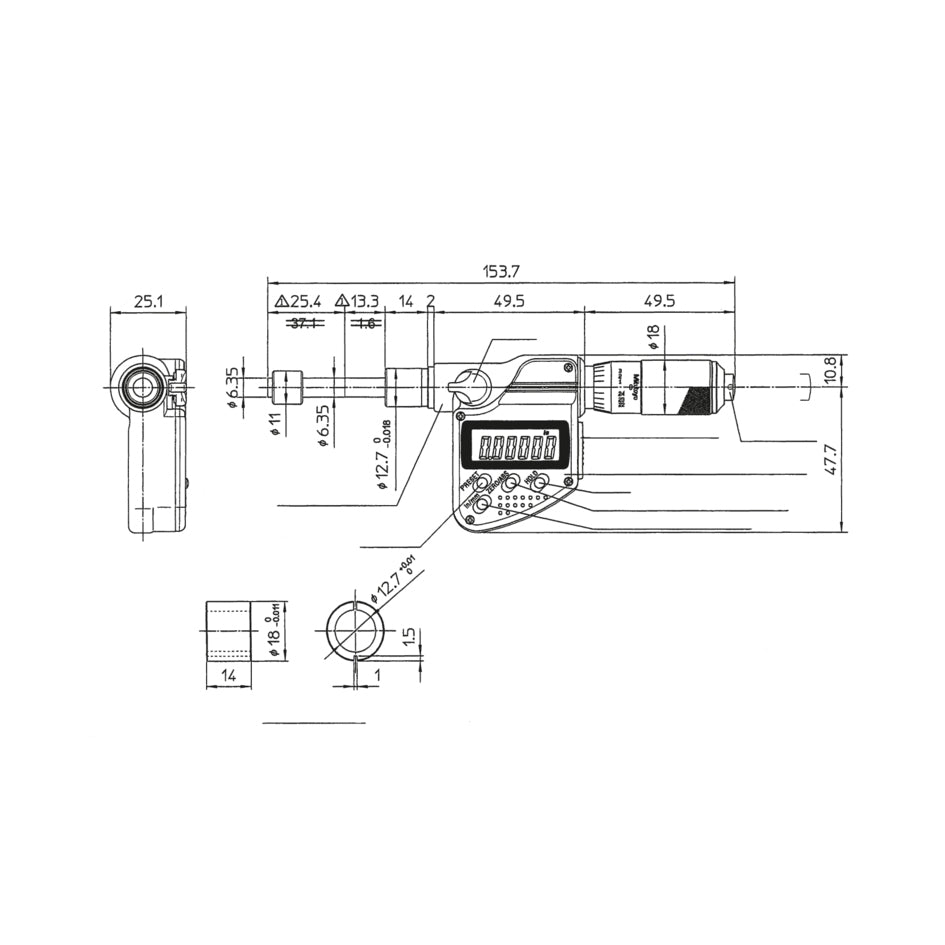

technical drawings
PDF downloads
accessories
