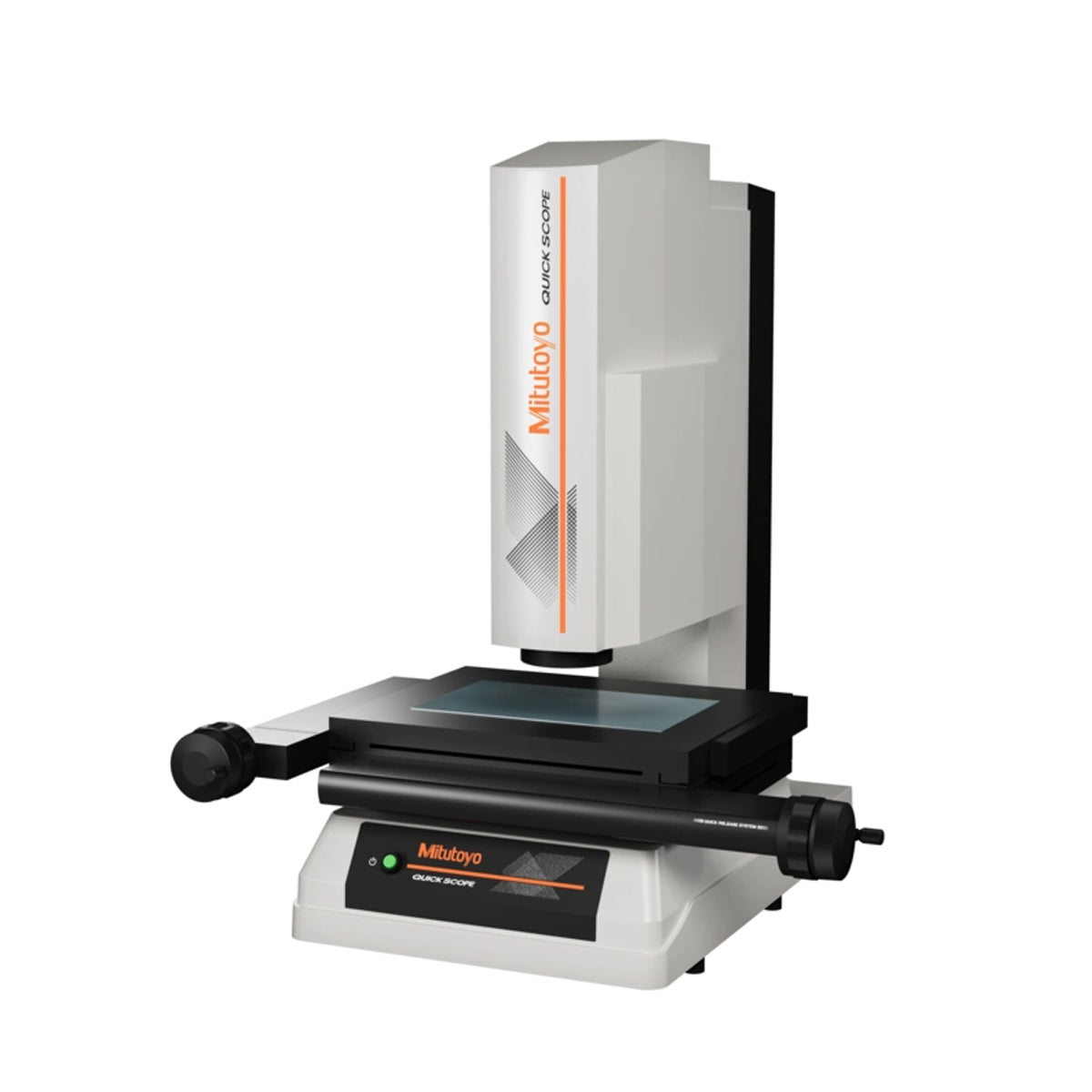

Mitutoyo 359-723-11 Quick Scope QS-L2010Z/AFC Man. Quick Scope, meas. range XY = 200x100, Zoom and Autofocus
SKU:Code: 359-723-11
Item priced on application.
Request a PriceThe UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Manual
- range X = 200x100 mm / Z = 150mm
- stage glass size 250 x 150 mm
- camera 3 Megapixels colour CCD camera
Quick Scope Manual Vision Measuring System
The Quick Scope Manual Vision Measuring System is a versatile, high-precision optical inspection system designed for accurate surface observation and dimensional measurement across a wide variety of workpieces. Combining precision optics with intuitive operation, it is ideal for quality control, inspection, and measurement applications in manufacturing, engineering, and research environments.
Featuring 0.1 µm measurement resolution and a generous 150 mm motorised Z-axis travel, the Quick Scope delivers highly accurate measurements while enabling rapid autofocus for improved productivity. Its power zoom system allows magnification to be adjusted quickly and easily, while fine illumination control enables lighting to be optimised for different materials and surface finishes.
A quick-release stage mechanism allows instant switching between coarse and fine stage movement for efficient positioning, while the Quick Navigation function simplifies repetitive measurement tasks by allowing users to return rapidly to previously measured locations.
Key Features
- High-precision manual vision measuring system
- Suitable for surface observation and dimensional measurement of a wide range of workpieces
- 0.1 µm measurement resolution for highly accurate results
- 150 mm motorised Z-axis with fast and accurate autofocus
- Power zoom for quick and easy magnification changes
- Fine illumination control to optimise lighting for different workpieces
- Quick-release stage for instant switching between coarse and fine movement
- Quick Navigation function for faster repeat measurements
- Ideal for quality control, inspection, and precision measurement applications
