Images are for illustration purposes only - Products may differ.
Mitutoyo

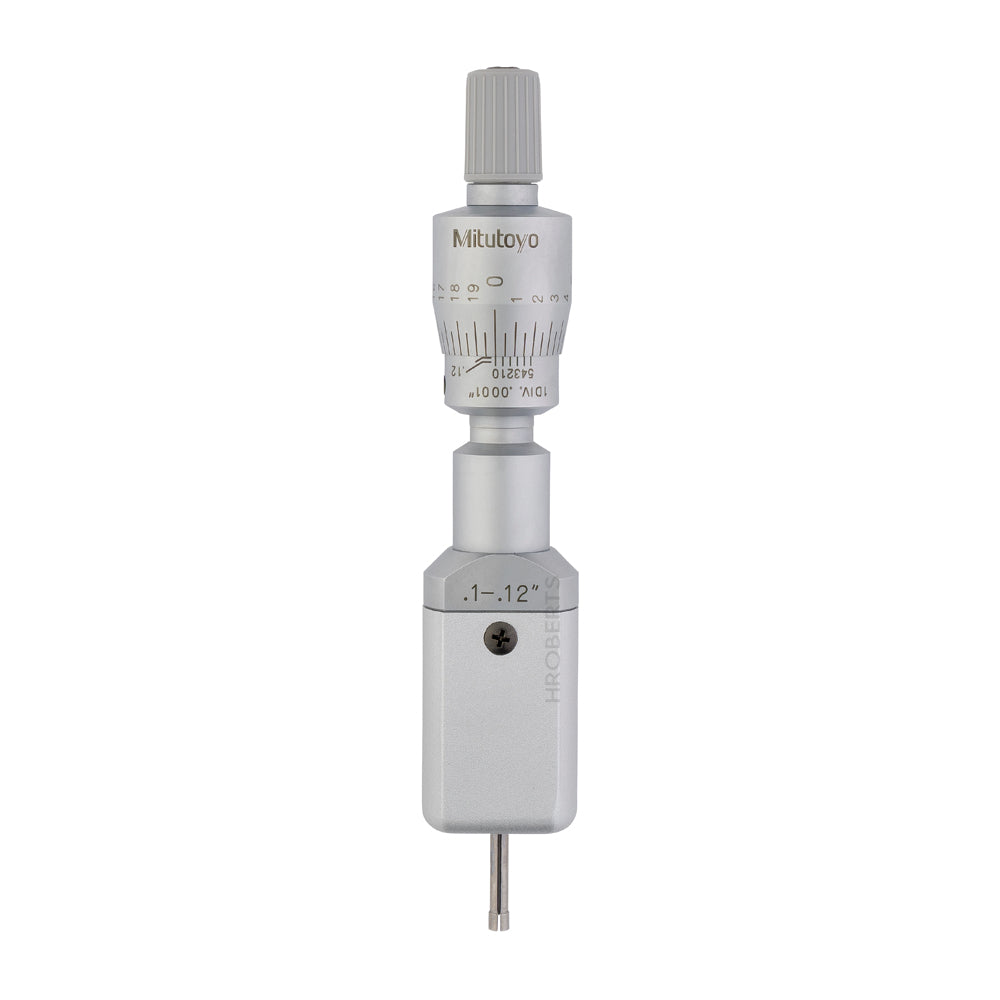

368-022 Holtest Bore Micrometer, 2-Point Contact, Range 0.1-0.12", Graduation 0.0001"
SKU:Code: 368-022
Sale
Sold out
Regular price
£749.25
Save: 25%
Sold out
Sale price
£749.25
Regular price
£999.00
Excl. VAT
Analogue bore gauges are precision measurement instruments used to measure the inside diameter of a hole, cylinder, or other internal surfaces with high accuracy
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 0.1-0.12"
- display type Non-Digital
- graduations 0.0001"
- max measuring depth 12mm
- measuring units Imperial
- remarks 2-Point Contact
- measuring face Hardened Steel
- with rings No
- blind bore measurement Yes
description
description
A non-digital 2-point Mitutoyo bore micrometer suitable for measuring the diameter of small holes. Hardened steel contact faces. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement.
