Images are for illustration purposes only - Products may differ.

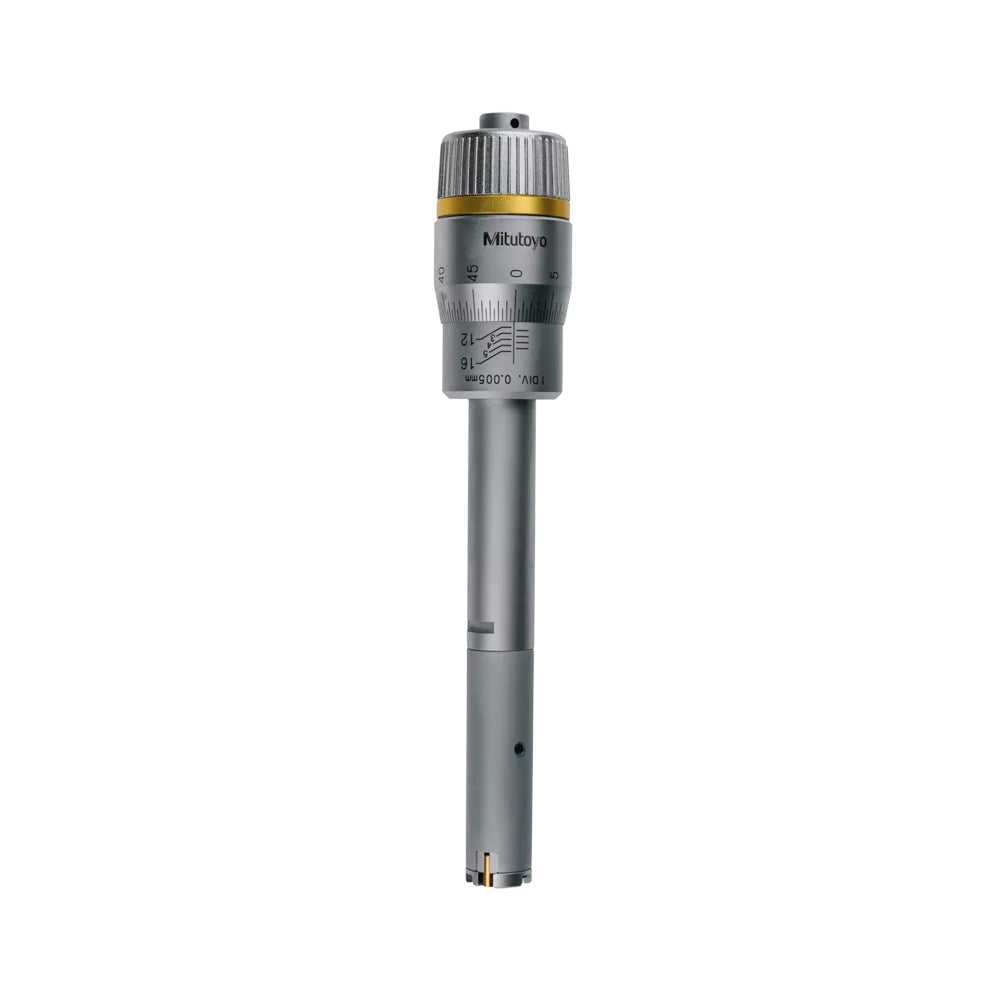

368-164 Holtest Bore Micrometer, 3-Point Contact, Range 12-16mm, Graduation 0.005mm

SKU:Code: 368-164

Sale Sold out Regular price £298.50
Save: 25% Sold out Sale price £298.50 Regular price £398.00
Excl. VAT
Analogue bore gauges are precision measurement instruments used to measure the inside diameter of a hole, cylinder, or other internal surfaces with high accuracy
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Standard
  • range 12-16mm
  • display type Non-Digital
  • graduations 0.005mm
  • max measuring depth 82mm
  • measuring units Metric
  • remarks 3-Point Contact
  • measuring face Titanium-coated measuring pins
  • with rings No
  • blind bore measurement Yes

A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement
