Mitutoyo

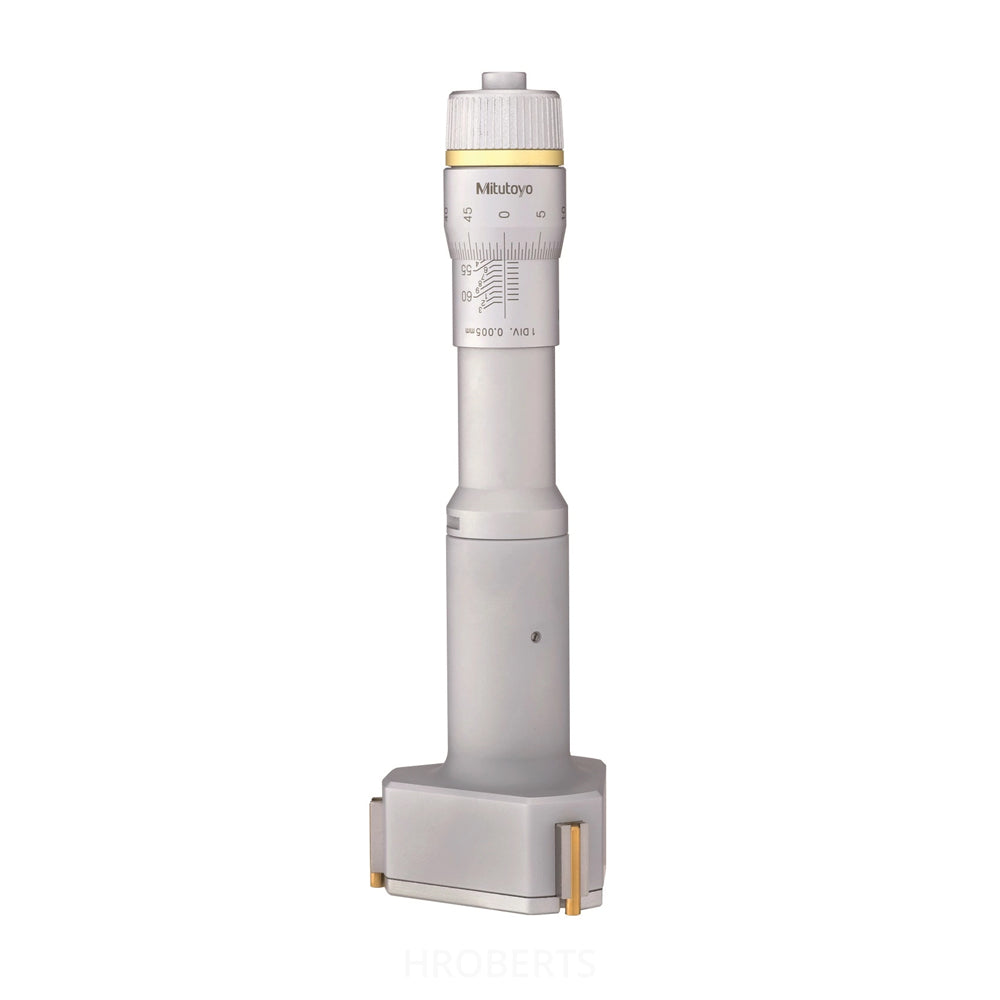

368-170 Holtest Bore Micrometer, 3-Point Contact, Range 50-63mm, Graduation 0.005mm
SKU:Code: 368-170
Sale
Sold out
Regular price
£402.00
Save: 25%
Sold out
Sale price
£402.00
Regular price
£536.00
Excl. VAT
Analogue bore gauges are precision measurement instruments used to measure the inside diameter of a hole, cylinder, or other internal surfaces with high accuracy
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Standard
- range 50-63mm
- display type Non-Digital
- graduations 0.005mm
- max measuring depth 105mm
- measuring units Metric
- remarks 3-Point Contact
- measuring face Titanium-coated measuring pins
- with rings No
- blind bore measurement Yes
description
description
A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement
technical drawings
PDF downloads
accessories
