Specification
Specification
- type Standard
- range 100-125mm
- display type Non-Digital
- graduations 0.005mm
- max measuring depth 161mm
- measuring units Metric
- remarks 3-Point Contact
- measuring face Titanium-coated measuring pins
- with rings No
- blind bore measurement Yes
description
description

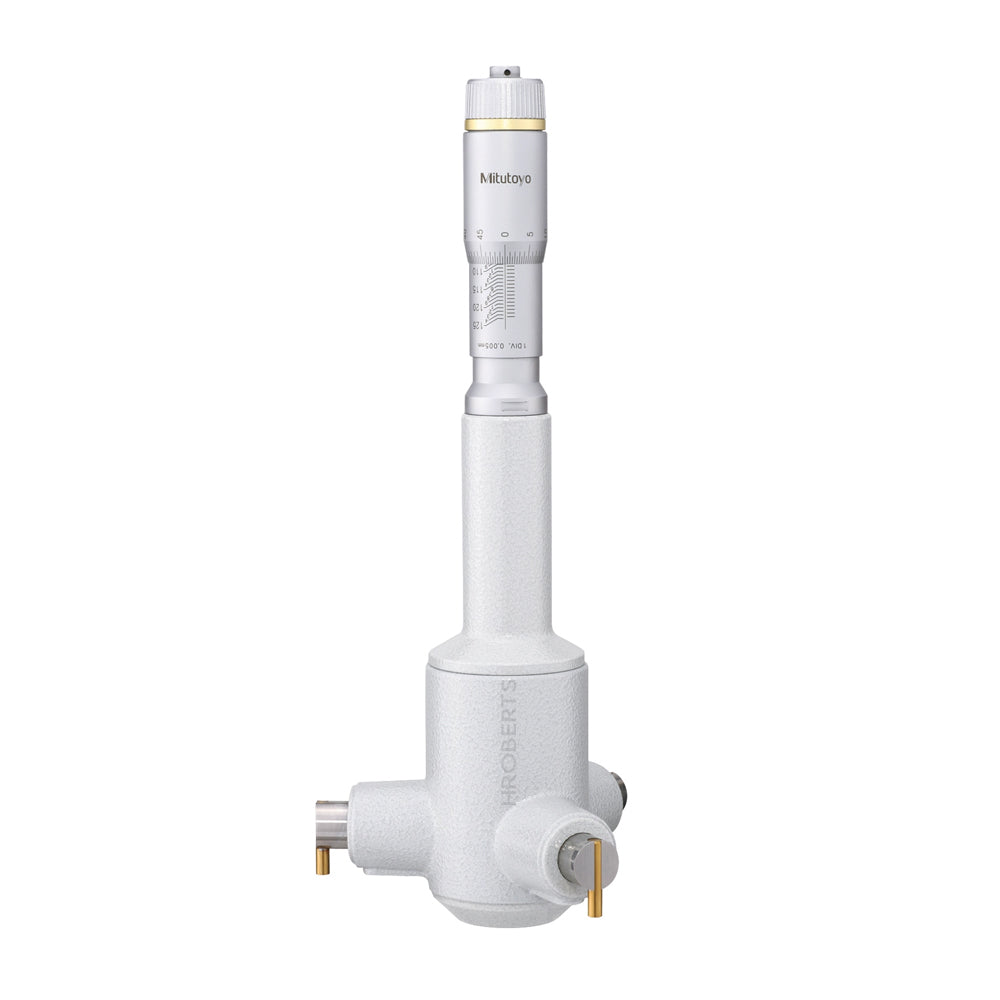

A non-digital 3-point Mitutoyo bore micrometer with titanium-coated measuring pins. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement
