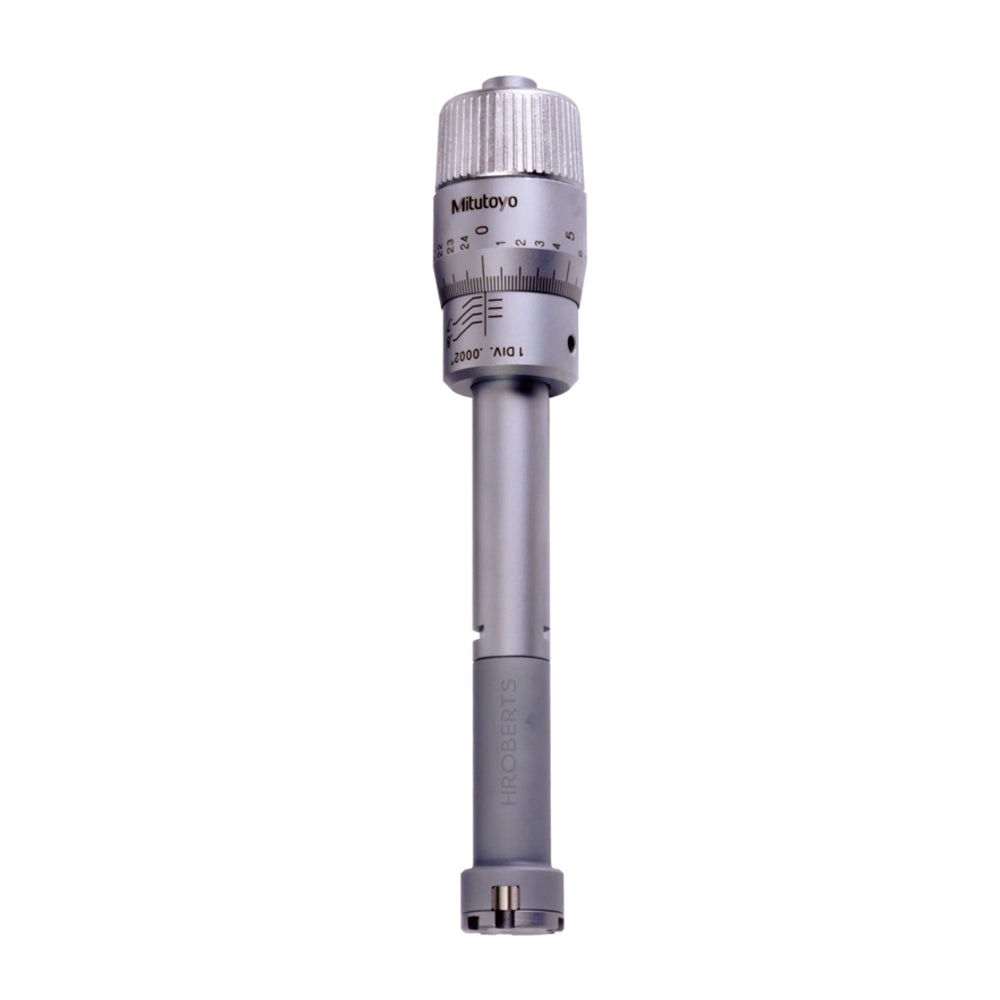

368-865 Holtest Bore Micrometer, 3-Point Contact, Range 0.65-0.8", Graduation 0.0002"

SKU:Code: 368-865

Sale Sold out Regular price £237.75
Save: 25% Sold out Sale price £237.75 Regular price £317.00
Excl. VAT
Analogue bore gauges are precision measurement instruments used to measure the inside diameter of a hole, cylinder, or other internal surfaces with high accuracy
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Standard
  • range 0.65-0.8"
  • display type Non-Digital
  • graduations 0.0002"
  • max measuring depth 82mm
  • measuring units Imperial
  • remarks 3-Point Contact
  • measuring face Hardened Steel Anvils
  • with rings No
  • blind bore measurement No

A non-digital 3-point Mitutoyo bore micrometer with Hardened Steel Anvils. The 3-point design enables stable measurement through automatic centering. The maximum measuring depth can be increased by 150mm using an optional extension rod if required. Ratchet stop guarantees repeatable measurement. Steel setting rings (optional) are available for accurate setting prior to measurement
