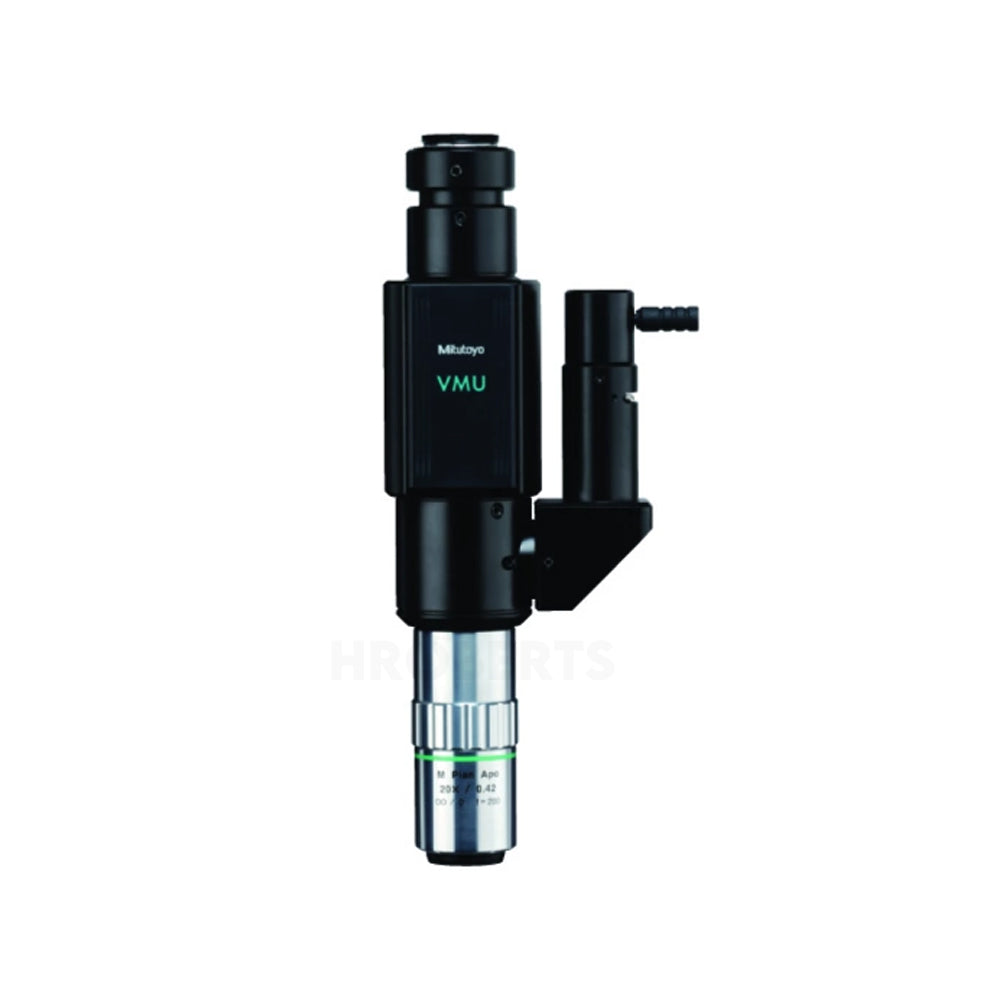

Mitutoyo 378-505 VMU-V, Video Microscope Unit, Vertical C-Mount
SKU:Code: 378-505
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Video Unit
- mass 570g
- remarks Vertical CCD Camera mount
- remarks 2 Fibre Optic Illumination unit mount
- applicable wavelengths Near Infared / Visable
The VMU-V is a high-quality reflected illumination unit designed for precision microscopy using near-infrared and visible light. It features a telecentric illumination system with an aperture stop, helping to deliver consistent, even lighting across the field of view—ideal for inspection and measurement applications.
The unit is designed for use with a fibre-optic illuminator (required, optional accessory), and can also be configured with an optional 21V / 150W halogen light source. The VMU-V is compatible with brightfield objective lenses including the M Plan Apo, M Plan Apo SL, and G Plan Apo ranges, making it a flexible choice for a wide range of microscope setups.
Key Features
Reflected illumination unit for brightfield observation
Telecentric illumination system with aperture stop
Supports near-infrared and visible radiation
Fibre optic illumination unit mount included
Compatible with M Plan Apo / M Plan Apo SL / G Plan Apo objectives
Optional halogen light source: 21V, 150W
Specifications
Model: VMU-V
Applicable wavelength: Near-infrared and visible radiation
Light source: Halogen bulb (21V, 150W) (optional)
Fibre-optic illuminator: Required (optional accessory)
Mass: 570 g
