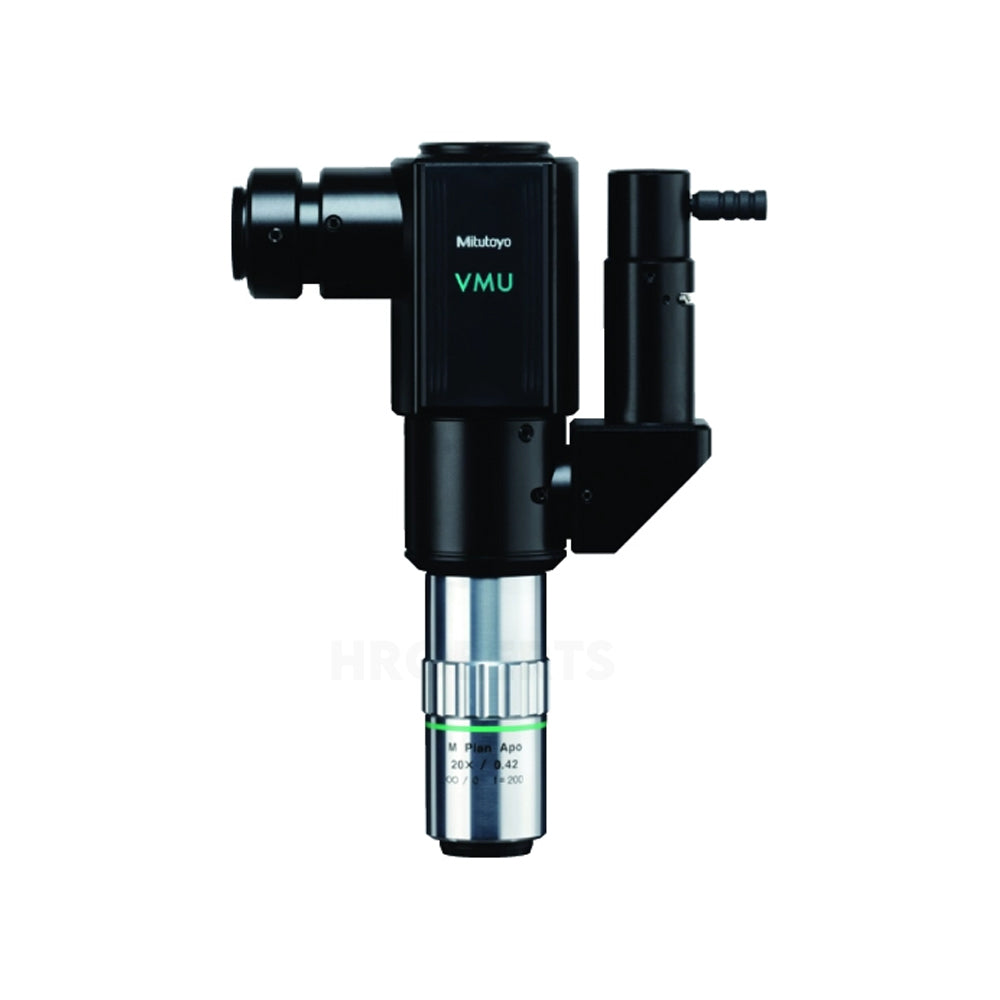

Mitutoyo 378-506 VMU-H, Video Microscope Unit, Horizontal C-Mount
SKU:Code: 378-506
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Video Unit
- mass 590g
- remarks Horizontal CCD Camera mount
- remarks 2 Fibre Optic Illumination unit mount
- applicable wavelengths Near Infared / Visable
Absolutely — here’s the VMU-H rewritten into a clean product description:
VMU-H Reflected Illumination Unit (Telecentric, Fibre-Optic Ready)
The VMU-H is a precision reflected illumination unit designed for brightfield microscopy using near-infrared and visible light. It features a telecentric illumination system with an aperture stop, helping to provide uniform, controlled lighting across the field of view—ideal for inspection and measurement applications.
The unit is designed for use with a fibre-optic illuminator (required, optional accessory) and can also be configured with an optional 21V / 150W halogen light source. The VMU-H is compatible with brightfield objective lens ranges including M Plan Apo, M Plan Apo SL, and G Plan Apo, making it a flexible option for a variety of microscope configurations.
Key Features
Reflected illumination unit for brightfield observation
Telecentric illumination system with aperture stop
Supports near-infrared and visible radiation
Fibre optic illumination unit mount included
Compatible with M Plan Apo / M Plan Apo SL / G Plan Apo objectives
Optional halogen light source: 21V, 150W
Specifications
Model: VMU-H
Applicable wavelength: Near-infrared and visible radiation
Light source: Halogen bulb (21V, 150W) (optional)
Fibre-optic illuminator: Required (optional accessory)
Mass: 590 g
