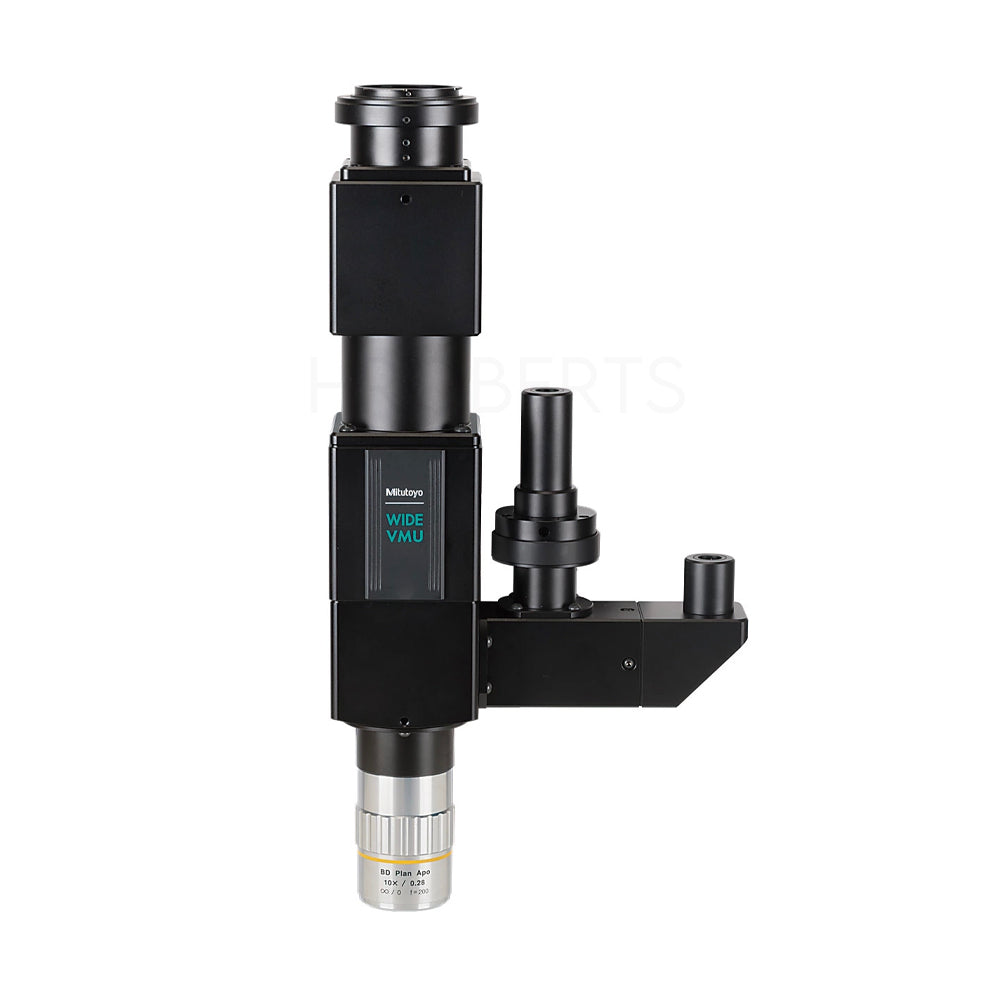

Mitutoyo 378-517 WIDE VMU-BDV, Wide-Field Video Microscope Unit, Vertical C-Mount
SKU:Code: 378-517
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Video Unit
- mass 2kg
- remarks Vertical CCD Camera mount
- remarks 2 Fibre Optic Illumination unit mount
- image type BD (Brightfield/ Darkfield) / Erect
The WIDE VMU-BDV is part of the advanced WIDE VMU series, delivering a field of view up to seven times larger than conventional video microscopy systems. Designed for high-performance inspection and analysis, this model supports both Bright Field (BF) and Dark Field (DF) observation, offering maximum flexibility in a single unit.
Supporting large-format sensors up to 2-inch equivalent / APS-C size, the system provides an impressive ø30 mm image field when used with a 1X tube lens, making it ideal for wide-area imaging without compromising optical quality.
The vertical camera mount and dual-port illumination mount allow flexible configuration and compact system design. Both F-mount and C-mount cameras can be installed, ensuring compatibility with a wide range of industrial imaging solutions. The objective lens is optional, allowing the system to be tailored to specific application requirements.
Key Features
Up to 7× larger field of view than conventional systems
Supports 2-inch equivalent / APS-C sensors
ø30 mm image field with 1X tube lens
Bright Field / Dark Field (BD) observation capability
Compatible with F-mount and C-mount cameras
Dual-port illumination mounting
Flexible configuration for compact arrangements
Objective lens optional
Specifications
Model: WIDE VMU-BDV
Camera mount: Vertical
Observation type: Bright Field / Dark Field (BD)
Illumination mount: Dual port
Mass: 2000 g
