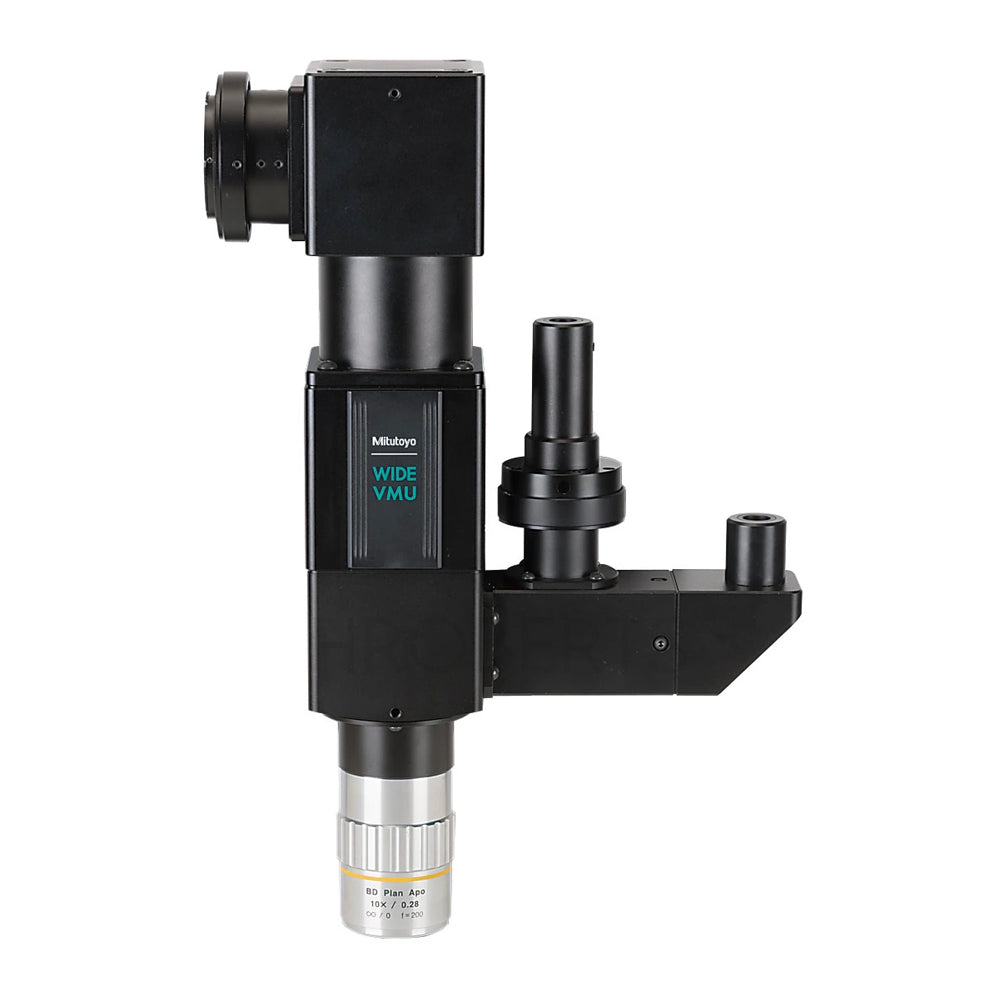

Mitutoyo 378-518 WIDE VMU-BDH, Wide-Field Video Microscope Unit, Horizontal C-Mount
SKU:Code: 378-518
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Video Unit
- mass 2.15kg
- remarks Horizontal CCD Camera mount
- remarks 2 Fibre Optic Illumination unit mount
- image type BD (Brightfield/ Darkfield) / Inverted
The WIDE VMU series takes video microscopy to the next level, offering a field of view up to seven times larger than conventional systems. Designed for advanced inspection and imaging applications, it supports both Bright Field (BF) and Dark Field (DF) observation for maximum versatility.
The WIDE VMU-BDH supports large-format sensors up to 2-inch equivalent / APS-C size and delivers an expansive ø30 mm image field when used with a 1X tube lens, making it ideal for wide-area imaging without sacrificing clarity or performance.
Compatible with both F-mount and C-mount cameras, the system integrates easily into industrial and scientific imaging environments. The horizontal camera mount and dual-port illumination mount allow flexible positioning and compact system configurations. The objective lens is optional, enabling tailored setups to suit specific application requirements.
Key Features
Up to 7× larger field of view than conventional models
Supports 2-inch equivalent / APS-C sensors
ø30 mm image field with 1X tube lens
Bright Field / Dark Field (BD) observation capability
Compatible with F-mount and C-mount cameras
Dual-port illumination mounting
Flexible configuration for compact arrangements
Objective lens optional
Specifications
Model: WIDE VMU-BDH
Camera mount: Horizontal
Observation type: Bright Field / Dark Field (BD)
Illumination mount: Dual port
Mass: 2150 g
