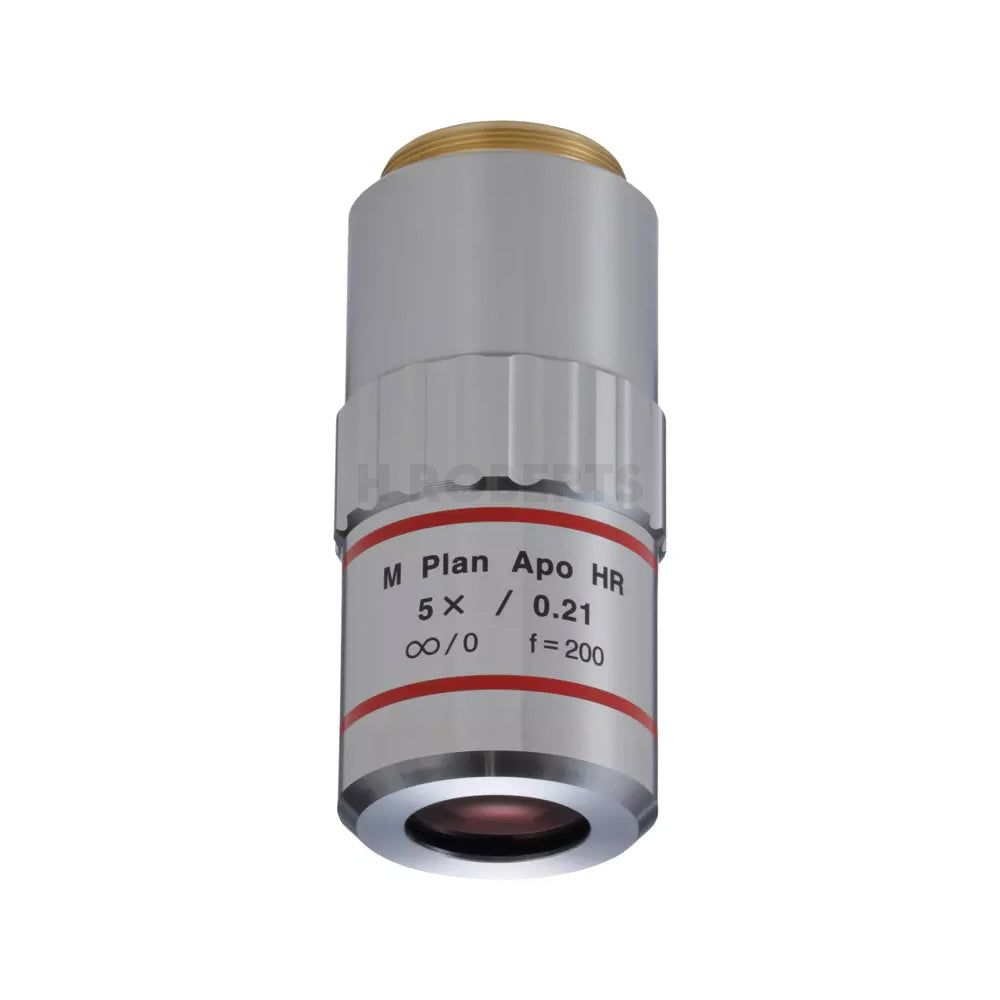

Mitutoyo 378-787-16 M Plan Apo HR 5X High resolution objective for bright-field observaton in visible range
SKU:Code: 378-787-16
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- mass 285g
- magnification 5x
- working distance 27mm
- numerical aperture 0.21
- working distance 27mm
- focal length 40mm
- resolving power (Microns) 1.3
- focal depth (Microns) 6.2
- view field 1 4.8mm Dia
- view field 2 0.96x1.28mm
M Plan Apo HR 5X Objective Lens (Brightfield, Extra-High Resolving Power)
The M Plan Apo HR 5X is a high-performance 5x microscope objective designed for brightfield observation across the visible spectrum. As part of the HR (High Resolution) range, this objective is engineered to deliver extra-high resolving power, making it ideal for inspection tasks where maximum detail is required at lower magnifications.
With a working distance of 25.5 mm, it provides excellent clearance while maintaining strong optical performance. The objective features an infinity-corrected design and is corrected across 436–656 nm for consistent imaging and reliable colour reproduction. With a numerical aperture of 0.21, it achieves a resolving power of 1.3 µm while maintaining a practical depth of field of 6.2 µm.
Compatible with VMU / FS-70 / MF-U / Hyper MF-U microscope systems, the M Plan Apo HR 5X is an excellent choice for high-clarity, wide-area observation where enhanced resolution is required.
Key Specifications
Magnification: 5x
Working Distance (in air): 25.5 mm
Numerical Aperture (N.A.): 0.21
Infinity corrected: Yes
Corrected wavelength range: 436–656 nm
High Resolution: Yes (HR series)
Resolving power: 1.3 µm
Depth of field: 6.2 µm
Field of view (ø24 mm eyepiece): ø4.8 mm
Field of view (1/2” camera chip): 0.96 × 1.28 mm

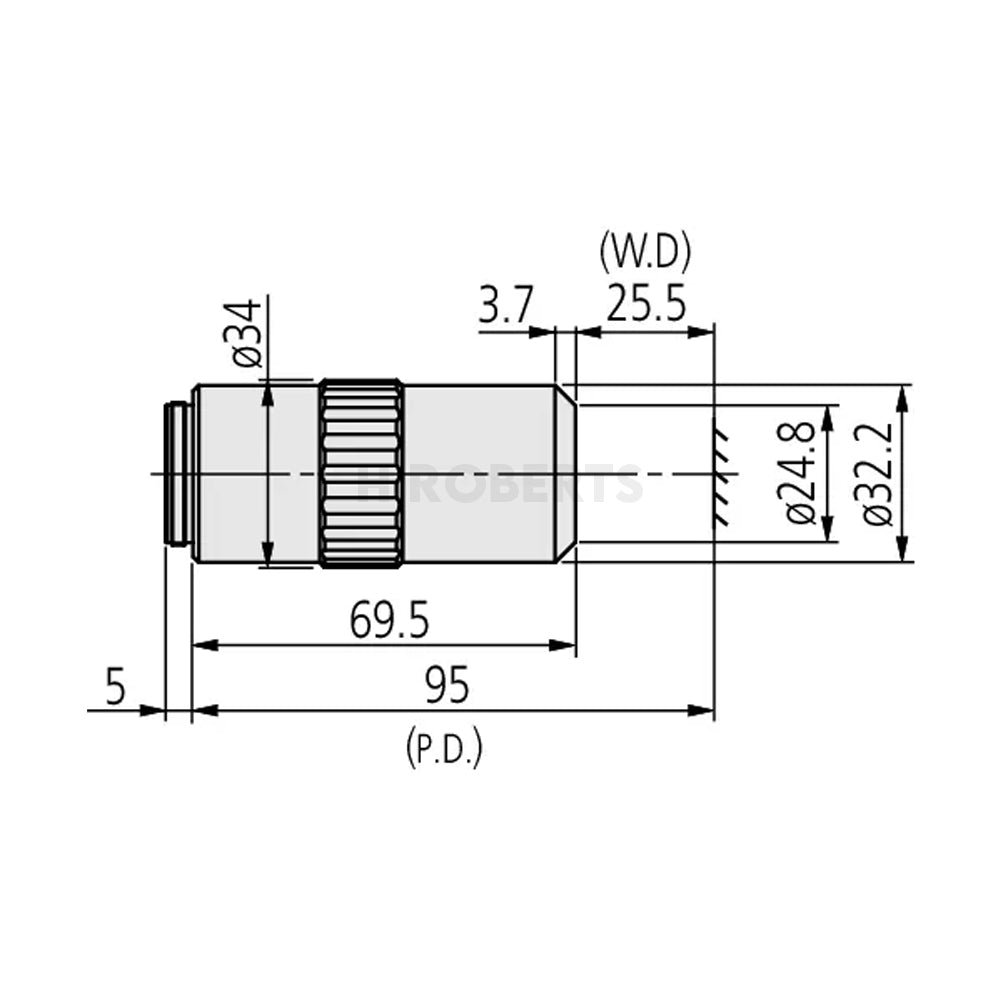

Parfocal distance (P.D.): 95 mm
Spectral range: VIS
Observation mode: Brightfield
Glass compensation: No
Mass: 285 g
