Mitutoyo 378-788-15 M Plan Apo HR 10X High resolution objective for bright-field observation in visible range
SKU:Code: 378-788-15
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- mass 450g
- magnification 10x
- working distance 15mm
- numerical aperture 0.42
- working distance 15mm
- focal length 20mm
- resolving power (Microns) 0.7
- focal depth (Microns) 1.6
- view field 1 2.4mm Dia
- view field 2 0.48x0.64mm

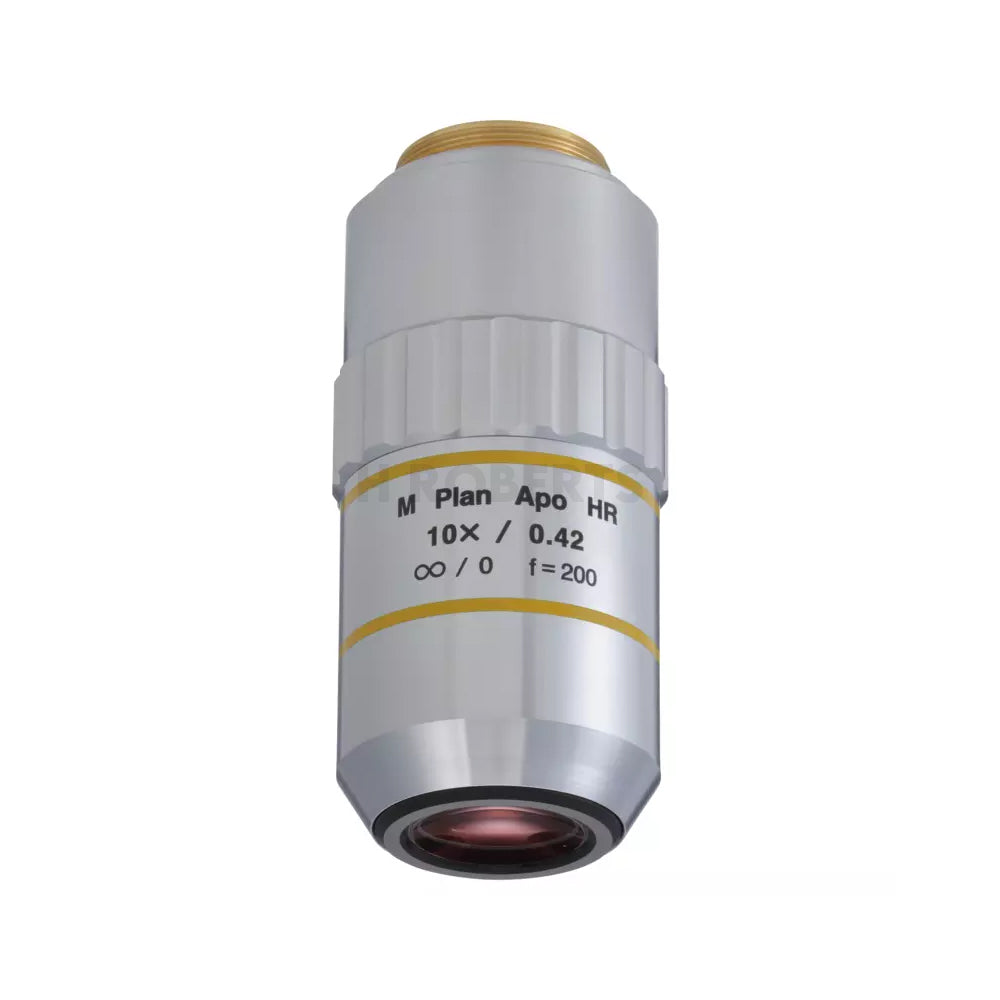

M Plan Apo HR 10X Objective Lens (Brightfield, Extra-High Resolving Power)
The M Plan Apo HR 10X is a high-performance 10x microscope objective designed for brightfield observation across the visible spectrum. As part of the HR (High Resolution) range, it is engineered to deliver extra-high resolving power, making it ideal for inspection and measurement applications where maximum clarity is required at mid-range magnification.
This objective features an infinity-corrected optical design and is corrected across 436–656 nm for consistent image quality and reliable colour reproduction. With a numerical aperture of 0.42, it provides excellent detail and contrast, achieving a resolving power of 0.7 µm. A working distance of 15 mm offers practical clearance while maintaining strong optical performance.
Compatible with VMU / FS-70 / MF-U / Hyper MF-U microscope systems, the M Plan Apo HR 10X is a premium option for precision brightfield microscopy where enhanced resolution is required.
Key Specifications
Magnification: 10x
Working Distance (in air): 15 mm
Numerical Aperture (N.A.): 0.42
Infinity corrected: Yes
Corrected wavelength range: 436–656 nm
High Resolution: Yes (HR series)
Resolving power: 0.7 µm
Depth of field: 1.6 µm
Field of view (ø24 mm eyepiece): ø2.4 mm
Field of view (1/2” camera chip): 0.48 × 0.64 mm

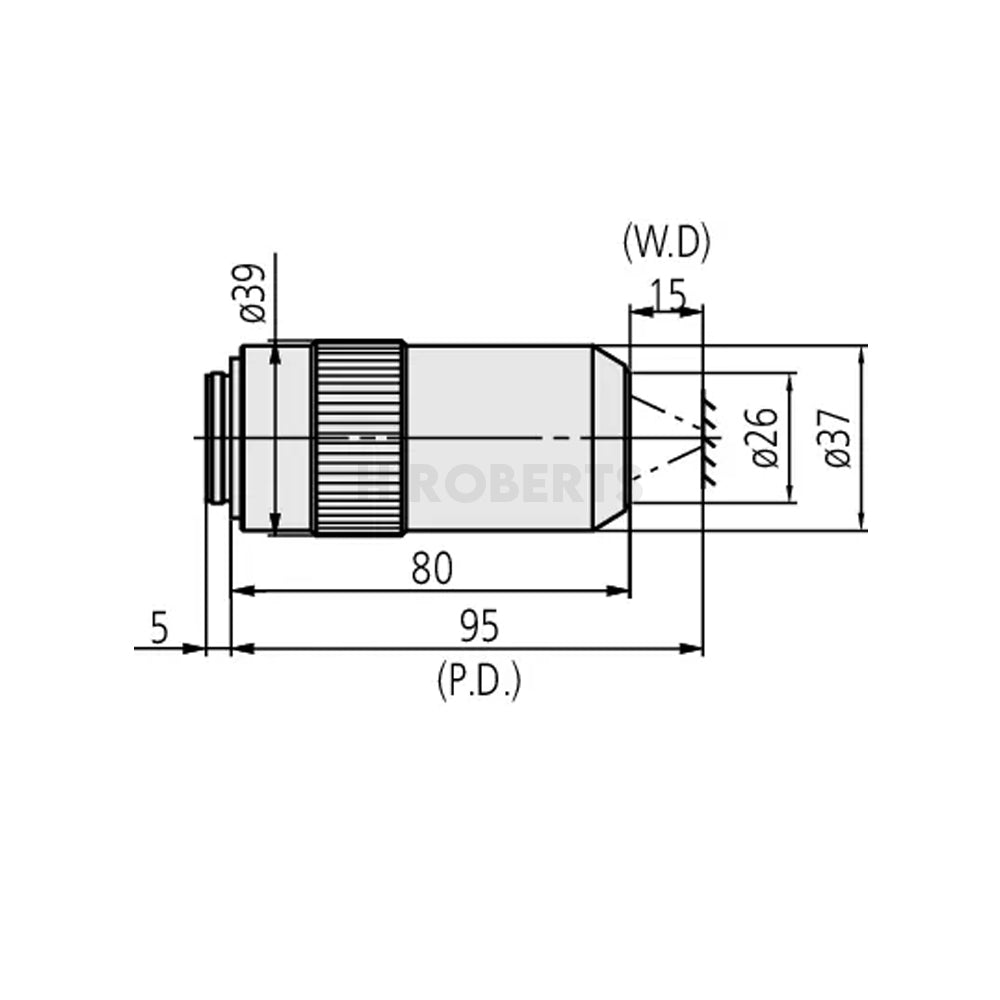

Parfocal distance (P.D.): 95 mm
Spectral range: VIS
Observation mode: Brightfield
Glass compensation: No
Mass: 455 g
