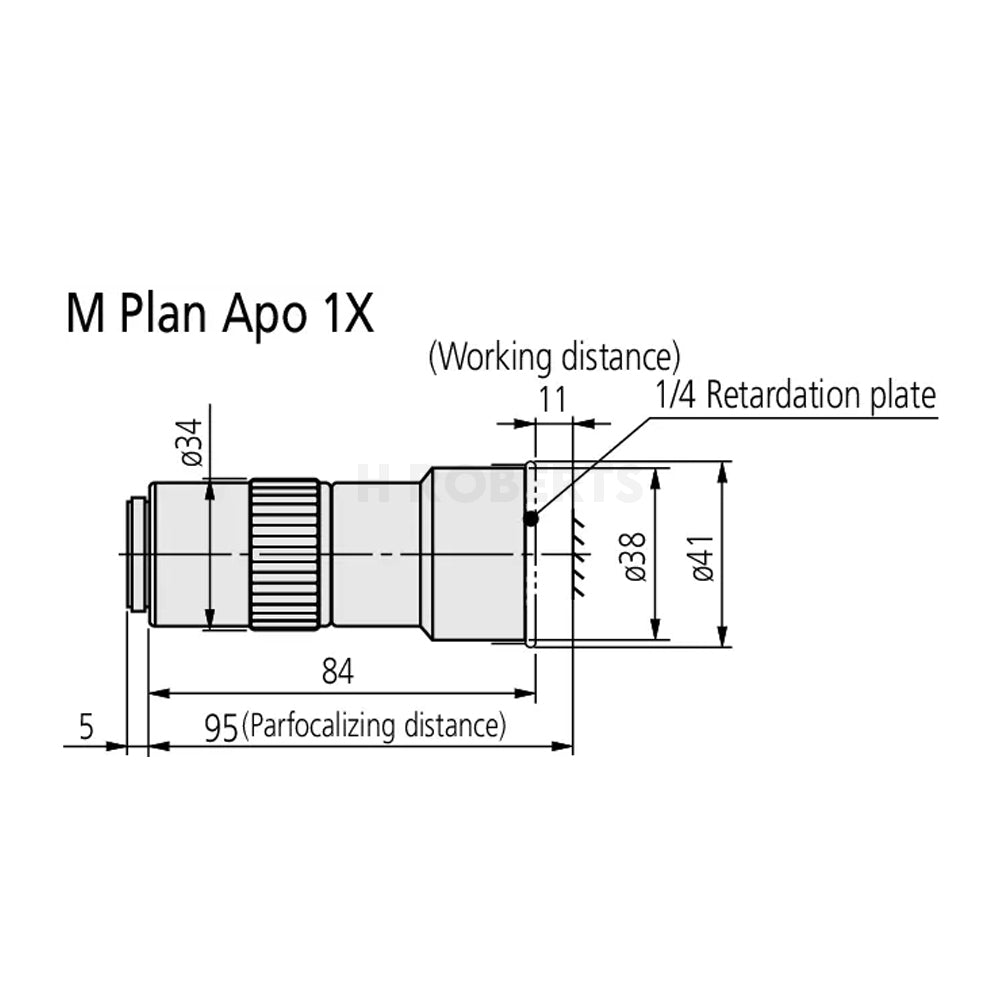

Mitutoyo 378-800-12 M Plan Apo 1X Objective for bright-field observation in visible range
SKU:Code: 378-800-12
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- mass 300g
- magnification 1x
- working distance 11mm
- numerical aperture 0.025
- working distance 11mm
- focal length 200mm
- resolving power (Microns) 11
- focal depth (Microns) 440
- view field 1 24mm Dia
- view field 2 4.8x6.4mm
M Plan Apo 1X Objective Lens (Brightfield, Ultra-Wide Field Overview)
The M Plan Apo 1X is a precision 1x microscope objective designed for brightfield observation across the visible spectrum. Ideal for overview inspection, sample positioning, and imaging large areas, this objective provides an exceptionally wide field of view while maintaining stable focus thanks to its very large depth of field.
With an infinity-corrected optical design and wavelength correction from 436–656 nm, the M Plan Apo 1X delivers consistent imaging performance for general observation and documentation. Its wide viewing capability allows a field of view of up to ø24 mm using a ø24 mm eyepiece, making it a strong choice for fast inspection and alignment tasks.
Compatible with VMU / FS-70 / MF-U / Hyper MF-U microscope systems, the M Plan Apo 1X is an excellent low-magnification option for wide-area brightfield observation.
Note: To avoid optical flare when using coaxial illumination, 1x objectives should be used together with a polarisation unit and an attached 1/4 wavelength plate.
Key Specifications
Magnification: 1x
Working Distance (in air): 13/11 mm
Numerical Aperture (N.A.): 0.025
Infinity corrected: Yes
Corrected wavelength range: 436–656 nm
Resolving power: 11 µm
Depth of field: 440 µm
Field of view (ø24 mm eyepiece): ø24 mm
Field of view (1/2” camera chip): 4.8 × 6.4 mm
Parfocal distance (P.D.): 95 mm
Spectral range: VIS
Observation mode: Brightfield
Glass compensation: No
Mass: 300 g
