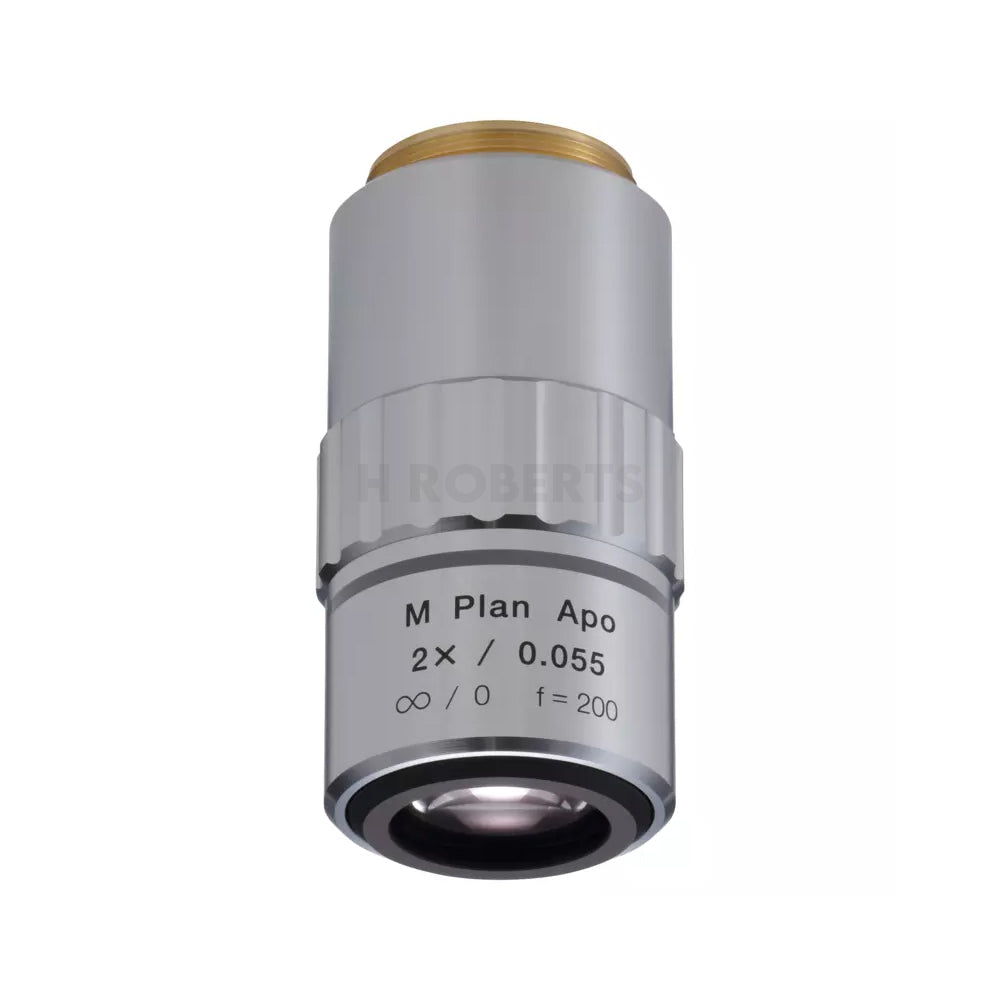

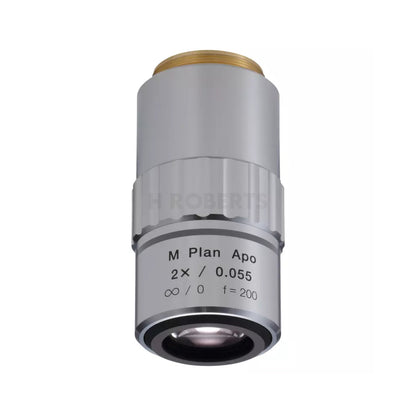

Mitutoyo 378-801-12 M Plan Apo 2X Objective for bright-field observation in visible range
SKU:Code: 378-801-12
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- mass 220g
- magnification 2x
- working distance 34mm
- numerical aperture 0.055
- working distance 34mm
- focal length 100mm
- resolving power (Microns) 5
- focal depth (Microns) 91
- view field 1 12mm Dia
- view field 2 2.4x3.2mm
M Plan Apo 2X Objective Lens (Brightfield, Wide Field, Long Working Distance)
The M Plan Apo 2X is a low-magnification 2x microscope objective designed for brightfield observation across the visible spectrum. With a long working distance of 34/30 mm, it is ideal for overview inspection, sample navigation, and imaging larger areas where maximum clearance is required.
This objective is infinity corrected and optimised across a wide wavelength range (436–656 nm) for consistent optical performance. With a numerical aperture of 0.055, it provides a wide field of view (up to ø12 mm using a ø24 mm eyepiece), making it a strong choice for general observation, alignment, and documentation.
Compatible with VMU / FS-70 / MF-U / Hyper MF-U microscope systems, the M Plan Apo 2X is a practical solution for wide-area inspection and low-power viewing.
Note: To avoid optical flare when using coaxial illumination, 1x objectives should be used together with a polarisation unit and an attached 1/4 wavelength plate.
Key Specifications
Magnification: 2x

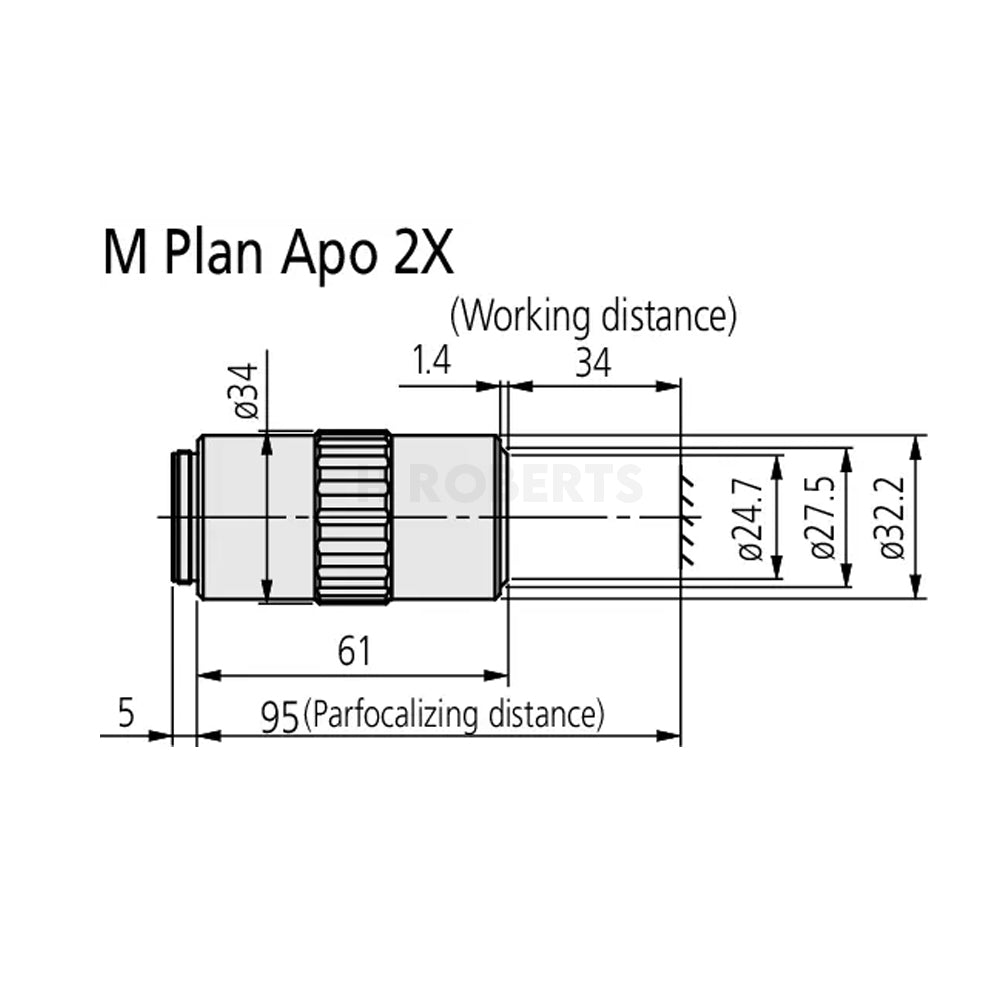

Working Distance (in air): 34/30 mm
Numerical Aperture (N.A.): 0.055
Infinity corrected: Yes
Corrected wavelength range: 436–656 nm
Resolving power: 5 µm
Depth of field: 91 µm
Field of view (ø24 mm eyepiece): ø12 mm
Field of view (1/2” camera chip): 2.4 × 3.2 mm
Parfocal distance (P.D.): 95 mm
Spectral range: VIS
Observation mode: Brightfield
Glass compensation: No
Mass: 220 g
