Mitutoyo 378-804-3 M Plan Apo 20X Objective for bright-field observation in visible range
SKU:Code: 378-804-3
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- mass 270g
- magnification 20x
- working distance 20mm
- numerical aperture 0.42
- working distance 20mm
- focal length 10mm
- resolving power (Microns) 0.7
- focal depth (Microns) 1.6
- view field 1 1.2mm Dia
- view field 2 0.24x0.32mm
M Plan Apo 20X Objective Lens (Brightfield, High Clarity Inspection)
The M Plan Apo 20X is a precision 20x metallurgical microscope objective designed for brightfield observation across the visible spectrum. With a 20 mm working distance, it offers a strong balance between magnification, resolution, and practical clearance—making it ideal for routine inspection, measurement, and surface analysis applications.
This objective features an infinity-corrected optical design and is corrected across 436–656 nm for consistent image quality and reliable colour performance. With a numerical aperture of 0.42, it delivers sharp detail with a resolving power of 0.7 µm, while maintaining a useful depth of field of 1.6 µm for stable focusing.
Compatible with VMU / FS-70 / MF-U / Hyper MF-U microscope systems, the M Plan Apo 20X is a dependable choice for high-quality brightfield microscopy.
Note: To avoid optical flare when using coaxial illumination, 1x objectives should be used together with a polarisation unit and an attached 1/4 wavelength plate.
Key Specifications
Magnification: 20x
Working Distance (in air): 20 mm
Numerical Aperture (N.A.): 0.42
Infinity corrected: Yes
Corrected wavelength range: 436–656 nm
Resolving power: 0.7 µm
Depth of field: 1.6 µm
Field of view (ø24 mm eyepiece): ø1.2 mm
Field of view (1/2” camera chip): 0.24 × 0.32 mm

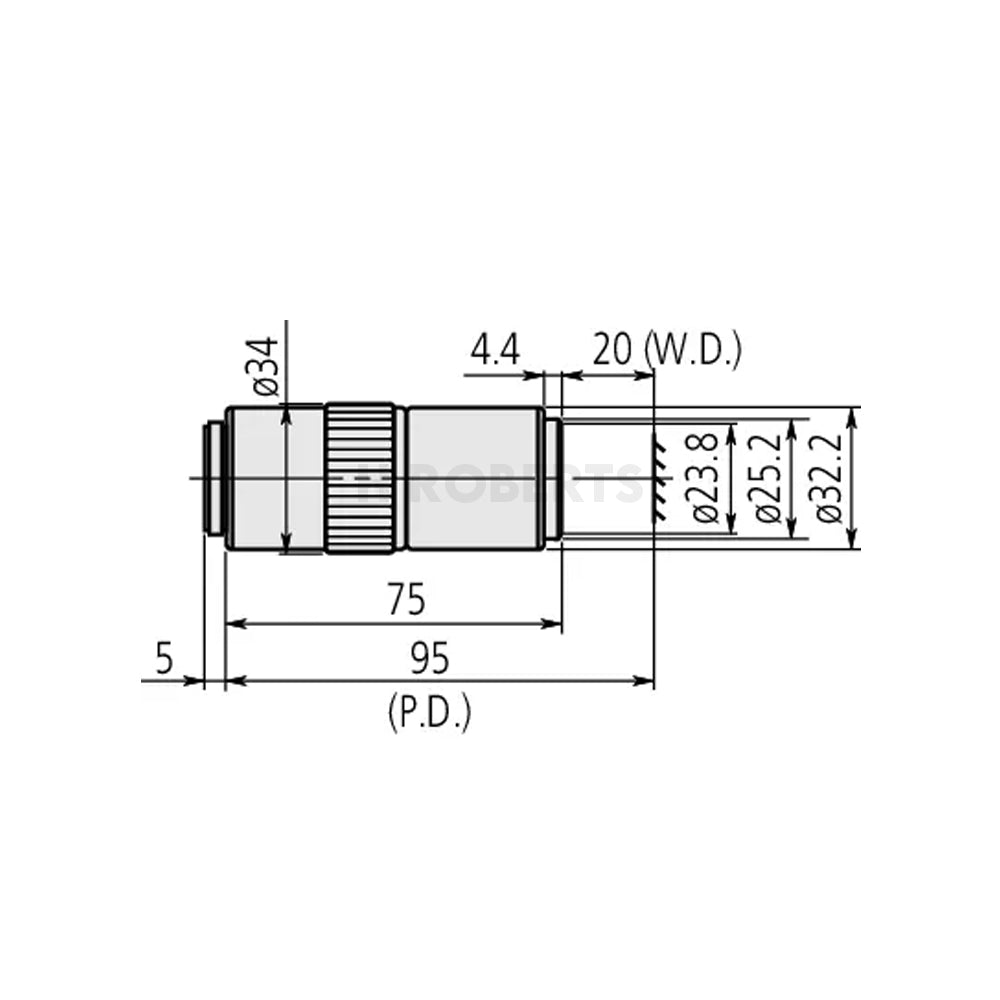

Parfocal distance (P.D.): 95 mm
Spectral range: VIS
Observation mode: Brightfield
Glass compensation: No
Mass: 270 g
