Mitutoyo 378-806-3 M Plan Apo 100X Objective for bright-field observation in visible range
SKU:Code: 378-806-3
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- mass 320g
- magnification 100x
- working distance 6mm
- numerical aperture 0.7
- working distance 6mm
- focal length 2mm
- resolving power (Microns) 0.4
- focal depth (Microns) 0.6
- view field 1 0.24mm Dia
- view field 2 0.05x0.06mm

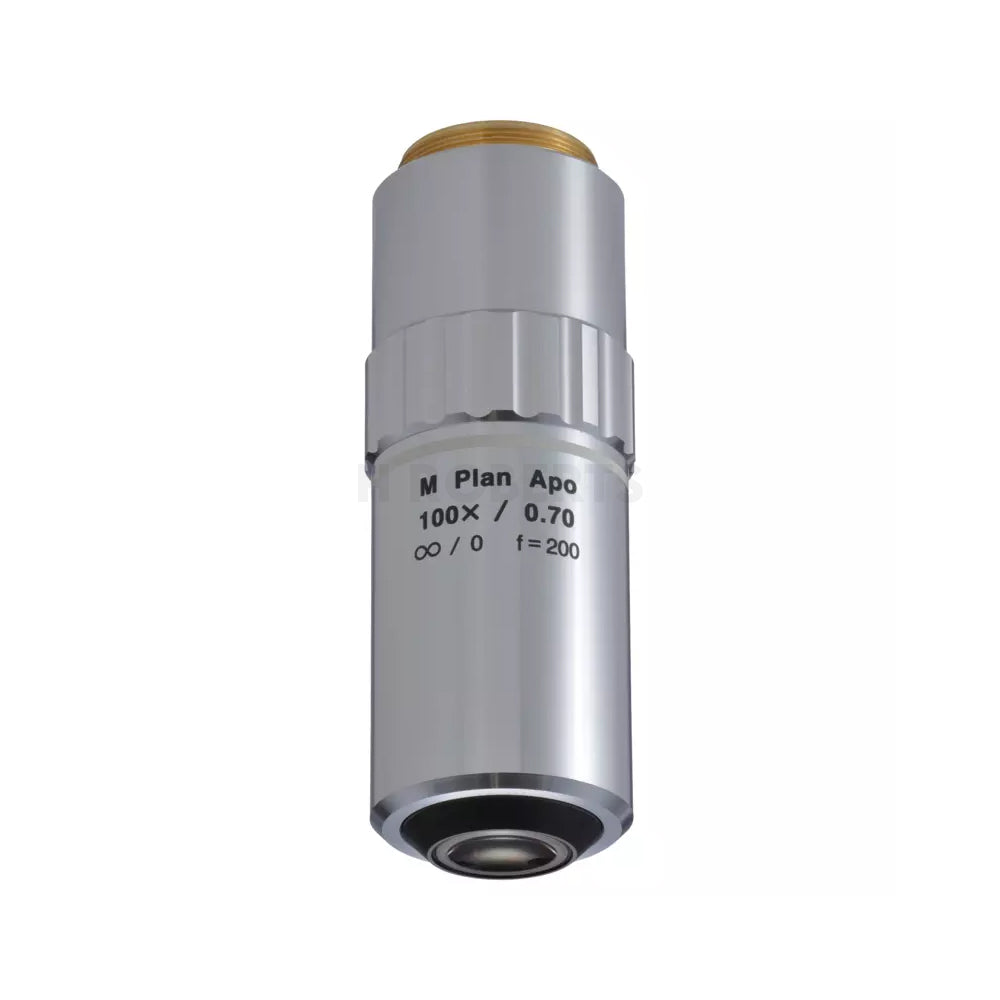

M Plan Apo 100X Objective Lens (Brightfield, High N.A. for Fine Detail)
The M Plan Apo 100X is a high-performance 100x metallurgical microscope objective designed for brightfield observation across the visible spectrum. With a numerical aperture of 0.7, it delivers excellent fine-detail imaging and improved resolving power for demanding inspection and measurement applications.
This objective features an infinity-corrected optical design and is corrected across 436–656 nm, ensuring consistent image quality and reliable colour performance. With a 6 mm working distance, it provides a practical balance between high magnification and sample clearance.
Compatible with VMU / FS-70 / MF-U / Hyper MF-U microscope systems, the M Plan Apo 100X is a strong choice for precision surface inspection where maximum detail is required.
Note: To avoid optical flare when using coaxial illumination, 1x objectives should be used together with a polarisation unit and an attached 1/4 wavelength plate.

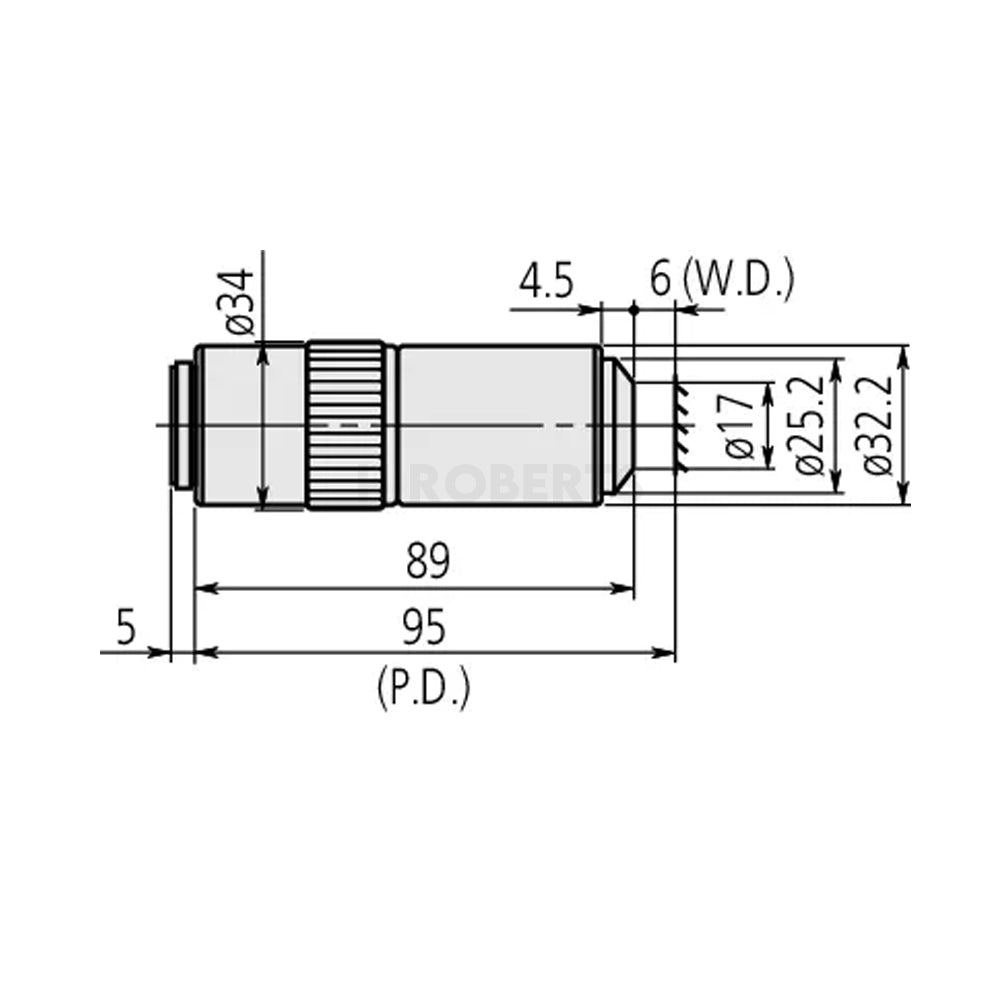

Key Specifications
Magnification: 100x
Working Distance (in air): 6 mm
Numerical Aperture (N.A.): 0.7
Infinity corrected: Yes
Corrected wavelength range: 436–656 nm
Resolving power: 0.4 µm
Depth of field: 0.6 µm
Field of view (ø24 mm eyepiece): ø0.24 mm
Field of view (1/2” camera chip): 0.05 × 0.06 mm
Parfocal distance (P.D.): 95 mm
Spectral range: VIS
Observation mode: Brightfield
Glass compensation: No
Mass: 320 g
