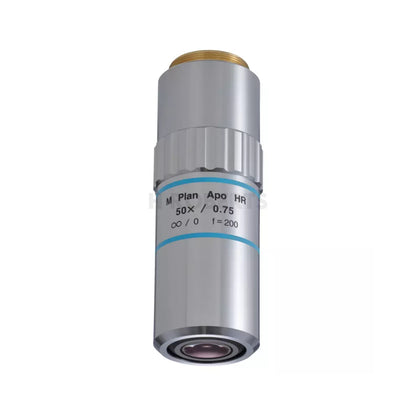

Mitutoyo 378-814-4 M Plan Apo HR 50X High resolution objective for bright-field observation in visible range
SKU:Code: 378-814-4
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- mass 400g
- magnification 50x
- working distance 5.2mm
- numerical aperture 0.75
- working distance 5.2mm
- focal length 4mm
- resolving power (Microns) 0.4
- focal depth (Microns) 0.49
- view field 1 0.48mm Dia
- view field 2 0.10x0.13mm

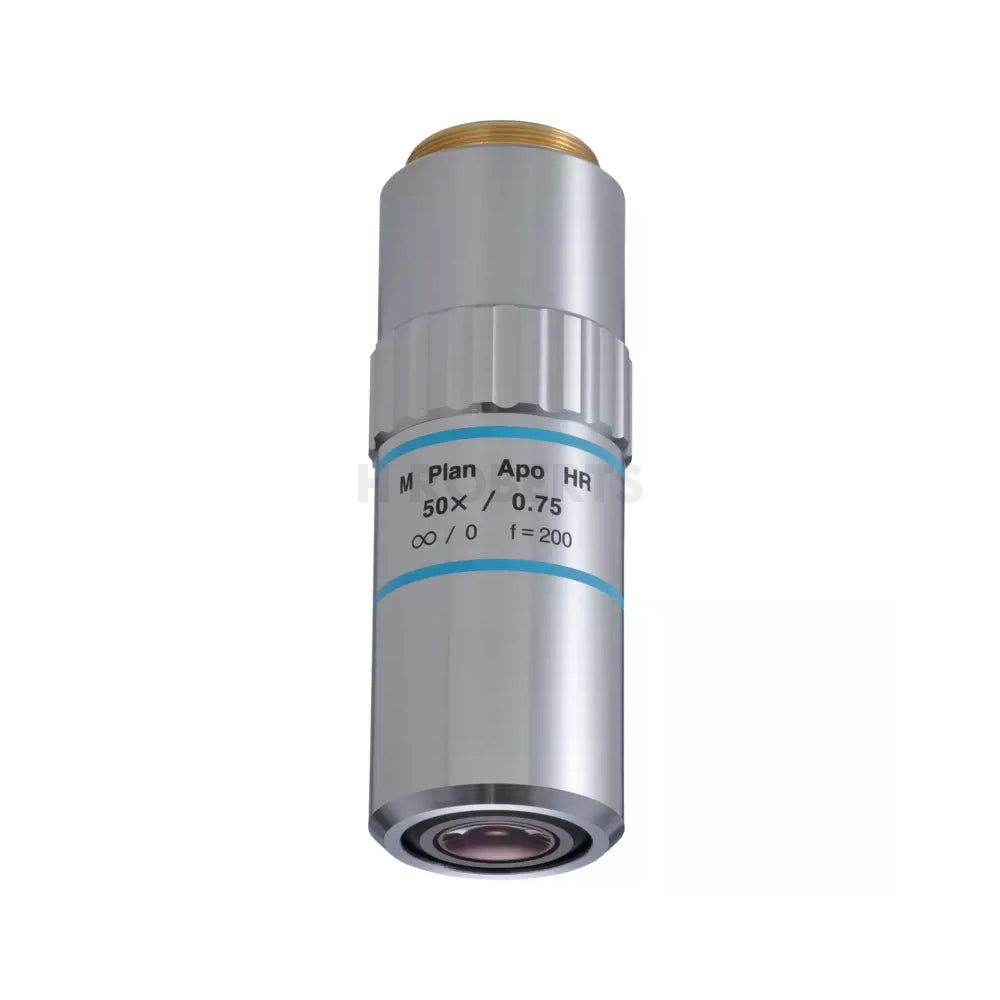

M Plan Apo HR 50X Objective Lens (Brightfield, Extra-High Resolving Power)
The M Plan Apo HR 50X is a premium 50x metallurgical microscope objective designed for brightfield observation across the visible spectrum. As part of the HR (High Resolution) series, this objective is engineered for maximum detail and contrast, making it ideal for demanding inspection and measurement applications.
With a high numerical aperture of 0.75, it delivers exceptional fine-detail imaging with a resolving power of 0.4 µm. The objective is infinity corrected and optically optimised across 436–656 nm, ensuring consistent performance and reliable image quality. A working distance of 5.2 mm provides practical clearance while maintaining extremely high optical resolution.
Compatible with VMU / FS-70 / MF-U / Hyper MF-U microscope systems, the M Plan Apo HR 50X is an excellent choice for precision surface inspection where enhanced resolving power is essential.
Key Specifications
Magnification: 50x
Working Distance (in air): 5.2 mm
Numerical Aperture (N.A.): 0.75
Infinity corrected: Yes
Corrected wavelength range: 436–656 nm
High Resolution: Yes (HR series)
Resolving power: 0.4 µm
Depth of field: 0.49 µm
Field of view (ø24 mm eyepiece): ø0.48 mm
Field of view (1/2” camera chip): 0.1 × 0.13 mm

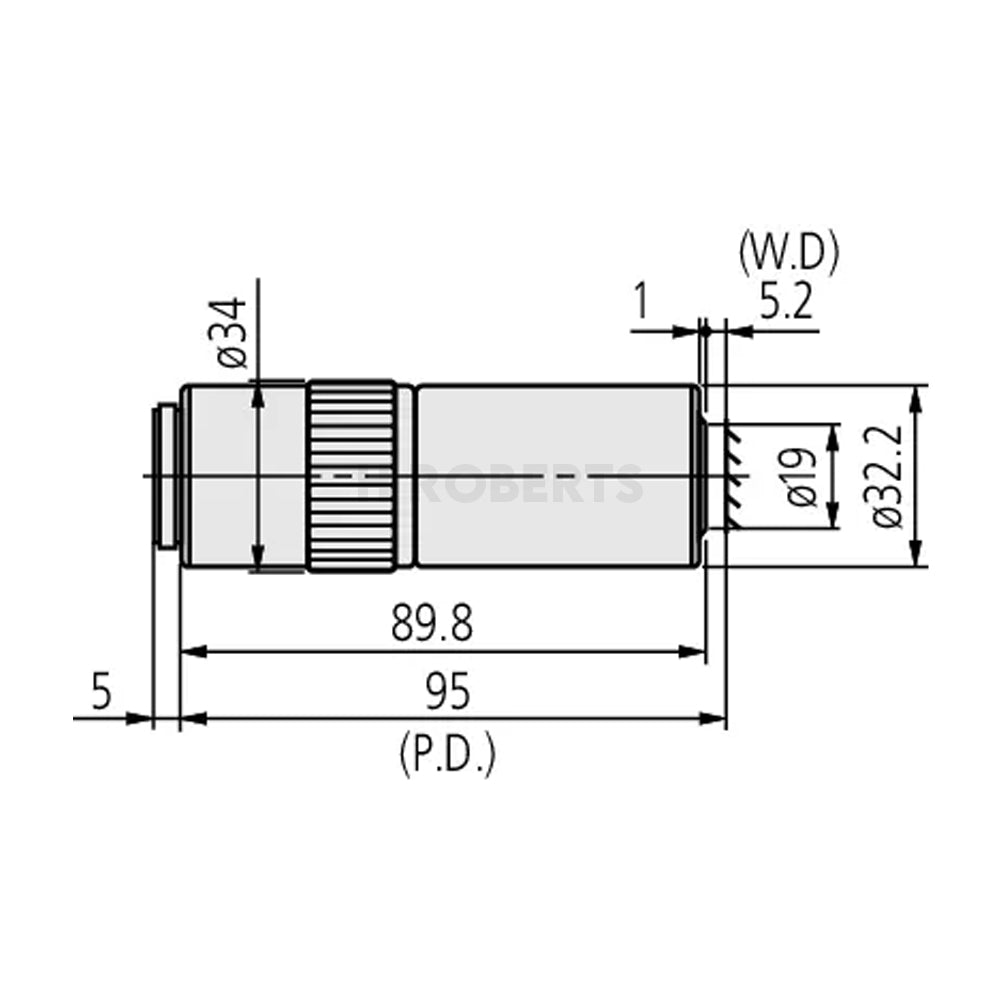

Parfocal distance (P.D.): 95 mm
Spectral range: VIS
Observation mode: Brightfield
Glass compensation: No
Mass: 400 g
