Mitutoyo 378-815-4 M Plan Apo HR 100X High resolution objective for bright-field observation in visible range
SKU:Code: 378-815-4
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- mass 410g
- magnification 100x
- working distance 1.3mm
- numerical aperture 0.9
- working distance 1.3mm
- focal length 2mm
- resolving power (Microns) 0.3
- focal depth (Microns) 0.34
- view field 1 0.24mm Dia
- view field 2 0.05x0.06mm

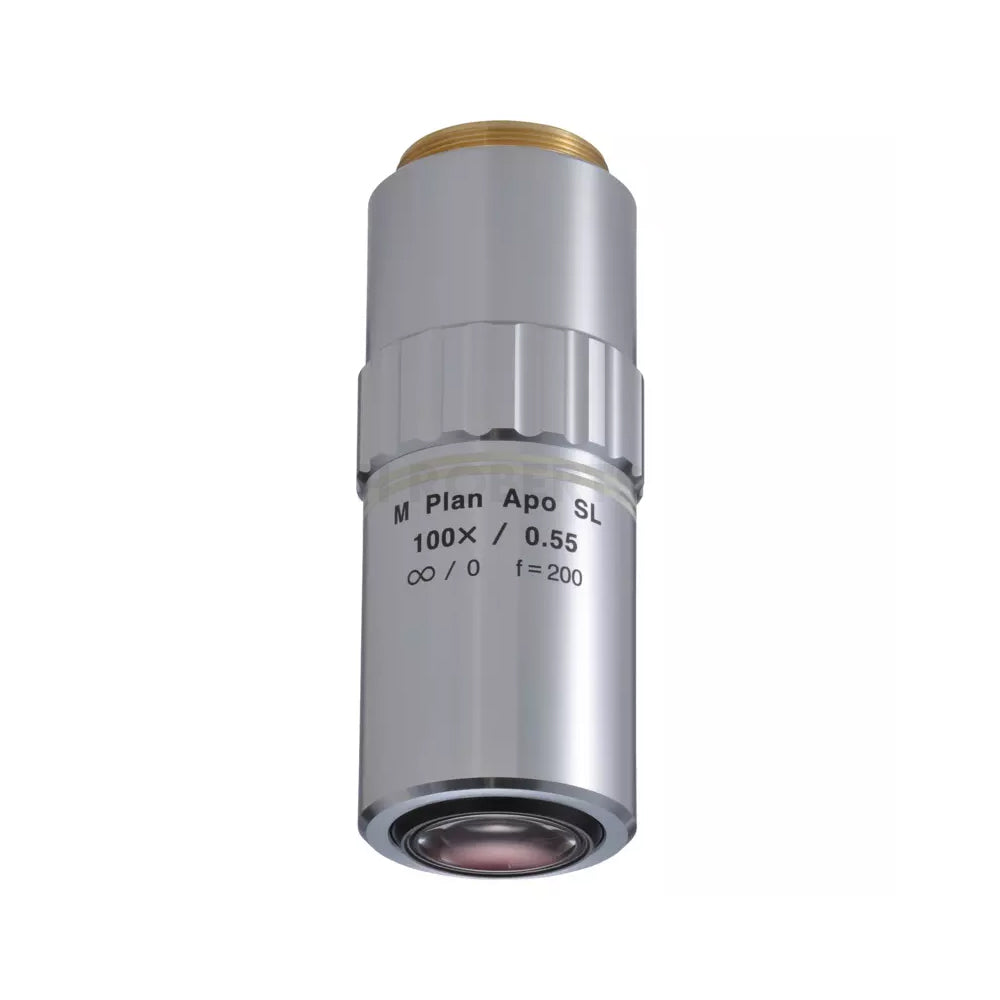

M Plan Apo SL 100X Objective Lens (Brightfield, Extra-Long Working Distance)
The M Plan Apo SL 100X is a precision 100x metallurgical microscope objective designed for brightfield observation across the visible spectrum. With an extra-long working distance of 13 mm, it is ideal for high-magnification inspection where additional clearance is required between the lens and the sample.
This objective is infinity corrected and optimised across a wide wavelength range (436–656 nm) for consistent optical performance. Featuring a numerical aperture of 0.55, it delivers excellent detail with a resolving power of 0.5 µm and a depth of field of 0.9 µm, making it well suited for demanding surface inspection and precision observation tasks.
Compatible with VMU / FS-70 / MF-U / Hyper MF-U microscope systems, the M Plan Apo SL 100X offers dependable high-magnification imaging in a robust design.
Key Specifications
Magnification: 100x
Working Distance (in air): 13 mm (extra-long)
Numerical Aperture (N.A.): 0.55
Infinity corrected: Yes
Corrected wavelength range: 436–656 nm
Resolving power: 0.5 µm
Depth of field: 0.9 µm
Field of view (ø24 mm eyepiece): ø0.24 mm
Field of view (1/2” camera chip): 0.05 × 0.06 mm

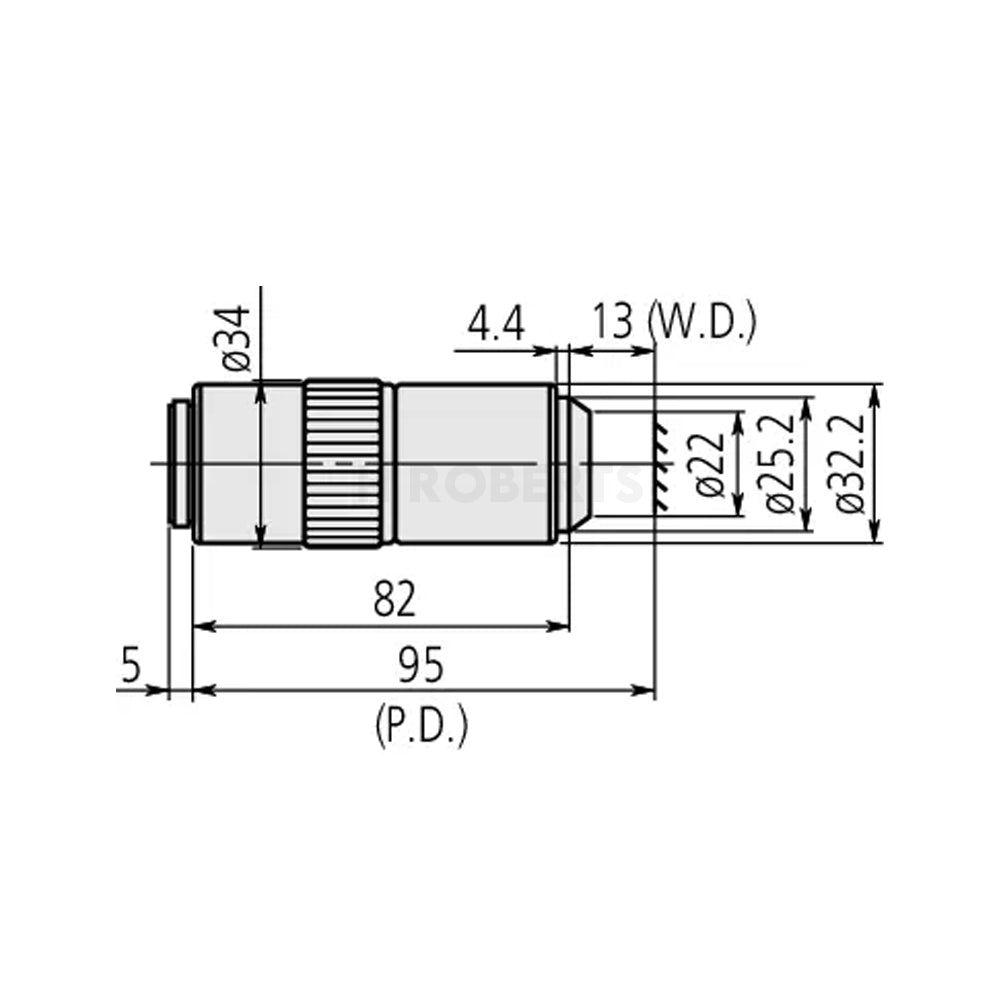

Parfocal distance (P.D.): 95 mm
Spectral range: VIS
Observation mode: Brightfield
Glass compensation: No
