Mitutoyo 378-820-8 LCD Plan Apo NUV 50X(t0.7) Objective for bright-field observation in near ultraviolett range with cover glass compensation
SKU:Code: 378-820-8
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Objective Lens
- mass 350g
- magnification 50x
- working distance 14.76mm
- numerical aperture 0.42
- working distance 14.76mm
- focal length 4mm
- resolving power (Microns) 0.7
- focal depth (Microns) 1.6
- view field 1 0.48mm Dia
- view field 2 0.10x0.13mm
The LCD Plan Apo NUV 50X (t0.7) is a high-quality plan apochromat objective designed for bright field inspection and laser applications through 0.7 mm or 1.1 mm LCD cover glass (BK-7). Engineered for precision imaging, it provides wavelength correction from the visible spectrum down to near-ultraviolet (355 nm), making it ideal for advanced inspection and near-UV laser processing applications.
With a long working distance of 15 mm through 0.7 mm glass, this objective offers excellent clearance while maintaining strong optical performance. Its infinity-corrected plan apochromat design ensures flat-field imaging and superior chromatic correction across the extended wavelength range.
The lens includes dedicated LCD glass thickness compensation, ensuring optimal image quality when observing through specified substrate materials. A High Resolution (HR) variant is also available (LCD Plan Apo NUV HR) for applications requiring enhanced resolving performance.
Compatible with VMU and FS-70 microscope systems, the LCD Plan Apo NUV 50X is well suited for precision inspection, laser processing observation, and demanding near-UV applications.
Key Features
Suitable for bright field inspection and laser applications
Designed for use through 0.7 mm or 1.1 mm LCD cover glass (BK-7)
High-quality Plan Apochromat optical design
Wavelength correction from 355–620 nm (Visible to Near-UV)
Long working distance design
Glass thickness compensated
Infinity corrected
HR version available for higher resolving performance

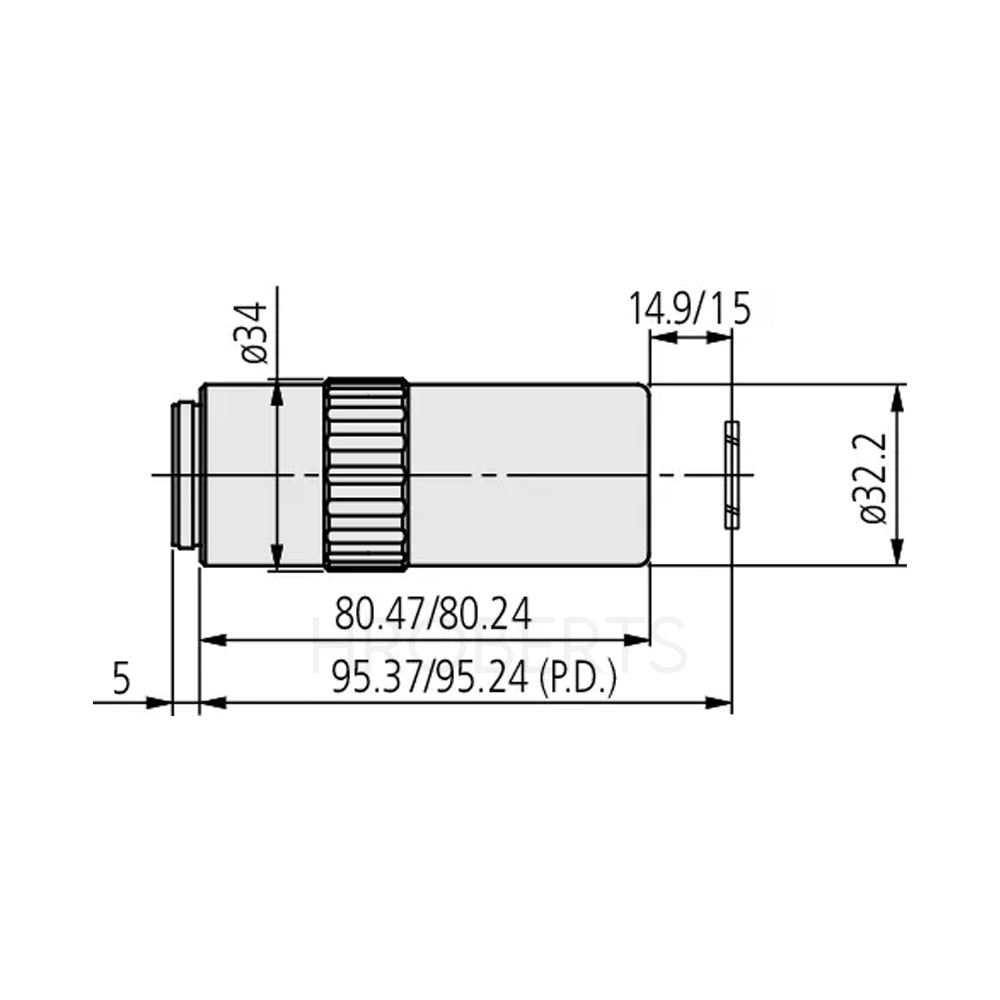

Specifications
Model: LCD Plan Apo NUV 50X (t0.7)
Magnification: 50x
Glass thickness correction: t0.7 mm BK-7
Working distance (through glass): 15 mm
Working distance (in air): 14.76 mm
Numerical Aperture (N.A.): 0.44
Corrected wavelength range: 355–620 nm
Resolving power: 0.6 µm
Depth of focus: 1.4 µm
Field of view (ø24 mm eyepiece): ø0.48 mm
Field of view (1/2” camera chip): 0.1 × 0.13 mm
Parfocal distance (P.D.): 95 mm
Spectral range: Near-UV (NUV)
Observation mode: Brightfield
Glass compensation: Yes
High Resolution: No (HR version available)
Laser applications: Yes
Mass: 350 g
