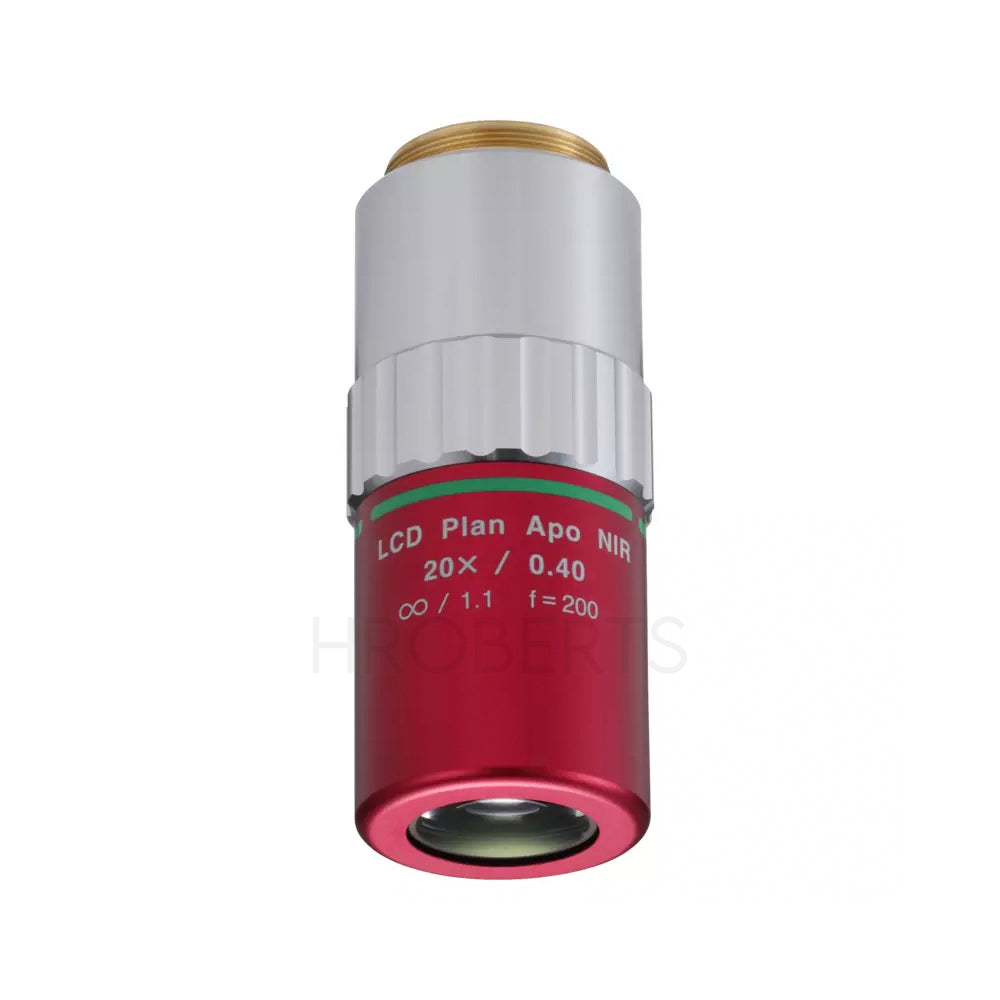

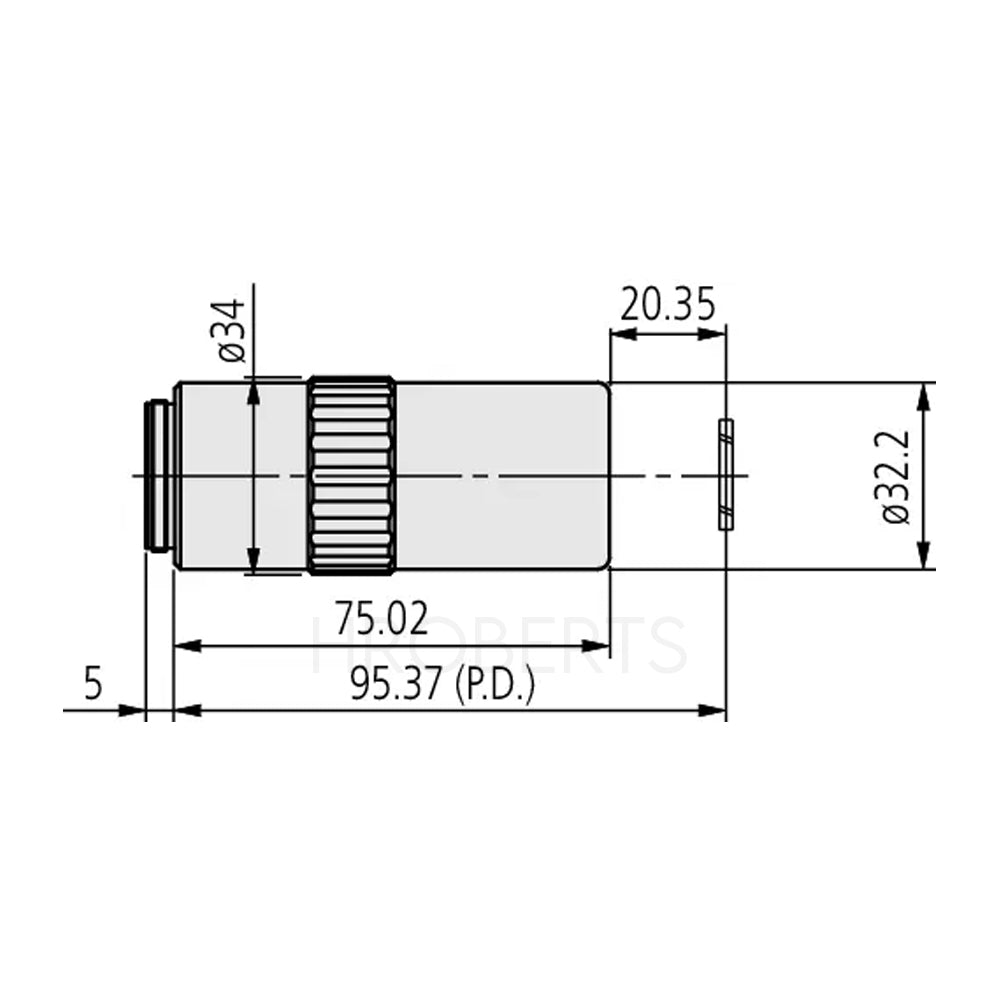

Mitutoyo 378-827-16 LCD Plan Apo NIR 20x(t1.1) Objective for BF observation in near-infrared with cover glass compensation
SKU:Code: 378-827-16
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Objective Lens
- mass 305g
- magnification 20x
- working distance 19.98mm
- numerical aperture 0.4
- working distance 19.98mm
- focal length 10mm
- resolving power (Microns) 0.7
- focal depth (Microns) 1.7
- view field 1 1.2mm Dia
- view field 2 0.24x0.32mm
The LCD Plan Apo NIR 20X (t1.1) is a precision plan apochromat objective designed for bright field inspection and laser-based repair applications through 1.1 mm LCD cover glass (BK-7). With wavelength correction from the visible spectrum up to near-infrared (480–1800 nm), it is ideally suited for NIR inspection, semiconductor analysis, and laser processing environments.
Engineered with a high-quality infinity-corrected plan apochromat design, this objective delivers flat-field imaging and excellent chromatic correction across the extended visible-to-NIR wavelength range. Dedicated LCD glass thickness compensation ensures optimal performance when observing through 1.1 mm glass substrates.
With a working distance of 20.35 mm through 1.1 mm glass, the objective provides excellent clearance while maintaining strong optical performance for mid-range magnification applications.
Compatible with VMU and FS-70 microscope systems, the LCD Plan Apo NIR 20X (t1.1) is ideal for precision inspection and laser-based repair processes.
Note: Working distance values may be specified in air rather than through LCD glass, depending on model configuration.
Key Features
Suitable for bright field inspection and laser-based repair applications
Designed for use through 1.1 mm LCD cover glass (BK-7)
High-quality Plan Apochromat optical design
Wavelength correction from 480–1800 nm (Visible to Near-Infrared)
Long working distance design
Glass thickness compensated
Infinity corrected
Specifications
Model: LCD Plan Apo NIR 20X (t1.1)
Magnification: 20x
Glass thickness correction: t1.1 mm BK-7
Working distance (through glass): 20.35 mm
Working distance (in air): 19.98 mm
Numerical Aperture (N.A.): 0.4
Corrected wavelength range: 480–1800 nm
Resolving power: 0.7 µm
Depth of focus: 1.7 µm
Field of view (ø24 mm eyepiece): ø1.2 mm
Field of view (1/2” camera chip): 0.24 × 0.32 mm
Spectral range: Near-Infrared (NIR)
Observation mode: Brightfield
Glass compensation: Yes
Laser applications: Yes
Mass: 305 g
