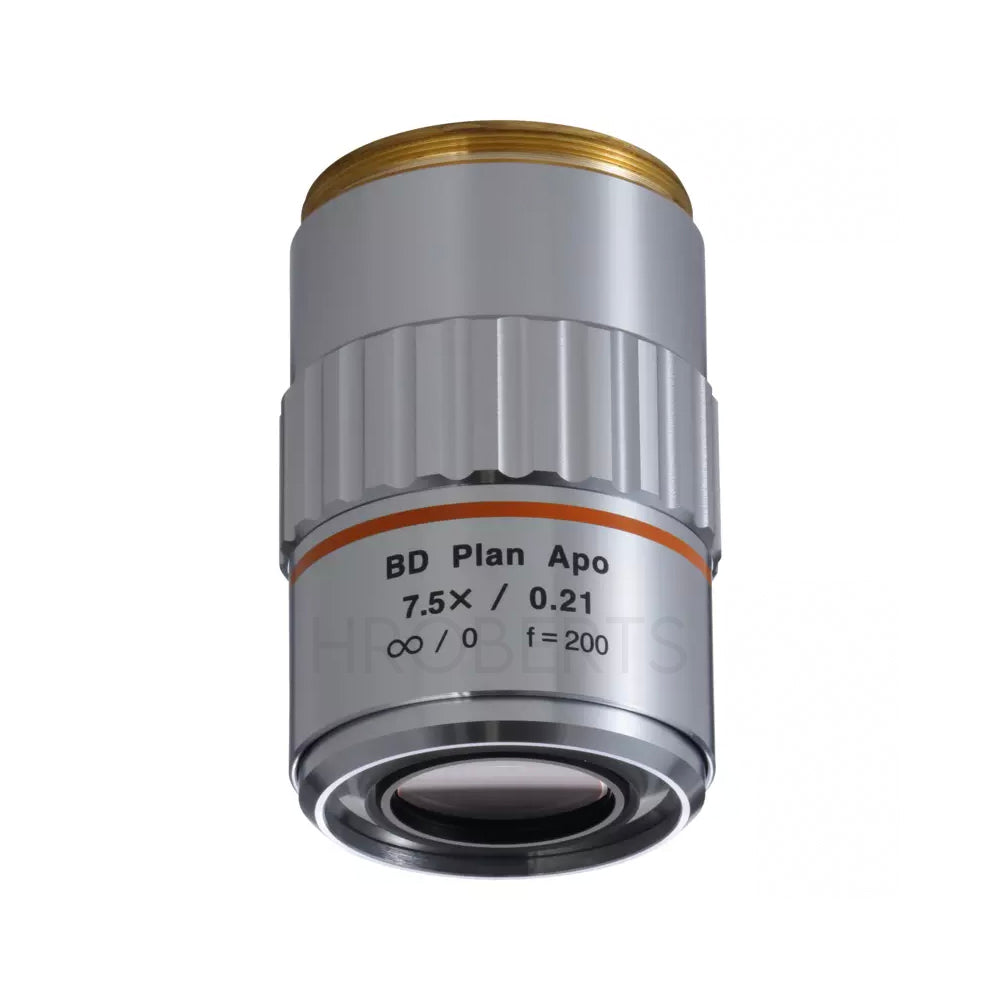

Mitutoyo 378-830-7 BD Plan Apo 7.5X Objective for bright/dark-field observation in visible range
SKU:Code: 378-830-7
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Objective Lens
- mass 350g
- magnification 7.5x
- working distance 34mm
- numerical aperture 0.21
- working distance 34mm
- focal length 26.67mm
- resolving power (Microns) 1.3
- focal depth (Microns) 6.2
- view field 1 3.6mm Dia
- view field 2 0.64x0.85mm
The BD Plan Apo 7.5X is a high-quality plan apochromat objective designed for both bright field and dark field inspection. It is particularly suited for detecting surface defects such as scratches, concavity, convexity, and fine irregularities, making it ideal for precision surface analysis.
With an infinity-corrected optical design and correction across the visible wavelength range (436–656 nm), this objective delivers sharp, high-contrast imaging in both bright and dark field modes. The long 34 mm working distance provides excellent clearance, enabling inspection of larger components or uneven surfaces with ease.
Designed for use with MF-U and Hyper MF-U microscope systems, the BD Plan Apo 7.5X offers reliable performance for industrial and laboratory inspection tasks.
Key Features
Suitable for Bright Field and Dark Field inspection
Ideal for detecting scratches, concavity, and convexity on surfaces
High-quality Plan Apochromat optical design
Infinity corrected
Long working distance design
Optimised for visible wavelength range (436–656 nm)
Specifications
Model: BD Plan Apo 7.5X
Magnification: 7.5x
Working distance (in air): 34 mm
Numerical Aperture (N.A.): 0.21
Corrected wavelength range: 436–656 nm
Resolving power: 1.3 µm
Depth of field: 6.2 µm
Field of view (ø24 mm eyepiece): ø3.6 mm
Field of view (1/2” camera chip): 0.64 × 0.85 mm
Spectral range: VIS
Observation mode: Brightfield / Darkfield
Glass compensation: No
Laser applications: No
Mass: 350 g
