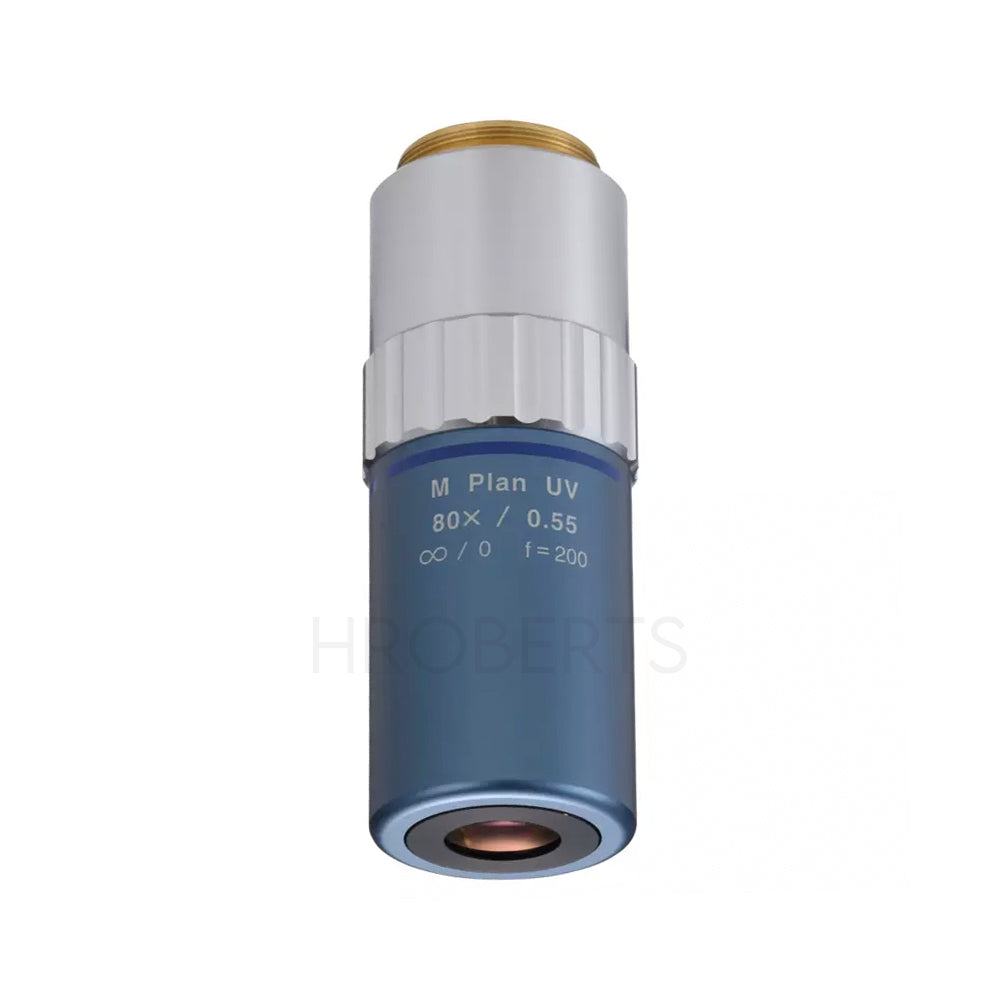

Mitutoyo 378-839-5 M Plan UV 80X Objective for bright-field observation in ultraviolet range
SKU:Code: 378-839-5
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Objective Lens
- mass 380g
- magnification 80x
- working distance 10mm
- numerical aperture 0.55
- working distance 10mm
- focal length 2.5mm
- resolving power (Microns) 0.5
- focal depth (Microns) 0.9
- view field 1 0.3mm Dia
- view field 2 0.06x0.08mm
The M Plan UV 80X is a high-performance objective lens designed for bright field inspection and laser applications requiring ultraviolet capability. Optimised for both 266 nm (UV) and 550 nm (visible) wavelengths, this objective delivers excellent imaging performance while providing high transmission in the ultraviolet range.
With a long working distance of 10 mm, the lens offers practical clearance at high magnification, making it well suited for precision inspection and UV laser processing observation. Its high-quality plan optical design ensures flat-field imaging and consistent clarity across the field of view.
The infinity-corrected optical system provides reliable integration into compatible microscope platforms, including VMU and FS-70 systems.
Key Features
Suitable for bright field inspection and laser applications
Optimised for 266 nm (UV) and 550 nm (visible) wavelengths
High transmission in the ultraviolet range
Long working distance design
High-quality plan optical design
Infinity corrected
Specifications
Model: M Plan UV 80X
Magnification: 80x
Working distance (in air): 10 mm
Numerical Aperture (N.A.): 0.55
Corrected wavelengths: 266 nm and 550 nm
Resolving power: 0.5 µm
Depth of focus: 0.9 µm
Field of view (ø24 mm eyepiece): ø0.3 mm
Field of view (1/2” camera chip): 0.06 × 0.08 mm

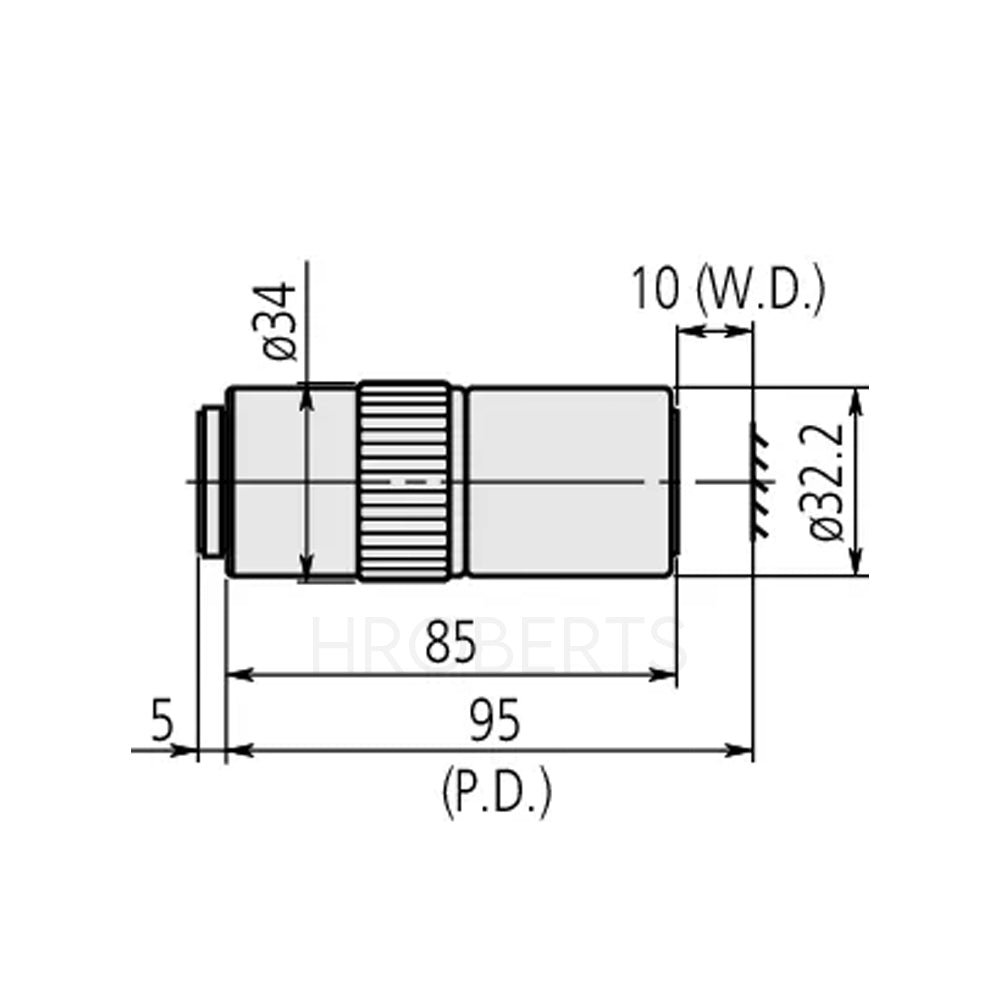

Parfocal distance (P.D.): 95 mm
Spectral range: UV
Observation mode: Brightfield
Glass compensation: No
Laser applications: Yes
Mass: 380 g
