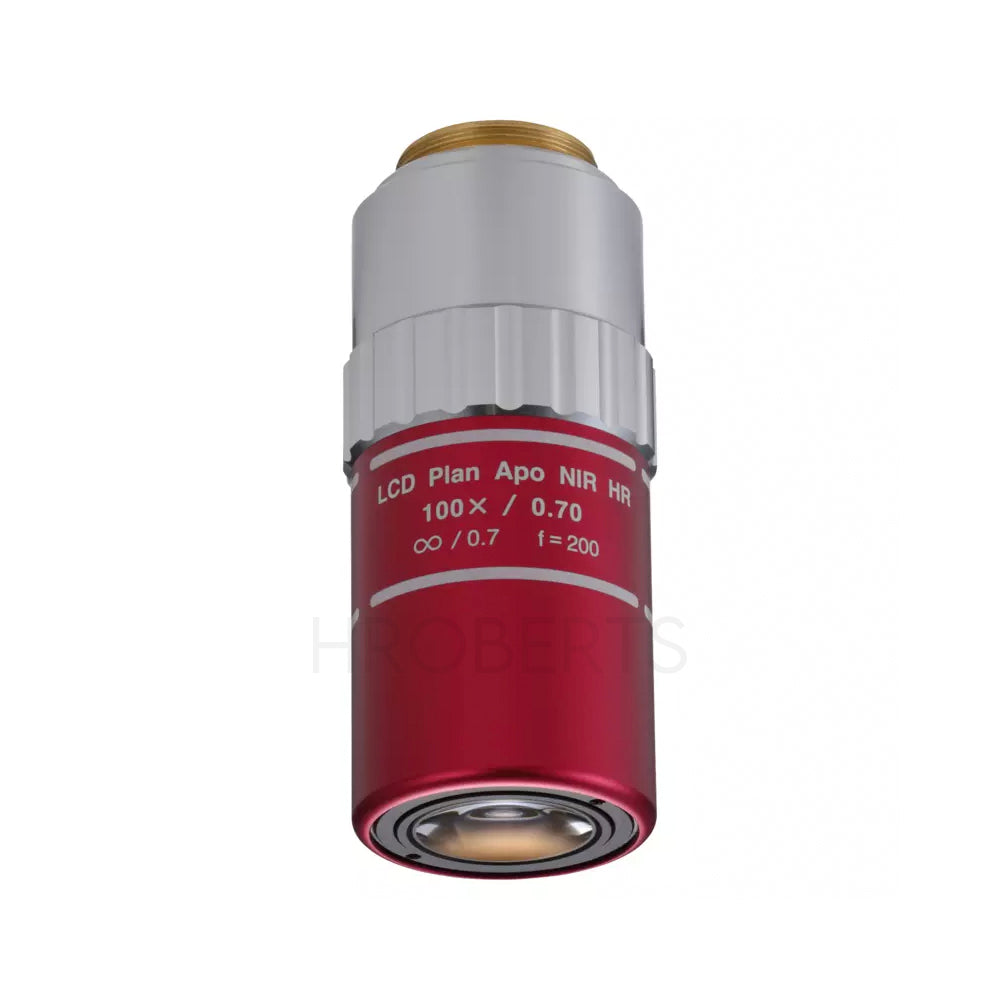

Mitutoyo 378-870-15 LCD Plan Apo NIR HR 100X(t0.7) High resolution objective for bright-field observation in near-infrared range with cover glass compensation
SKU:Code: 378-870-15
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Objective Lens
- mass 490g
- magnification 100x
- working distance 9.87mm
- numerical aperture 0.7
- working distance 9.87mm
- focal length 2mm
- resolving power (Microns) 0.4
- focal depth (Microns) 0.7
- view field 1 0.24mm Dia
- view field 2 0.05x0.06mm
The LCD Plan Apo NIR HR 100X (t0.7) is a high-performance plan apochromat objective designed for bright field inspection and laser-based repair applications through 0.7 mm LCD cover glass (BK-7). Engineered for advanced imaging tasks, it provides wavelength correction from the visible spectrum up to near-infrared (480–1800 nm), making it ideal for NIR inspection and laser processing environments.
As a High Resolution (HR) model, this objective delivers exceptional resolving performance with a high numerical aperture of 0.7 and a resolving power of 0.4 µm. Its dedicated LCD glass thickness compensation ensures optimal image quality when imaging through specified substrate materials.
With a working distance of 10.11 mm through 0.7 mm glass, the lens maintains practical clearance while providing sharp, high-contrast imaging. The infinity-corrected plan apochromat design ensures flat-field performance and excellent chromatic correction across the extended visible-to-NIR wavelength range.
Key Features
Suitable for bright field inspection and laser-based repair applications
Designed for use through 0.7 mm LCD cover glass (BK-7)
High-quality Plan Apochromat optical design
Wavelength correction from 480–1800 nm (Visible to Near-Infrared)
High transmission in the NIR range
High Resolution (HR) type
Glass thickness compensated
Infinity corrected
Specifications
Model: LCD Plan Apo NIR HR 100X (t0.7)
Magnification: 100x
Glass thickness correction: t0.7 mm BK-7

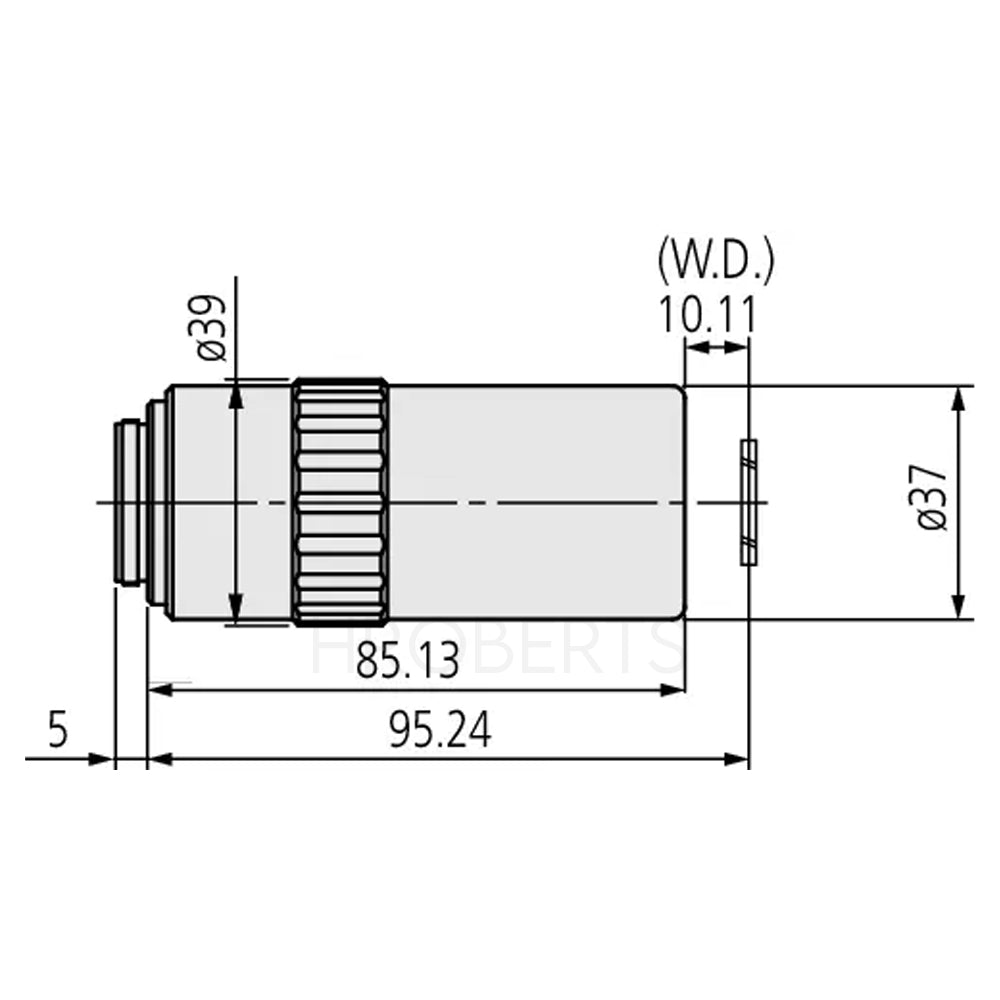

Working distance (through glass): 10.11 mm
Working distance (in air): 9.87 mm
Numerical Aperture (N.A.): 0.7
Corrected wavelength range: 480–1800 nm
Resolving power: 0.4 µm
Depth of focus: 0.6 µm
Field of view (ø24 mm eyepiece): ø0.24 mm
Field of view (1/2” camera chip): 0.05 × 0.06 mm
Spectral range: Near-Infrared (NIR)
Observation mode: Brightfield
Glass compensation: Yes
High Resolution: Yes
Laser applications: Yes
Mass: 490 g
