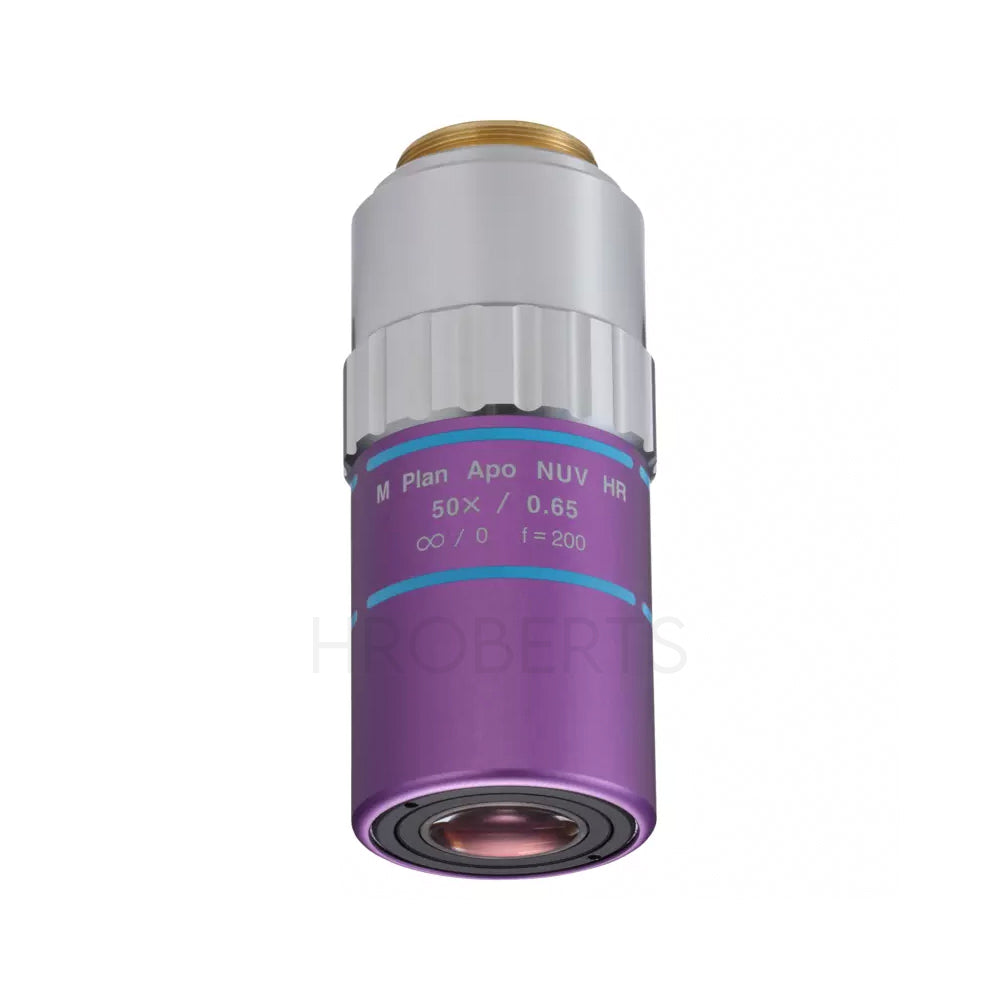

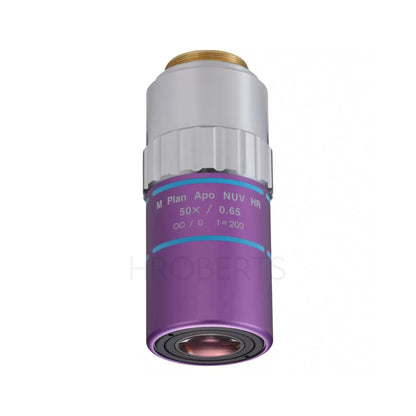

Mitutoyo 378-888-6 M Plan Apo NUV HR 50X High resolution objective for bright-field observation in near ultraviolett range

The M Plan Apo NUV HR 50X is a premium plan apochromat objective engineered for bright field inspection and laser applications requiring high resolving performance in the near-ultraviolet range. With wavelength correction from the visible spectrum down to 355 nm (Near-UV), it is ideally suited for advanced inspection and laser process monitoring applications.

As a High Resolution (HR) model, this objective delivers exceptional optical performance with a high numerical aperture of 0.65 and a resolving power of 0.42 µm, ensuring sharp detail and strong contrast at high magnification. Its long 10 mm working distance provides practical clearance while maintaining outstanding image quality.

The infinity-corrected plan apochromat design ensures flat-field imaging and excellent chromatic correction across the extended wavelength range. Compatible with VMU and FS-70 microscope systems, the M Plan Apo NUV HR 50X is an ideal solution for precision inspection and demanding near-UV laser applications.

Key Features

Suitable for bright field inspection and laser applications

Wavelength correction from 355–620 nm (Visible to Near-UV)

High-quality Plan Apochromat optical design

High Resolution (HR) / High Power type

Long working distance design

Infinity corrected

Specifications

Model: M Plan Apo NUV HR 50X

Magnification: 50x

Working distance (in air): 10 mm

Numerical Aperture (N.A.): 0.65

Corrected wavelength range: 355–620 nm

Resolving power: 0.42 µm

Depth of focus: 0.65 µm

Field of view (ø24 mm eyepiece): ø0.48 mm

Field of view (1/2” camera chip): 0.1 × 0.13 mm

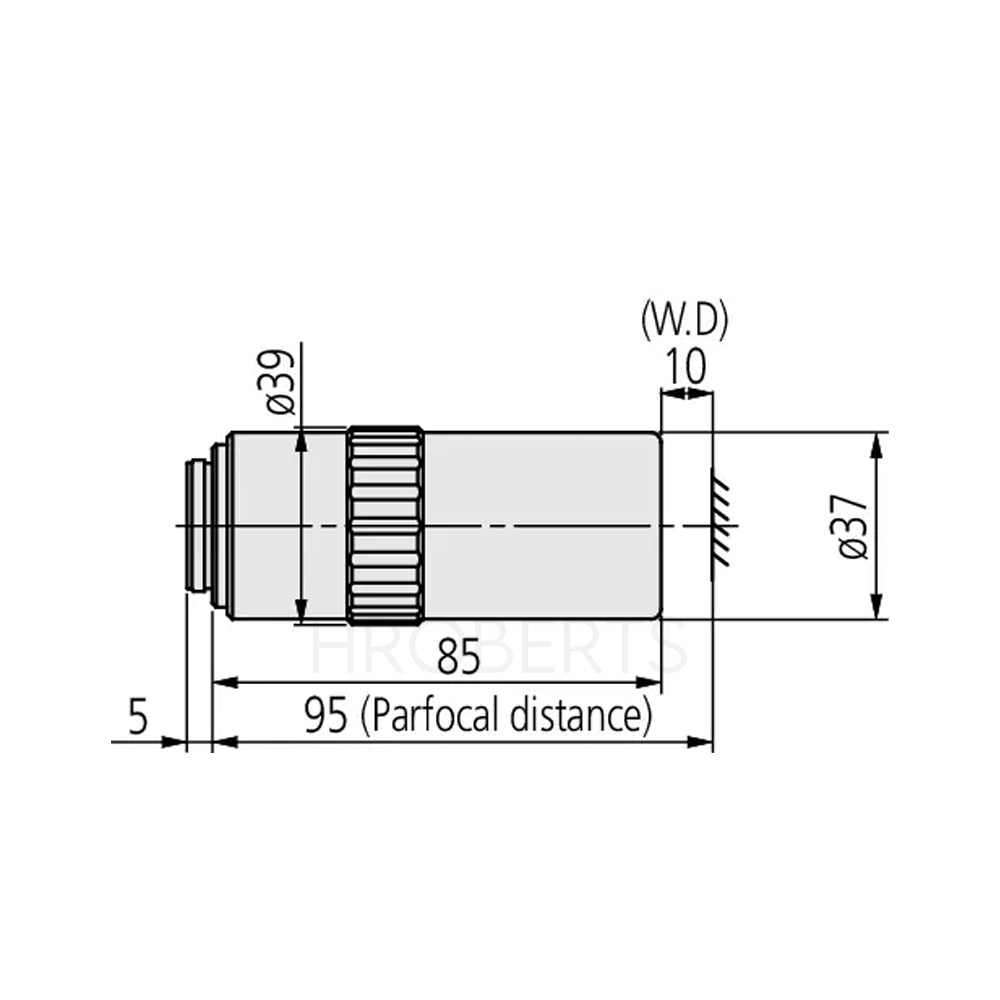

Parfocal distance (P.D.): 95 mm

Spectral range: Near-UV (NUV)

Observation mode: Brightfield

Glass compensation: No

High Resolution: Yes

Laser applications: Yes

Mass: 550 g
