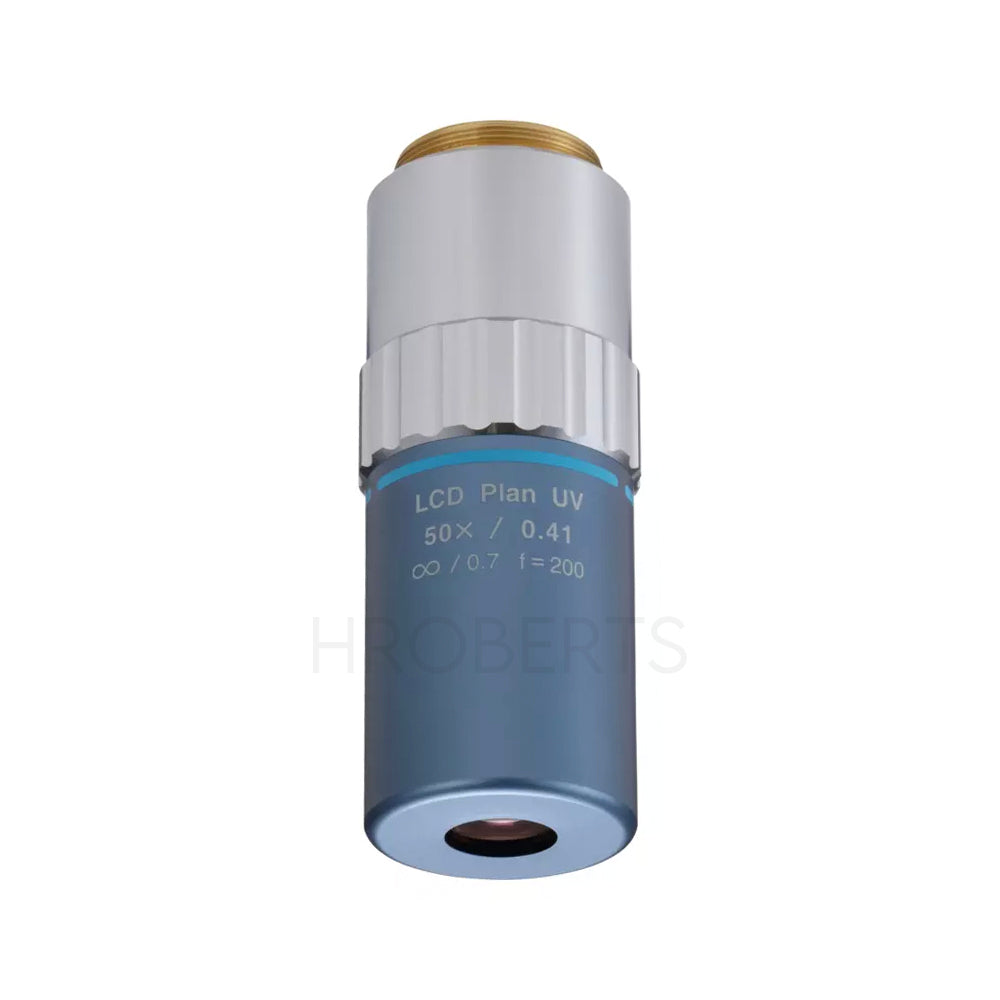

Mitutoyo 378-893-8 LCD Plan UV 50X(t0.7) Objective for bright-field observation in ultraviolet range with cover glass compensation

The LCD Plan UV 50X (t0.7) is a precision objective lens designed for bright field inspection and laser applications through 0.7 mm LCD (SiO₂) cover glass. Engineered with a high-quality plan optical design, this objective is specifically corrected for both ultraviolet (266 nm) and visible (550 nm) wavelengths, making it ideal for advanced inspection and UV-based applications.

With a long working distance of 12.6 mm through 0.7 mm glass, the lens enables stable and accurate imaging while maintaining excellent clearance. Its infinity-corrected design and dedicated glass thickness compensation ensure optimal performance when imaging through LCD substrates or similar materials.

Compatible with VMU / FS-70 microscope systems, the LCD Plan UV 50X is well suited for precision inspection, laser processing observation, and UV-sensitive applications.

Key Features

Suitable for bright field inspection and laser applications

Optimised for use through 0.7 mm LCD (SiO₂) cover glass

Long working distance design

High-quality plan optical design

Corrected for 266 nm (UV) and 550 nm (visible) wavelengths

Glass thickness compensated

Specifications

Model: LCD Plan UV 50X (t0.7)

Magnification: 50x

Glass thickness correction: t0.7 mm SiO₂

Working distance (through glass): 12.6 mm

Working distance (in air): 12.38 mm

Numerical Aperture (N.A.): 0.41

Infinity corrected: Yes

Resolving power: 0.7 µm

Depth of focus: 1.6 µm

Field of view (ø24 mm eyepiece): ø0.48 mm

Field of view (1/2” camera chip): 0.1 × 0.13 mm

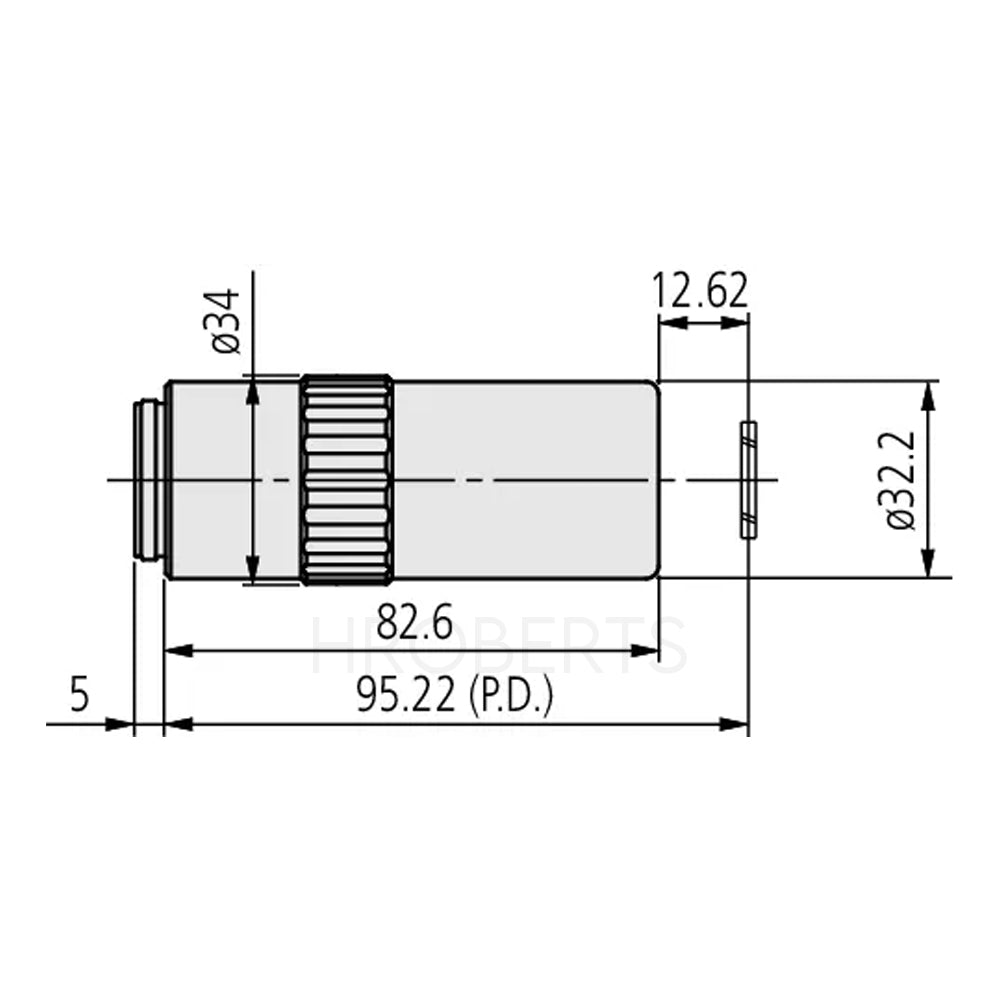

Parfocal distance (P.D.): 95 mm

Spectral range: UV

Observation mode: Brightfield

Glass compensation: Yes

Laser applications: Yes

Mass: 400 g
