Mitutoyo

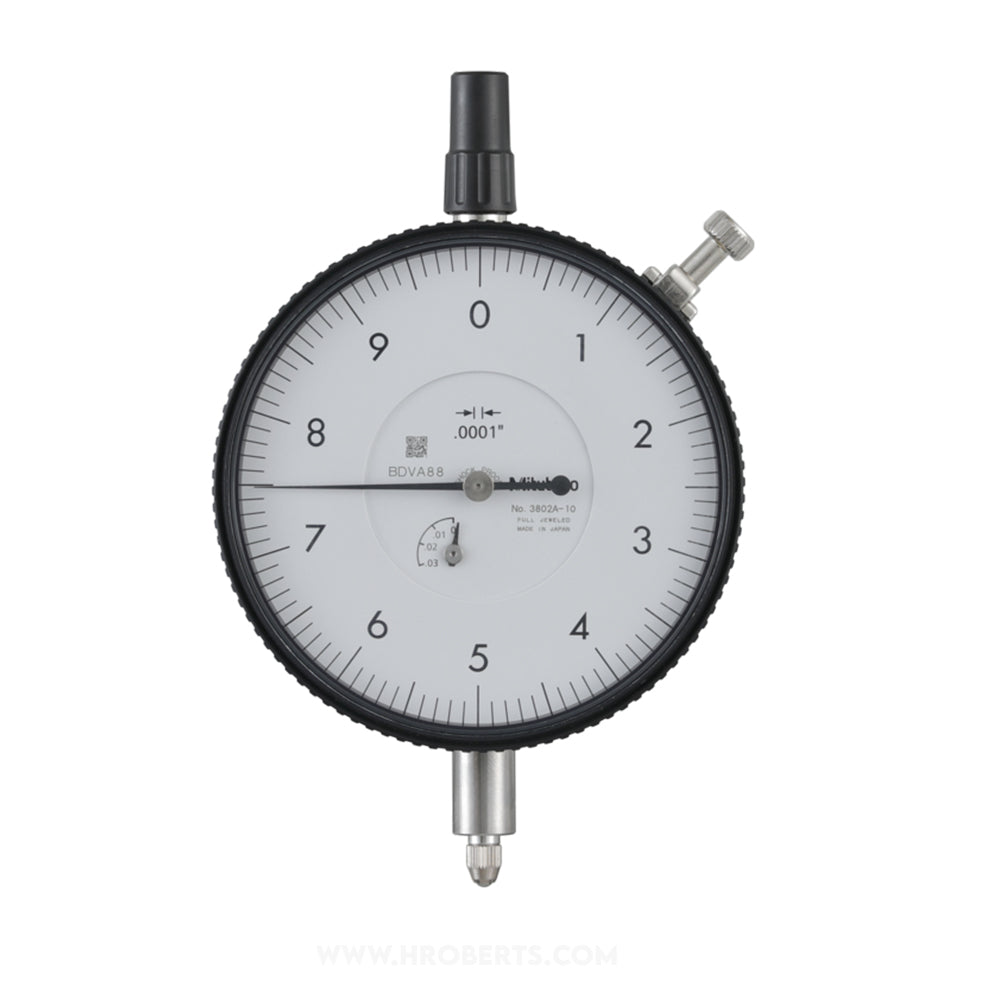

3802A-10 Dial Indicator, Graduation 0.0001", Range 0.025", Scale 0-10, Bezel Diameter 3.07"

SKU:Code: 3802A-10

Sale Sold out Regular price £140.25
Save: 25% Sold out Sale price £140.25 Regular price £187.00
Excl. VAT
Dial indicator with a large-diameter dial face for easy reading.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Dial Indicator
  • range 0.025"
  • range rev 0.01"
  • display type Non-Digital
  • graduations 0.0001"
  • bezel dia 3.07"
  • measuring force 2.0 N or Less
  • measuring units Imperial
  • stem dia 0.375"
  • remarks Dial Gauge Series 3
  • scale 0-10
  • contact point thread 4-48UNF
  • back Centre Lug
description

The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The bezel clamp 21RZA065, lifting lever and Limit Hands ( 2 pcs ) 21AZB195 which are all optional can be attached to either the right or left side. These parts can be easily installed and removed without tools.
