Mitutoyo

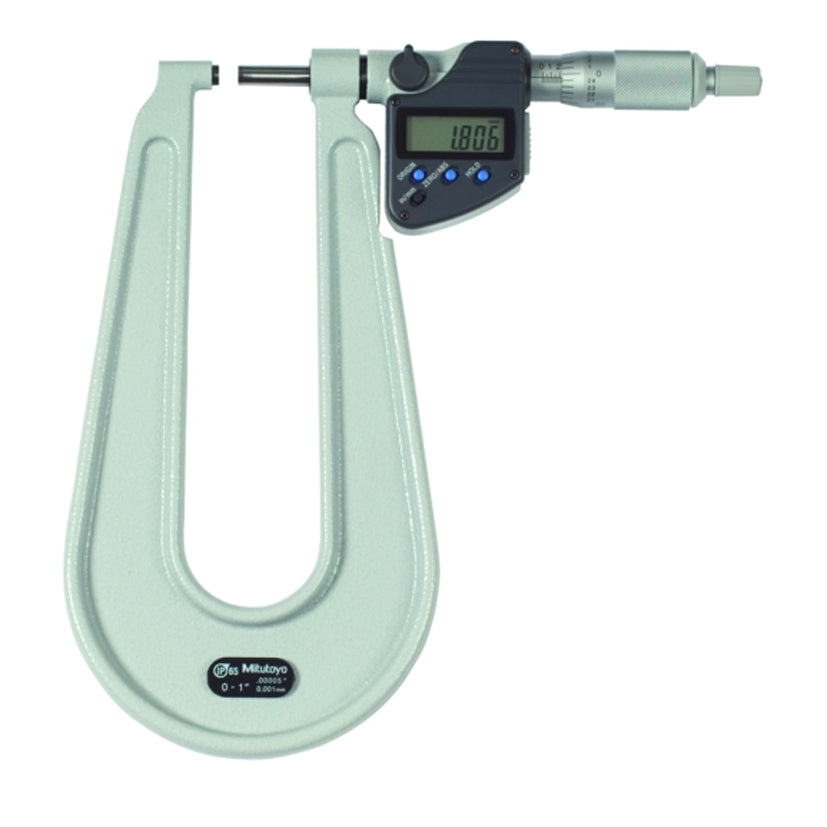

389-351-30 Digimatic Digital Sheet Metal Micrometer, Range 0-1" / 0-25.4mm, Resolution 0.00005" / 0.001mm, Throat Depth 150mm, Anvil Flat, Spindle Flat, IP65 with SPC Data Output

SKU:Code: 389-351-30

Sale Sold out Regular price £432.00
Save: 25% Sold out Sale price £432.00 Regular price £576.00
Excl. VAT
The large throat depth makes this micrometer ideal for measuring the thickness of sheet metal at a considerable distance from the edge.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Sheet Metal
  • range 0-1" / 0-25.4mm
  • display type Digital
  • resolution 0.00005" / 0.001mm
  • accuracy ±0.0002" (±4 μm)
  • data output Yes
  • flatness 0.000024" (0.6 μm)
  • ip rating IP65
  • measuring units Imperial / Metric
  • throat depth 6" (150 mm)
  • hold button Yes
  • zero setting Yes
  • parallelism 0.00012" (3 μm)
description

This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.
