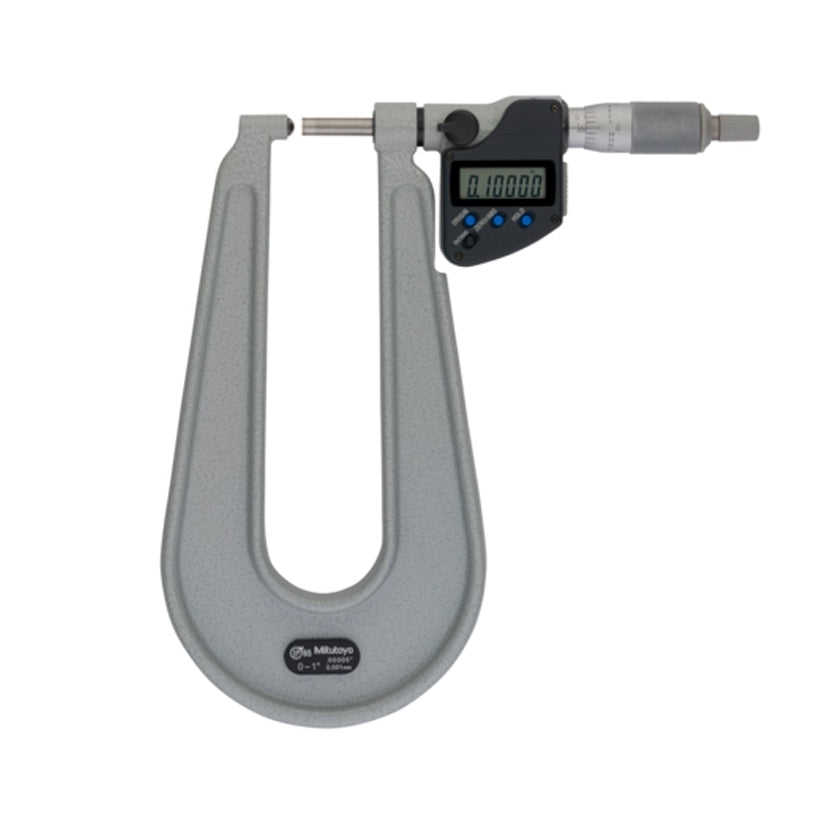

![Mitutoyo 389-361-30 Digimatic Digital Sheet Metal Micrometer, Range 0-1" / 0-25.4mm, Resolution 0.00005" / 0.001mm, Throat Depth 150mm, Anvil Spherical, Spindle Flat, IP65 with SPC Data Output](http://www.hroberts-di.com/cdn/shop/files/mitutoyo-536-148-inside-point-jaw-caliper-70-450mm-p240-19783_medium_5af4f70c-621a-49a0-a702-92e0ba1bd776.jpg?v=1710504590&width=1445)
Specification
Specification
- type Sheet Metal
- range 0-1" / 0-25.4mm
- display type Digital
- resolution 0.00005" / 0.001mm
- accuracy ±0.0002" (±4 μm)
- data output Yes
- flatness 0.000024" (0.6 μm)
- ip rating IP65
- measuring units Imperial / Metric
- throat depth 6" (150 mm)
- hold button Yes
- zero setting Yes
- parallelism 0.00012" (3 μm)
description
description
This Digimatic Sheet Metal Micrometer is designed with a deep frame, for measuring the thickness of sheet material.
