Specification
Specification
- type Standard
- range 0.5-0.8" / 12.7-20.32mm
- display type Digital
- resolution 0.00005" / 0.001mm
- data output Yes
- ip rating IP65
- max measuring depth 84mm
- measuring units Imperial / Metric
- remarks 3-Point Contact
- measuring face Titanium-coated measuring pins
- bore gauge heads 2
- digital display units 1
- with rings Yes
- size rings included 0.65"
- blind bore measurement Yes
description
description

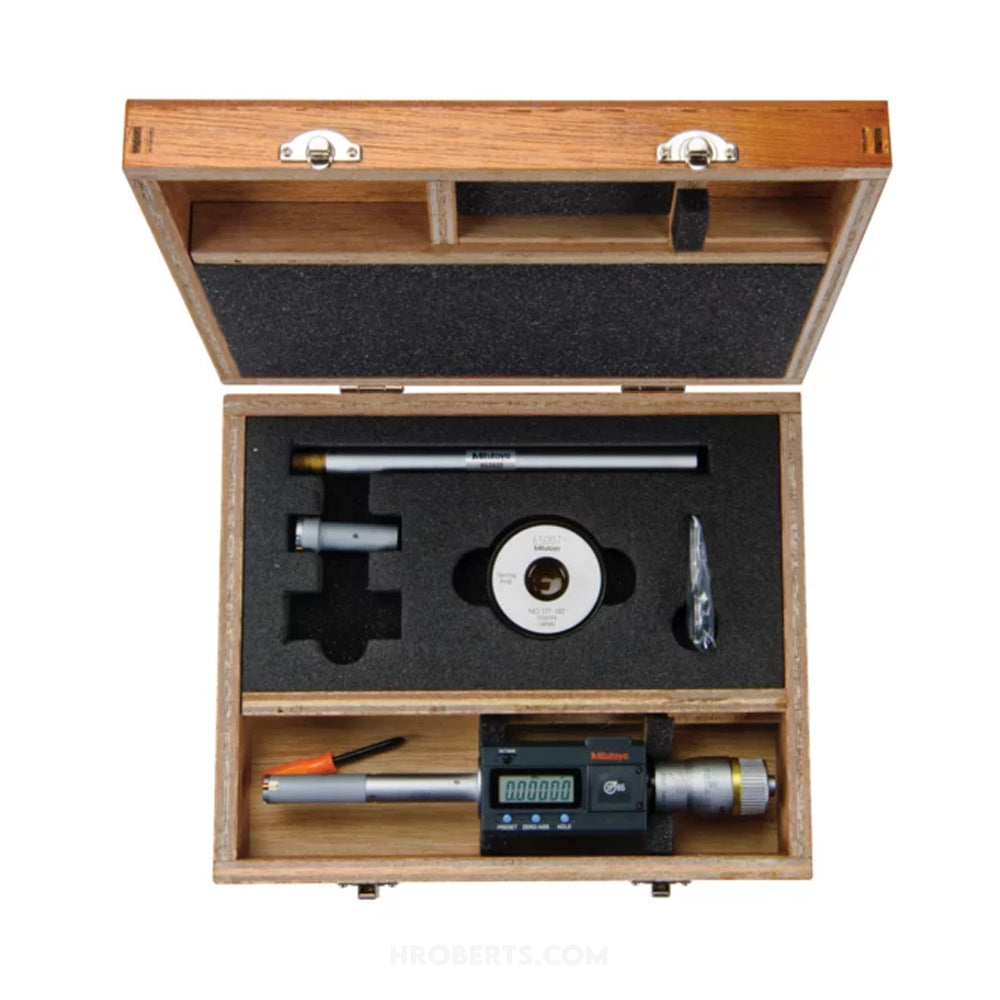

A water-resistant Mitutoyo bore gauge comprising a digital/analogue display unit and measuring head. Suitable for measuring to the bottom of blind holes. Titanium-coated contact faces for enhanced durability. Digimatic data output. A ratchet stop guarantees repeatable measurement. Zero-setting, Origin restoration, Data hold, 2-point preset, Function lock, inch/mm readout, Automatic power ON/OFF, Error alarm, Data output
