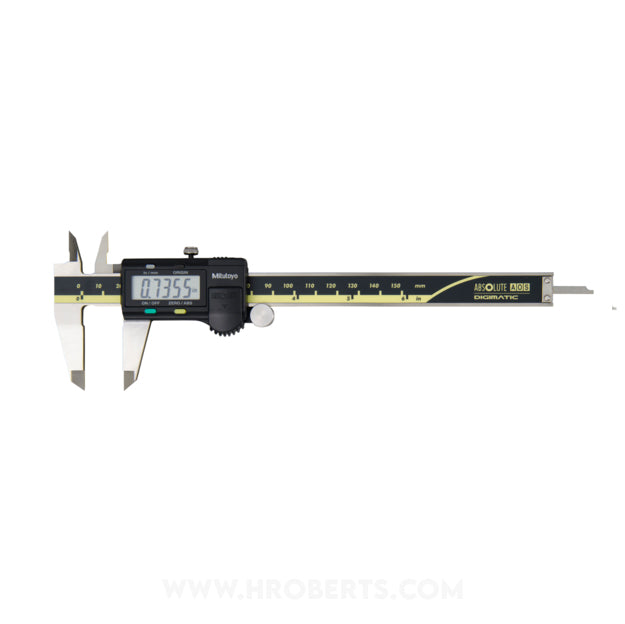

Mitutoyo 500-171-30 Digimatic Digital Caliper, Range 0 - 150mm / 0 - 6", Resolution 0.01mm / 0.0005", Absolute System and SPC Data Output
SKU:Code: 500-171-30
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Standard
- range 0-150mm / 0-6"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- measuring units Metric / Imperial
- depth bar Flat Blade
Mitutoyo 500-171-30 ABS Digital Caliper with Data Output – 150mm / 6"
The Mitutoyo 500-171-30 ABS Digital Caliper is a professional precision measuring tool designed for accurate inspection and seamless data collection. Featuring integrated data output, this caliper allows measured values to be transmitted directly to SPC systems, printers, or data processors, reducing manual recording errors and improving inspection efficiency.
Using Mitutoyo’s ABSOLUTE linear encoder technology, the caliper retains its origin position even when powered off, eliminating the need for repeated zeroing and ensuring consistent, reliable measurements throughout the working day.
Key Features
- ABSOLUTE linear encoder eliminates the need for re-zeroing
- Integrated data output for SPC and quality control systems
- Compatible with Mitutoyo data cables and wireless transmitters
- ZERO/ABS function for comparative and absolute measurements
- Measurement range of 0–150mm (0–6")
- Accuracy of ±0.02mm with 0.01mm resolution
- Large, clear LCD display for fast, easy readings
- Smooth slider movement for controlled, comfortable operation
- Measures outside, inside, depth, and step dimensions
Applications
- Quality control and inspection
- Statistical process control (SPC)
- Precision engineering and manufacturing
- Production measurement and reporting
Why Choose the Mitutoyo 500-171-30
The Mitutoyo 500-171-30 is ideal for professionals who require accurate measurement combined with efficient data capture. Its proven ABS technology, reliable accuracy, and data output capability make it a trusted solution for modern inspection and quality control environments.
