Mitutoyo 500-173-30 Digimatic Digital Caliper, Range 0 - 300mm / 0 - 12", Resolution 0.01mm / 0.0005", Absolute System and SPC Data Output
SKU:Code: 500-173-30
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- brand Mitutoyo
- type Standard
- range 0-300mm / 0-12"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- measuring units Metric / Imperial
- depth bar Flat Blade

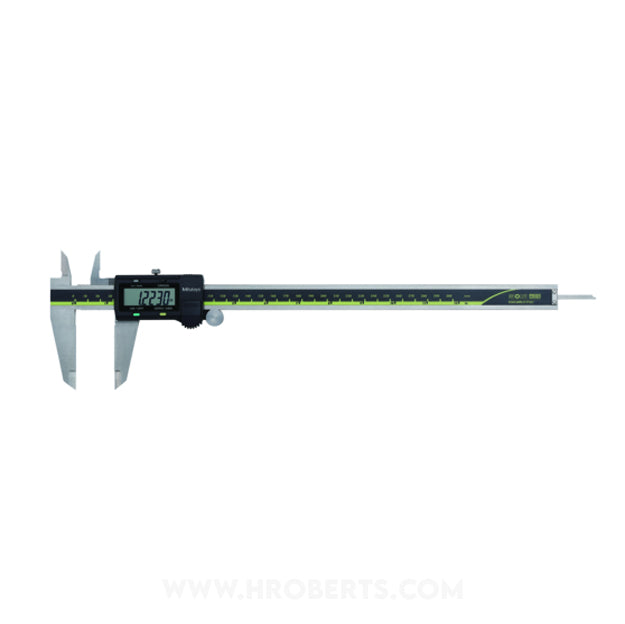

Mitutoyo 500-173-30 Digimatic Digital Caliper – 0-300mm / 0-12", 0.01mm / 0.0005" Resolution with SPC Data Output
The Mitutoyo 500-173-30 Digimatic Digital Caliper is a precision measurement tool engineered for accurate dimensional measurement and seamless data capture. With a wide 0-300 mm (0-12") measuring range and built-in SPC data output capability, this caliper is ideal for quality control, inspection, and process monitoring tasks where measurement data must be recorded or analysed.
Featuring Mitutoyo’s ABSOLUTE linear encoder technology, the caliper retains its origin position even when powered off, eliminating the need for repeated zero setting and allowing immediate measurement when switched on. The large LCD display and smooth slider movement ensure easy readability and comfortable operation.
Key Features
- ABSOLUTE linear encoder eliminates the need for origin resetting
- Integrated SPC data output for direct capture of measurement values
- Measuring range of 0-300mm / 0-12"
- Resolution of 0.01mm / 0.0005"
- Large, clear LCD display for fast, reliable readings
- Smooth slider movement for controlled, comfortable operation
- Measures outside, inside, depth, and step dimensions
- Long battery life for extended use
- Durable stainless steel construction
Applications
- Quality control and inspection
- Statistical process control (SPC)
- Precision engineering and manufacturing
- Toolrooms and workshop measurement tasks
Why Choose the Mitutoyo 500-173-30
The Mitutoyo 500-173-30 combines precise digital measurement with integrated data output, making it a practical and efficient choice for environments where measurement data needs to be recorded or analysed. Its trusted ABS technology, clear digital display, and robust construction make it a dependable tool for professional measurement tasks.
