Mitutoyo

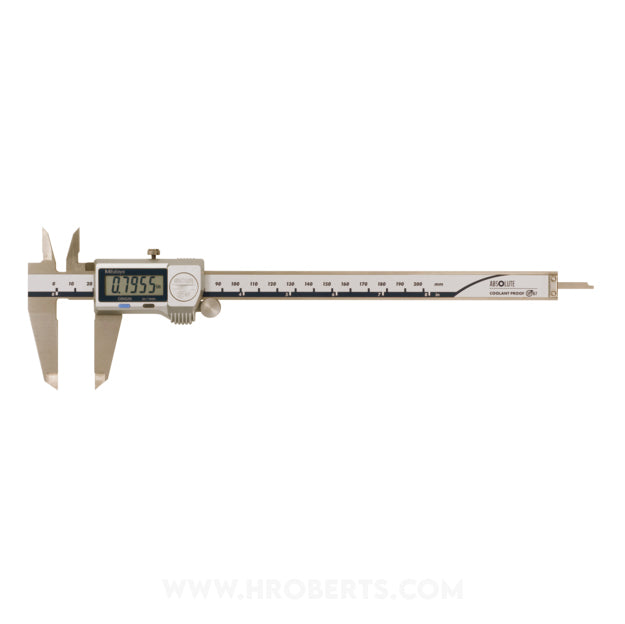

500-753-20 Digimatic Digital Coolant Proof Caliper, Range 0-200mm / 0-8", Resolution 0.01mm / 0.0005", Absolute System, IP67
SKU:Code: 500-753-20
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Standard
- range 0-200mm / 0-8"
- display type Digital
- resolution 0.01mm / 0.0005"
- ip rating IP67
- measuring units Metric / Imperial
- depth bar Flat Blade
Can be used in workshop conditions exposed to coolant, water, dust or oil. Other specifications and price are the same as the conventional products. 100% inspection by air leak test is performed to ensure quality and reliability. Large LCD characters make the display easy to read. Incorporates Mitutoyo's ABSOLUTE measurement system. No need to reset the origin. SPC data output models can be integrated into statistical process control and measurement systems. Can measure outside and inside dimensions, depth, and steps.The automatic power-on/off function shuts down the LCD display after 20 minutes inactivity, but the ABS scale unit origin is stored. Power is restored when the slider is moved. A convenient interface input tool is available so that measurement data can be converted to keyboard signals and input directly to commercial spreadsheet software.
